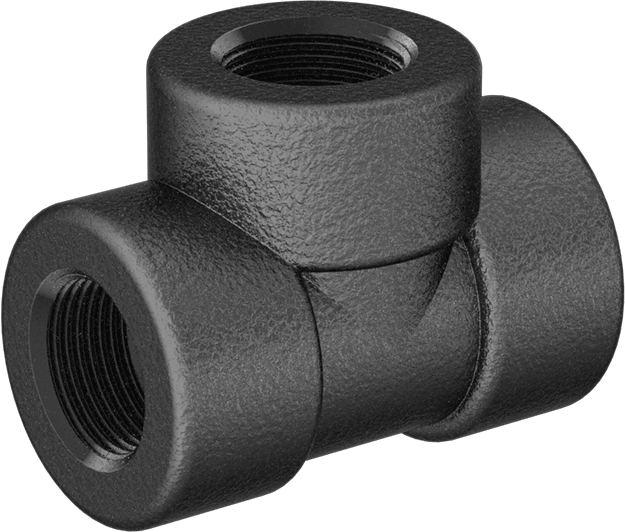

High-Pressure Steel Pipe Fitting
Tee Connector, 3/4 NPT Female
Pressure Rating | High Pressure |
Shape | Tee |
Fitting Type | Connector |
Fitting Connection | NPT Female |
Pipe Size | 3/4 |
Dash Size | 12 |
Pressure Class | 3000 |
Material | Zinc-Phosphate-Coated Steel |
Maximum Pressure @ Temperature | 3,000 psi @ 72° F |
Maximum Steam Pressure @ Temperature | 300 psi @ 360° F |
Connects To | Pipe |
Fabrication | Forged |
For Flange | |
Class | 1500 |
Material | Steel |
For Pipe Material | Steel |
For Pipe Schedule | 160 |
For Use With | Air, Hydraulic Fluid, Natural Gas, Oil, Steam, Water |
Specifications Met | ASME B1.20.1, ASME B16.11, ASTM A105 |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 730792.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
These fittings can stand up to high-pressure applications. Use them in noncorrosive environments.
Note: The maximum pressure listed for Class 3000 fittings is for conditions where there are no sudden changes in pressure or velocity. Please refer to ASME B16.11 to determine the specific maximum operating pressure for your application.
Zinc-Phosphate-Coated Steel—A phosphate coating offers some corrosion resistance, but these fittings aren't intended for corrosive environments.

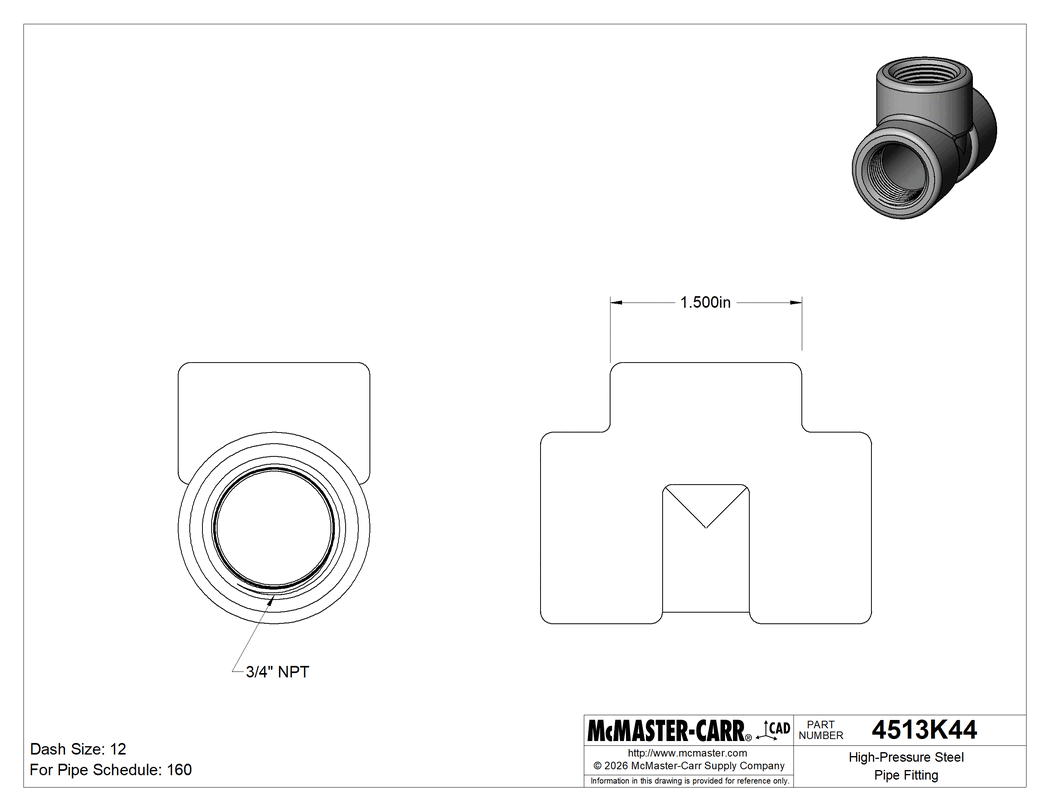

The information in this 3-D model is provided for reference only.
