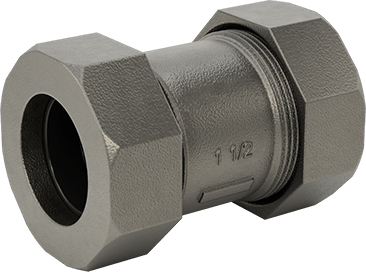

Clamp-on Fitting
Medium-Pressure, Black Iron, for 1.9" Pipe OD
For Use With | Water |
Shape | Straight |
Type | Connector |
Connection Type | Pipe |
For Pipe OD | 1.9" |
For Pipe Size | 1 1/2 |
Length | 4 15/16" |
Pipe Connection Type | Compression |
Gender | Female |
Maximum Pressure | 125 psi @ 72° F |
Maximum Vacuum | Not Rated |
Temperature Range | -20° to 180° F |
Color | Black |
Material | Iron |
Gasket Material | Buna-N Rubber |
For Pipe Material | Steel, PVC Plastic |
Specifications Met | ASTM A197 |
RoHS | Not Compliant |
REACH | Not Compliant |
DFARS | Specialty Metals COTS-Exempt |
Country of Origin | Peoples Republic of China |
Schedule B | 730719.9090 |
ECCN | EAR99 |
Create quick, liquid-tight connections in medium-pressure applications with these connectors. They join rigid pipe of the same or different materials. Connectors have a gasket that permits moderate movement and misalignment of pipe ends.
Compression connectors slide onto pipe and hand tighten with the end nuts. You may need to tighten over time. These connectors have a Buna-N rubber gasket that resists oil, as well as mild chemicals and water. Replace the gasket when it’s worn out, or swap it out for a gasket with different properties.
Black iron connectors have fair corrosion resistance.

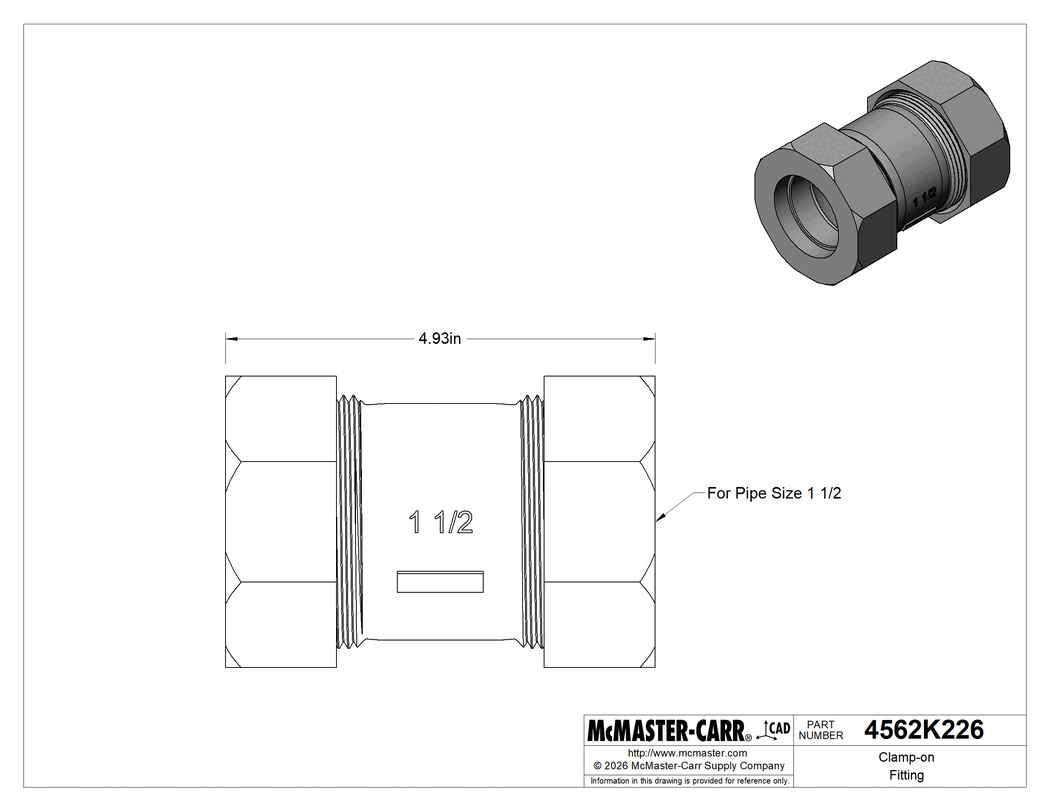

The information in this 3-D model is provided for reference only.
