Anodized Architectural 6063 Aluminum Round Tube
0.115" Wall Thickness, 1/2" OD, 6 Feet Long
Tolerance Rating | Standard |
Anodize Type | Decorative |
Wall Thickness | 0.115" |
Wall Thickness Tolerance | -0.011" to 0.011" |
Length | 6 ft. |
Length Tolerance | -1/2" to 1/2" |
OD | 1/2" |
OD Minimum Tolerance | Not Rated |
OD Maximum Tolerance | Not Rated |
ID | 0.270" |
ID Minimum Tolerance | Not Rated |
ID Maximum Tolerance | Not Rated |
Fabrication | Extruded |
Temper Designation | T5 |
Specifications Met | ASTM B221 |
Finish Color | Clear |
Appearance | Matte |
Application | Multipurpose, Architectural |
Certificate Form | Digital |
Certificate Type | Material Certificate with Traceable Lot Number |
Conductivity Percentage | 55% IACS |
Elongation | 11% |
Finish | Anodized |
Finish Thickness | 0.00008" |
Hardness | Brinell 55 |
Hardness Rating | Soft |
Heat Treatable | Yes |
Heat Treatment | Hardened |
Material | 6063 Aluminum |
Material Composition | |
Aluminum | 97.5% to 99.35% |
Chromium | 0% to 0.1% |
Copper | 0% to 0.1% |
Iron | 0% to 0.35% |
Magnesium | 0.45% to 0.9% |
Manganese | 0% to 0.1% |
Other | 0% to 0.15% |
Silicon | 0.2% to 0.6% |
Titanium | 0% to 0.1% |
Zinc | 0% to 0.1% |
Performance | Adhesive Ready, Corrosion Resistant, Decorative, Heat Treatable, Highly Formable, Machinable, Paintable, Ultra Weldable, Ultra-Low Temperature, Wear Resistant |
Shape | Round Tube |
Straightness Tolerance | 0.010"/1 ft. |
Temperature | -320° F to 212° F |
Warning Message | Physical and mechanical properties are not guaranteed. They are intended only as a basis for comparison and not for design purposes. |
Yield Strength | 16,000 psi |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/14/2023, 235 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 760820.0090 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Additional Specifications |
Paint and adhesive apply smoothly to these tubes. They’re bonded with a thick coating (anodizing) for a uniform finish. This coating also resists scratches and boosts corrosion resistance.
Easy to bend, 6063 aluminum is often used for exterior railings, decorative trim, and door frames.

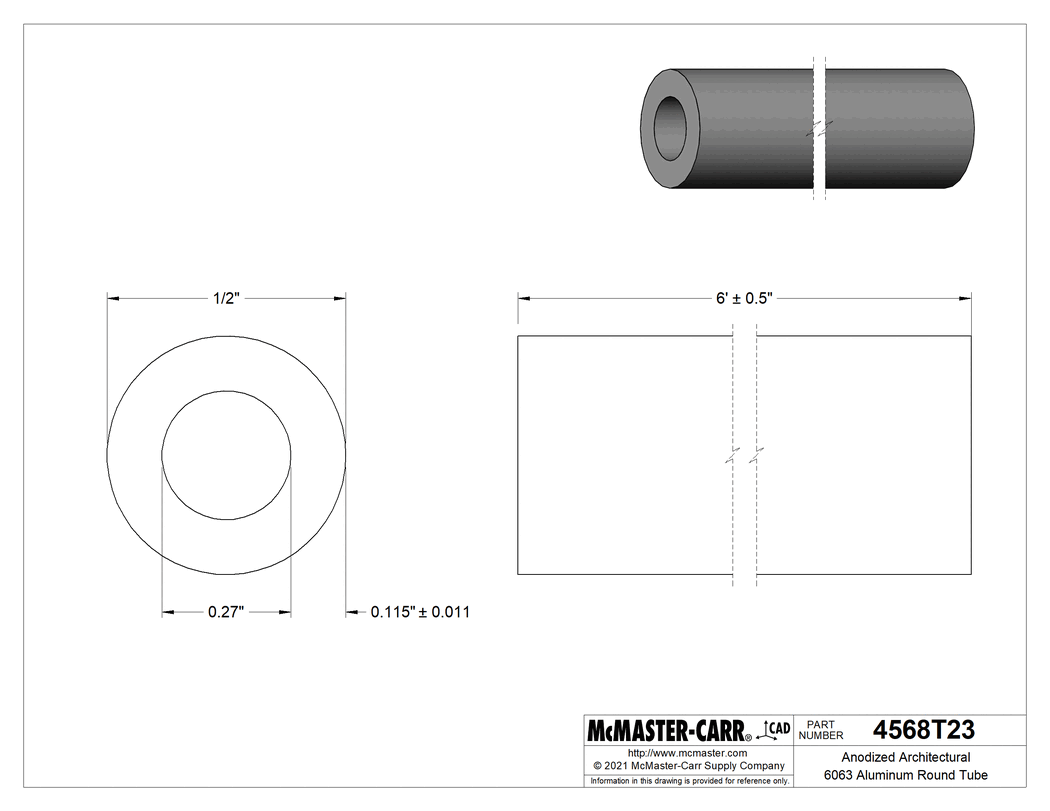

The information in this 3-D model is provided for reference only.
