    Quick-Set Pressure-Regulating Valve for Water

    Brass Body, 1 NPT Female Inlet x Outlet

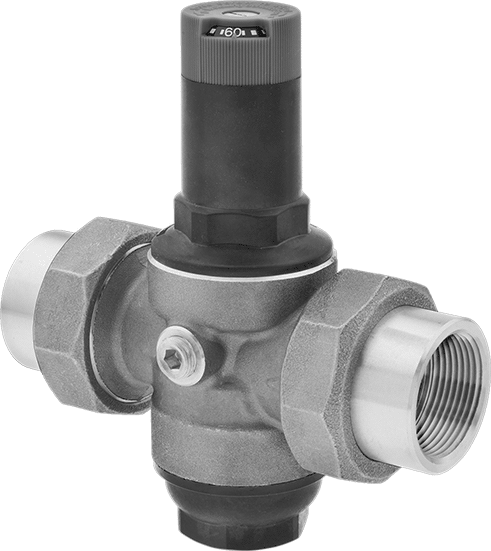

    Image of Product. Front orientation. Quick-Set Pressure-Regulating Valve for Water, Brass Body, 1 NPT Female Inlet x Outlet.

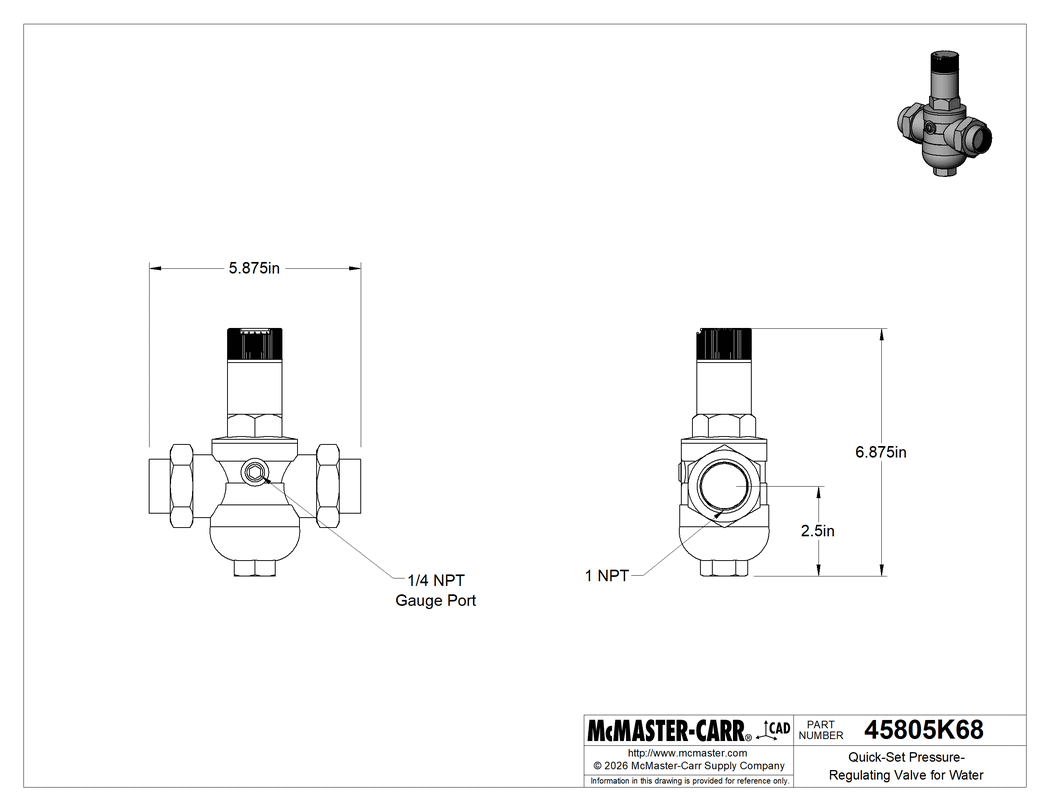

    Technical Drawing of Quick-Set Pressure-Regulating Valve for Water, Brass Body, 1 NPT Female Inlet x Outlet.

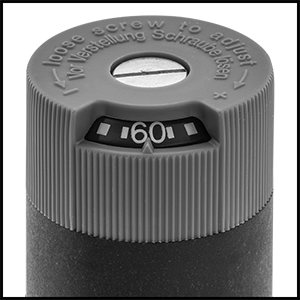

    Image of Attribute. Front orientation. ZoomedIn view. Contains Border. Quick-Set Pressure-Regulating Valve for Water, Brass Body, 1 NPT Female Inlet x Outlet.
    2-D PDF
    0000000 each
    45805K68
    In stock
    45805K68
    0000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Inlet

    Pipe Size

    1

    Location

    Side

    Connection Port

    Pipe

    Connection

    Threaded

    Thread Type

    NPT

    Gender

    Female

    Maximum Pressure

    250 psi

    Material

    Body

    Brass

    Seal

    EPDM

    Diaphragm

    EPDM

    Features

    Internal Strainer, Union Fittings

    Outlet

    Pipe Size

    1

    Location

    Side

    Connection Port

    Pipe

    Connection

    Threaded

    Thread Type

    NPT

    Gender

    Female

    Pressure Range

    25 psi to 90 psi

    Pressure Adjustment Method

    Dial

    Gauge Port

    Number of Ports

    2

    Pipe Size

    1/4

    Location

    Side

    Connection

    NPT Female

    End-to-End Length

    6 1/16"

    For Use With

    Water

    Temperature Range

    33° F to 140° F

    Certification

    CSA Certified

    Accuracy

    ±4%

    Actuation

    Pressure

    Flow Coefficient (Cv)

    30

    Performance

    Quick Set

    Pressure Range Adjustment Increment

    10 psi

    Shape

    Straight

    Valve

    Type

    Pressure Regulator

    Function

    Pressure Regulation

    Country of Origin

    Germany

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    848180.9015

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Change outlet pressure without using a gauge—turn the dial to adjust the outlet pressure in 5 or 10 psi increments. These valves automatically reduce a high, variable inlet pressure to a lower, stable outlet pressure. They also have an internal strainer to trap debris. Union fittings on both ends of the valves disassemble for easy valve installation and removal. All of these valves meet Canadian safety standards for pressure-reducing valves. Some also meet American and international plumbing safety and performance standards.

    Brass Body—Brass valves are durable and have a long service life. Their gauge ports let you attach a pressure gauge to measure the pressure flowing in and out of the valve.
