Thick-Wall Plastic Pipe Fitting for Water

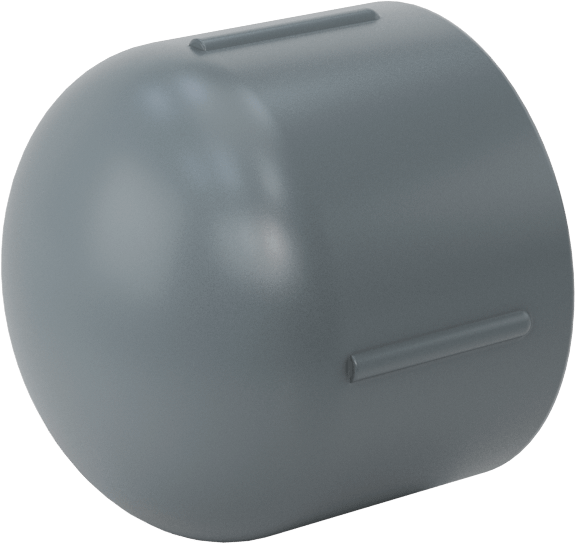

Cap, 1 NPT Female
For Use With | Drinking Water, Water |
Shape | Cap/Plug |
Type | Cap |
Schedule | 80 |
Connection Type | Pipe |
Connection Style | Threaded |
Thread Type | NPT |
Gender | Female |
Pipe Size | 1 |
Length | 1 19/32" |
Material | PVC Plastic |
Color | Dark Gray |
Maximum Pressure | Not Rated |
Maximum Vacuum | 26 in. of Hg @ 72° F |
Vacuum Rating | Standard |
Temperature Range | Not Rated to 140° F |
For Pipe Schedule | 80 |
For Pipe Material | PVC Plastic |
For Flange Class | 150 |
For Flange Material | PVC Plastic |
Environment | Food Industry |
Specifications Met | ASTM D1784, NSF/ANSI 61 |
RoHS | RoHS 3 (2015/863/EU) Compliant |
REACH | REACH (EC 1907/2006) (11/07/2024, 242 SVHC) Compliant |
DFARS | Specialty Metals COTS-Exempt |
Country of Origin | United States |
USMCA Qualifying | Yes |
Schedule B | 391740.0000 |
ECCN | EAR99 |
Connect these fittings to Schedule 80 pipe. With thicker, stronger walls than standard-wall fittings, they can handle heavy duty supply applications, such as water processing, wastewater treatment, and irrigation. Fittings are plastic for good corrosion resistance. They meet ASTM specifications and testing requirements for material quality.
Fittings for drinking water meet NSF/ANSI Standard 61.
To prevent leaks in threaded connections, apply a sealant to the male threads.
For plastic threads, apply a non-hardening, plastic-compatible sealant sealant. Tape or sealants with PTFE are not recommended for plastic-to-plastic connections.
Note: For fittings that are not rated for pressure, you can use the pressure rating of the plastic pipe as a reference. Threaded fittings are limited to 50% of the rated pressure of the pipe.
Warning: Never use plastic pipe fittings and pipe with compressed air or gas.

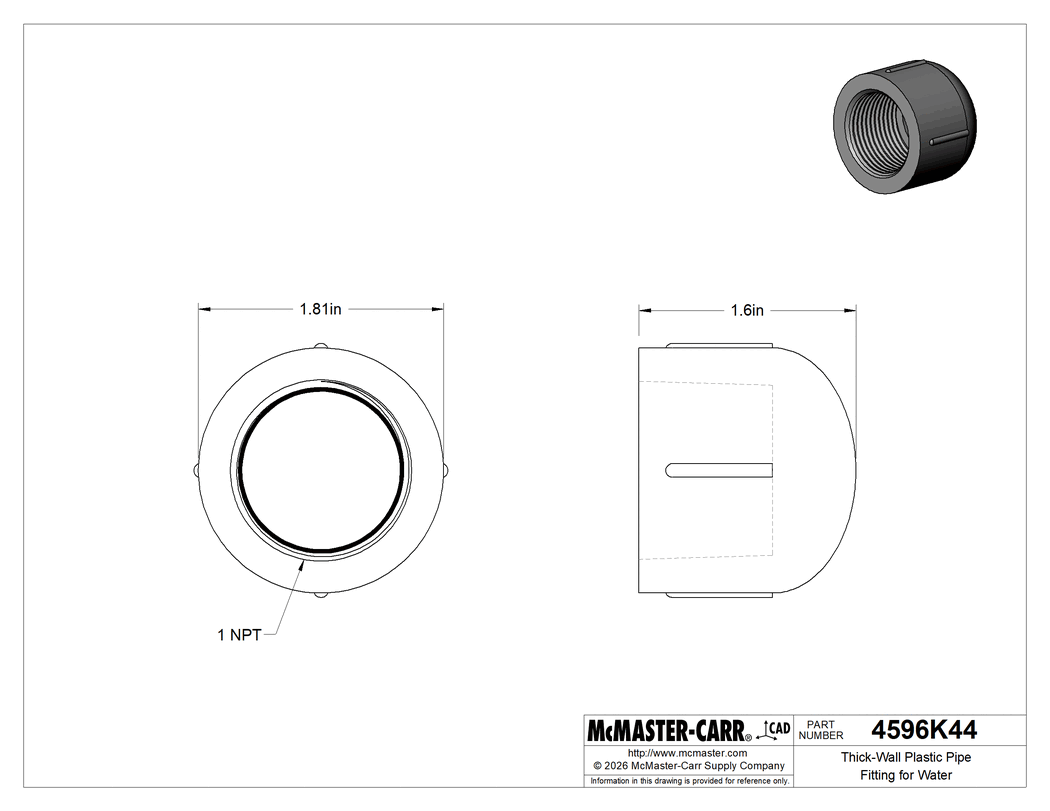

The information in this 3-D model is provided for reference only.
