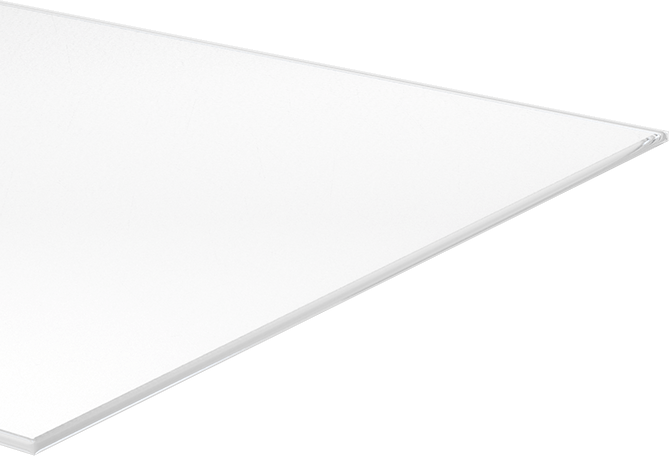

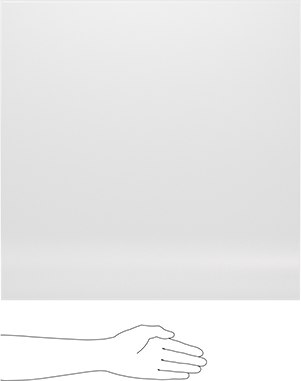

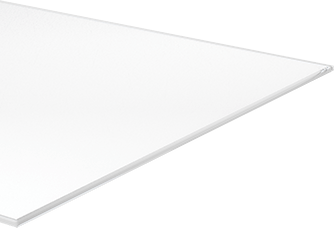

Clear High-Strength UV-Resistant Acrylic
24" x 24" x 1/4"
Thickness | 1/4" |
Thickness Tolerance | -0.025" to 0.025" |
Width | 24" |
Width Tolerance | -1/8" to 1/8" |
Length | 24" |
Length Tolerance | -1/8" to 1/8" |
Fabrication | Extruded |
Temperature | 32° F to 170° F |
Tensile Strength | 8,000 psi |
Impact Strength | 0.7 ft·lbf/in |
Clarity | Clear |
Color | Clear |
Flammability Rating | UL 94 HB |
Application | Multipurpose |
Backing Type | Plain |
Chemical Resistance | |
Excellent | Coolant, Kerosene, Mineral Oil, Sodium Hypochlorite (Bleach), Vegetable Oil, Water |
Moderate | Diesel Fuel, Fuel Oil, Heating Oil, Hydrochloric Acid, Hydrogen Peroxide, Nitric Acid, Phosphoric Acid, Sodium Hydroxide (Caustic Soda), Sulfuric Acid, Synthetic Oil |
Not Recommended | Acetic Acid (White Vinegar), Acetone, Chlorine, Gasoline, Hydraulic Fluid, Isopropyl Alcohol, Lacquer Solvents, Methanol (Methyl Alcohol), Methyl Ethyl Ketone (MEK) |
Coefficient of Friction | Not Rated |
Coefficient of Thermal Expansion | 4.0 × 10^-5 /°F |
Comparable To | Duraplex |
Density | 0.042 lb/in³ |
Dielectric Strength | Not Rated |
Environment | Outdoor |
Flexibility | Semi-Rigid |
Flexural Modulus | 340,000 psi |
For Use Outdoors | Yes |
For Use With | Coolant, Diesel Fuel, Fuel Oil, Heating Oil, Hydrochloric Acid, Hydrogen Peroxide, Kerosene, Mineral Oil, Nitric Acid, Phosphoric Acid, Sodium Hydroxide (Caustic Soda), Sodium Hypochlorite (Bleach), Sulfuric Acid, Synthetic Oil, Vegetable Oil, Water |
Hardness | Rockwell M68 |
Hardness Rating | Hard |
Light Transmission | 92% |
Material | Acrylic Plastic |
Performance | Chemical Resistant, Clear, Easy Thermoform, Extra High Strength, Flame Retardant, Impact Resistant, Scratch Resistant, Thermally Stable, UV Resistant |
Shape | Sheet |
Texture | Smooth Texture |
Tolerance Rating | Standard |
Warning Message | Physical and mechanical properties are not guaranteed. They are intended only as a basis for comparison and not for design purposes. |
Water Absorption | 0.30% |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/14/2023, 235 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 392051.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Additional Specifications |
Modified for increased impact strength over other types of acrylic, these extruded acrylic sheets are often used for skylights and outdoor signs. This material is a better choice for outdoor use than polycarbonate because it is scratch and UV resistant, and it maintains clarity over time.

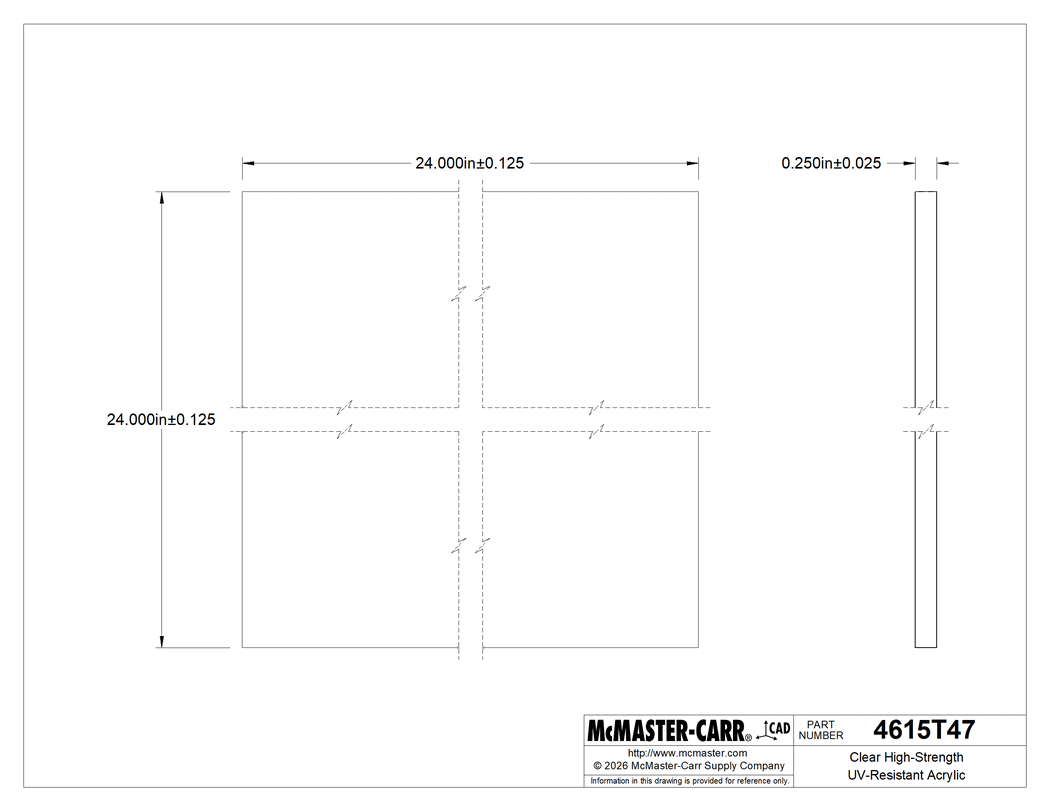

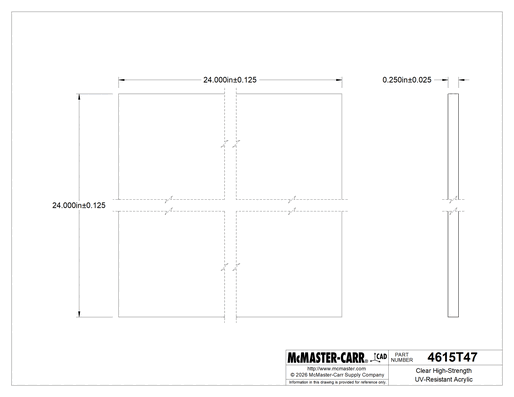

The information in this 3-D model is provided for reference only.
