    Anodized Architectural 6063 Aluminum 90 Degree Angle

    1 mm Wall Thickness, 5 mm High x 5 mm Wide Outside, 6 Feet Long

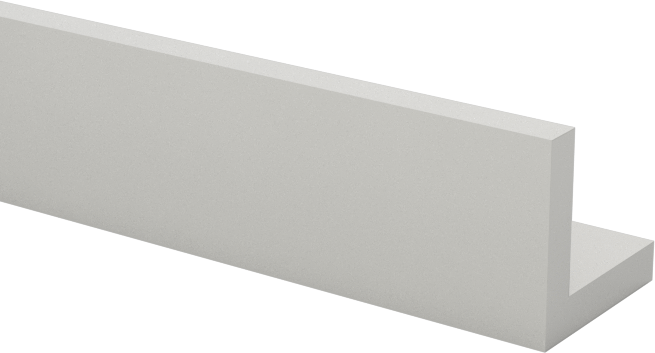

    Image of Product. Front orientation. Anodized Architectural 6063 Aluminum 90 Degree Angle, 1 mm Wall Thickness, 5 mm High x 5 mm Wide Outside, 6 Feet Long.

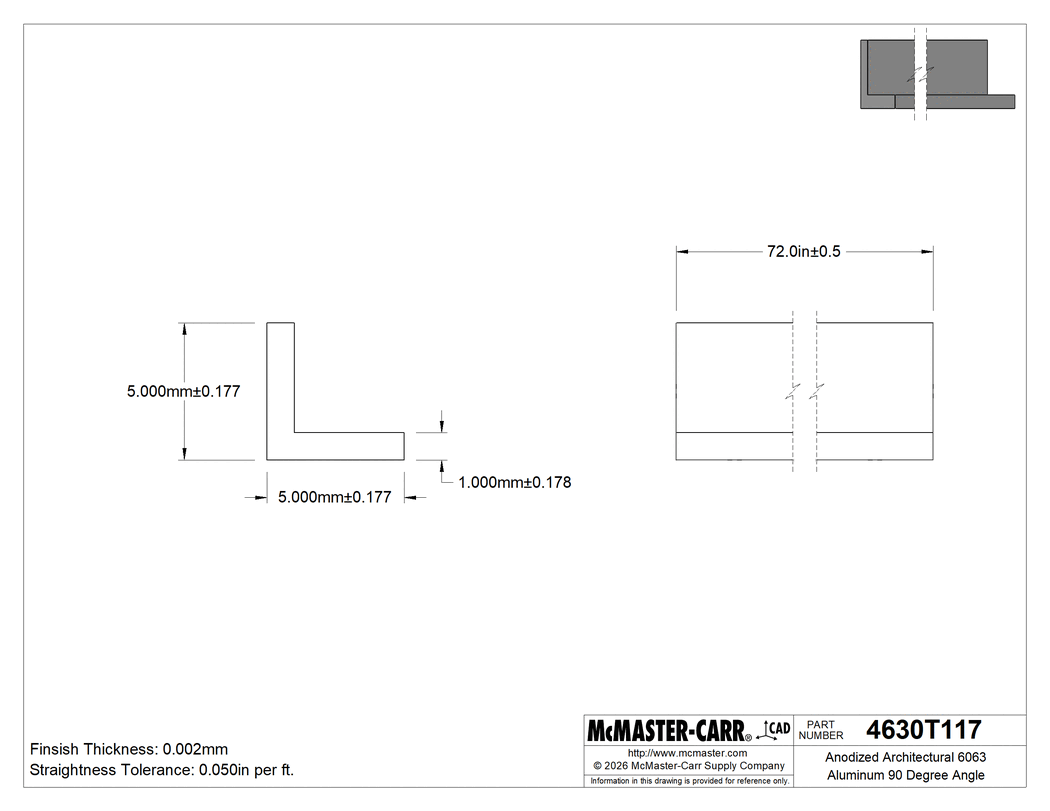

    Technical Drawing of Anodized Architectural 6063 Aluminum 90 Degree Angle, 1 mm Wall Thickness, 5 mm High x 5 mm Wide Outside, 6 Feet Long.
    Image of Product. Side1 orientation. Contains SizingReference. Anodized Architectural 6063 Aluminum 90 Degree Angle, 1 mm Wall Thickness, 5 mm High x 5 mm Wide Outside, 6 Feet Long.
    2-D PDF
    000000 each
    4630T117
    In stock
    4630T117
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Tolerance Rating

    Standard

    Anodize Type

    Decorative

    Wall Thickness

    1 mm

    Wall Thickness Tolerance

    -0.178 mm to 0.178 mm

    Length

    6 ft.

    Length Tolerance

    -1/2" to 1/2"

    Outside

    Height

    5 mm

    Height Tolerance

    -0.177 mm to 0.177 mm

    Width

    5 mm

    Width Tolerance

    -0.177 mm to 0.177 mm

    Inside

    Height

    4 mm

    Width

    4 mm

    Corner Shape

    Outside

    Square

    Inside

    Square

    Leg Edge Shape

    Square

    Fabrication

    Extruded

    Temper Designation

    T5

    Specifications Met

    ASTM B221

    Finish Color

    Clear

    Appearance

    Matte

    Application

    Multipurpose, Architectural

    Certificate Form

    Digital

    Certificate Type

    Material Certificate with Traceable Lot Number

    Conductivity Percentage

    55% IACS

    Elongation

    11%

    Finish

    Anodized

    Finish Thickness

    0.002 mm

    Hardness

    Brinell 60

    Hardness Rating

    Soft

    Heat Treatable

    Yes

    Heat Treatment

    Hardened

    Material

    6063 Aluminum

    Material Composition

    Aluminum

    97.5% to 99.35%

    Chromium

    0% to 0.1%

    Copper

    0% to 0.1%

    Iron

    0% to 0.35%

    Magnesium

    0.45% to 0.9%

    Manganese

    0% to 0.1%

    Other

    0% to 0.15%

    Silicon

    0.2% to 0.6%

    Titanium

    0% to 0.1%

    Zinc

    0% to 0.1%

    Performance

    Adhesive Ready, Corrosion Resistant, Decorative, Heat Treatable, Highly Formable, Machinable, Paintable, Ultra Weldable, Ultra-Low Temperature, Wear Resistant

    Shape

    90° Angle

    Straightness Tolerance

    0.050"/1 ft.

    Temperature

    -320° F to 212° F

    Warning Message

    Physical and mechanical properties are not guaranteed. They are intended only as a basis for comparison and not for design purposes.

    Yield Strength

    16,000 psi

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/14/2023, 235 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    760429.1090

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Additional Specifications

    SDS

    Paint and adhesive apply smoothly to these 90° angles. They’re bonded with a thick coating (anodizing) for a uniform finish. This coating also resists scratches and boosts corrosion resistance.

    Easy to bend, 6063 aluminum is often used for exterior railings, decorative trim, and door frames.

    The information in this 3-D model is provided for reference only.
