    440C Stainless Steel Ball Bearing for Food and Beverage

    Sealed, Trade No. 6001-2RS, for 12 mm Shaft Diameter

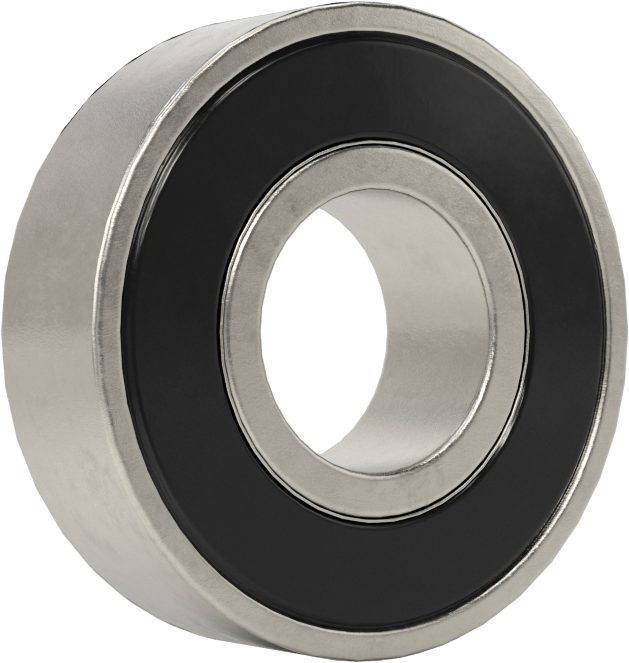

    Image of Product. Front orientation. 440C Stainless Steel Ball Bearing for Food and Beverage, Sealed, Trade No. 6001-2RS, for 12 mm Shaft Diameter.

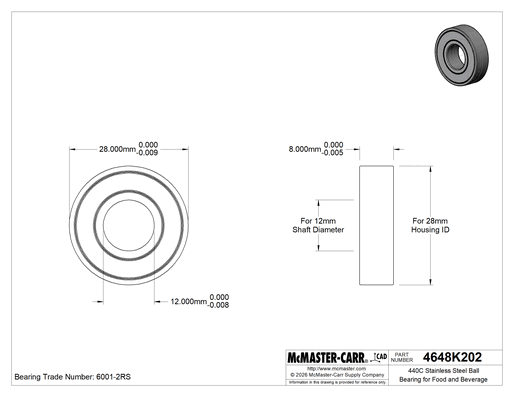

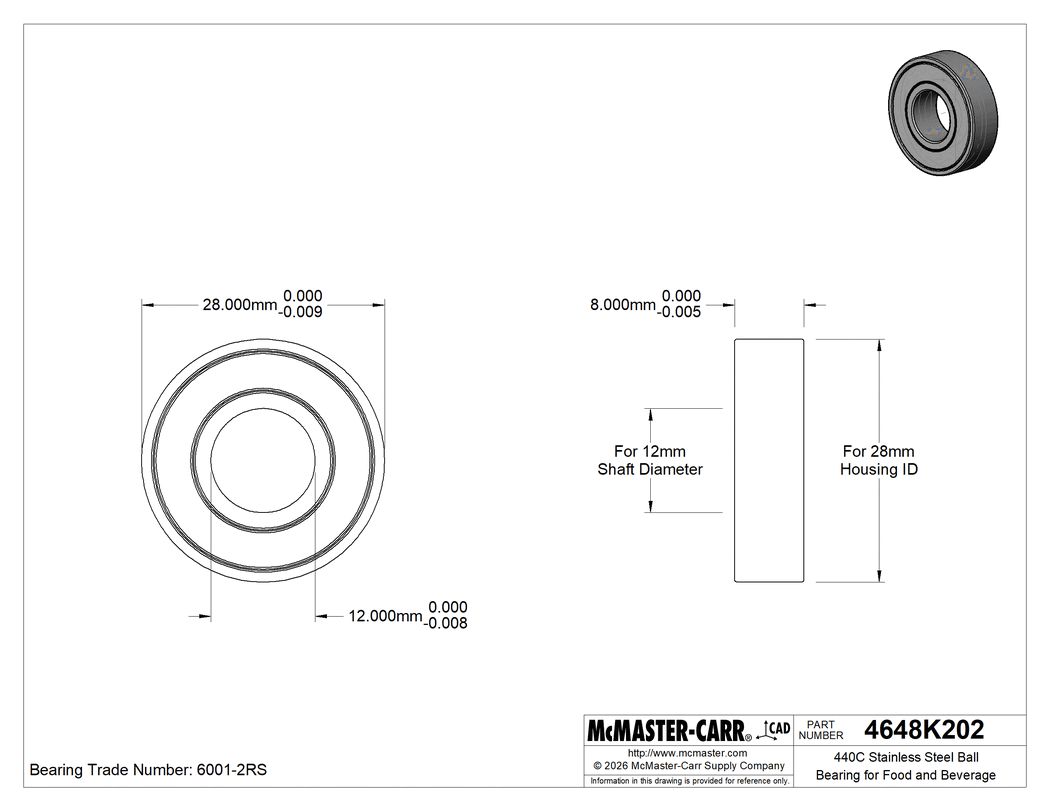

    Technical Drawing of 440C Stainless Steel Ball Bearing for Food and Beverage, Sealed, Trade No. 6001-2RS, for 12 mm Shaft Diameter.
    Image of Product. Side1 orientation. Contains SizingReference. 440C Stainless Steel Ball Bearing for Food and Beverage, Sealed, Trade No. 6001-2RS, for 12 mm Shaft Diameter.
    2-D PDF
    000000 each
    4648K202
    In stock
    4648K202
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    For Shaft Type

    Round

    Bearing Seal Type

    Sealed

    Material

    440C Stainless Steel

    For Shaft Diameter

    12 mm

    For Housing ID

    28 mm

    Width

    8 mm

    Width Tolerance

    -0.12 mm to 0 mm

    ABEC Rating

    1

    Dynamic Radial Load Capacity

    970 lb.

    Maximum Rotation Speed

    15,000 rpm

    Temperature Range

    Minimum

    -40° F

    Max.

    200° F

    Inner Ring Type

    Standard

    Food Industry Standard

    FDA Compliant 21 CFR 178.3570

    Bearing Trade Number

    6001-2RS

    Ball Bearing Profile

    Standard

    Ball Material

    440C Stainless Steel

    Bearing Construction

    Single Row

    Bearing Type

    Ball

    Cage Material

    304 Stainless Steel

    Environment

    Food and Beverage

    For Load Direction

    Radial

    ID

    12 mm

    ID Tolerance

    -0.008 mm to 0 mm

    Lubricant

    Solid Polymer

    Lubrication

    Lubricated

    OD

    28 mm

    OD Tolerance

    -0.009 mm to 0 mm

    Performance

    Corrosion Resistant, Permanently Lubricated

    Radial Clearance

    0.005 mm to 0.01 mm

    Radial Clearance Trade Number

    C0

    Seal Material

    Buna-N

    Shaft Mount Type

    Press Fit

    Static Radial Load Capacity

    420 lb.

    System of Measurement

    Metric

    Country of Origin

    Japan

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    1C999

    REACH Compliance

    REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    848210.5044

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Food production rolls along smoothly on these bearings. Greased with FDA-compliant lubricant, they’re safe to install on food-processing equipment, such as conveyor belts, so long as they don’t directly touch the food. The lubricant is a solid material that fills the space between the balls and releases oil over time, so you'll never need to add more.

    SealedThe best choice for dirty environments. A barrier seals out dust so it won't gunk up or wear down the balls. However, these bearings retain the most heat since air can't flow through.

    Corrosion-Resistant 440C Stainless SteelCombine the strength of steel with the corrosion resistance of stainless steel. These bearings won't degrade from water or mild chemicals, such as the ammonia in cleaning solutions. However, they'll weaken when exposed to salt water and harsh chemicals, such as bleach.

    ABEC RatingBearings with an ABEC rating meet industry tolerance standards established by the Annular Bearing Engineers Committee (ABEC). They're rated on a scale from 1 to 9. The higher the rating, the tighter the tolerance. Bearings rated ABEC 1 or 3 are precise enough for most applications. If your application consistently runs at high speeds or requires high accuracy, consider bearings rated ABEC 5 or higher, since they generate less friction and heat.

    The information in this 3-D model is provided for reference only.
