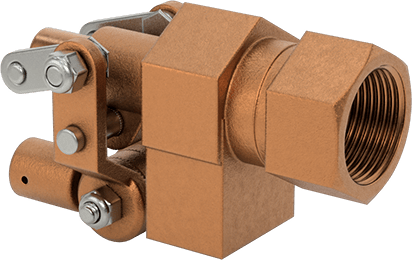

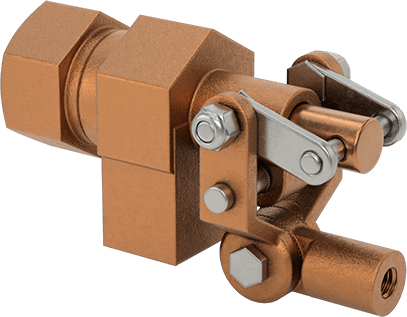

Float Valve Body for Water
Buna-N Seal, Nonrotating Plunger, 1 NPT Female Inlet
Shape | 90° Elbow |
Inlet | |
Connection Port | Pipe |
Connection | Threaded |
Pipe Size | 1 |
Thread Type | NPT |
Gender | Female |
Outlet Connection Port | Discharge |
Seal Material | Buna-N |
Plunger Texture | Smooth |
Plunger Type | Nonrotating |
Discharge Slot | |
Width | 3/4" |
Length | 1 7/32" |
Flow Rate @ Pressure | 80 gpm @ 55 psi |
Maximum Pressure | 115 psi |
Temperature Range | 35° F to 180° F |
For Rod Thread Size | 3/8"-16 |
Material | Brass |
Plunger Material | Brass |
For Use With | Water |
Valve Type | Float |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant with Exemptions |
RoHS Exemptions | 6(c) |
Schedule B Number | 848180.9015 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Related Product |
Combine these float valve bodies with floats and rods to create float valves that meet exact specifications. Made of brass, they resist corrosion from water. This makes them ideal for use in cooling towers, high-pressure washers, and processing tanks. However, if exposed to salt or chemicals, they’ll tarnish.
Discharge—Valve bodies with a discharge outlet release contents into your tank. The outlet is unthreaded.
Nonrotating Plunger—Valve bodies with a nonrotating plunger maintain a tight seal in turbulent water, such as in mixing tanks and tanks with boiling water. However, the seal wears faster than in valve bodies with a rotating plunger.

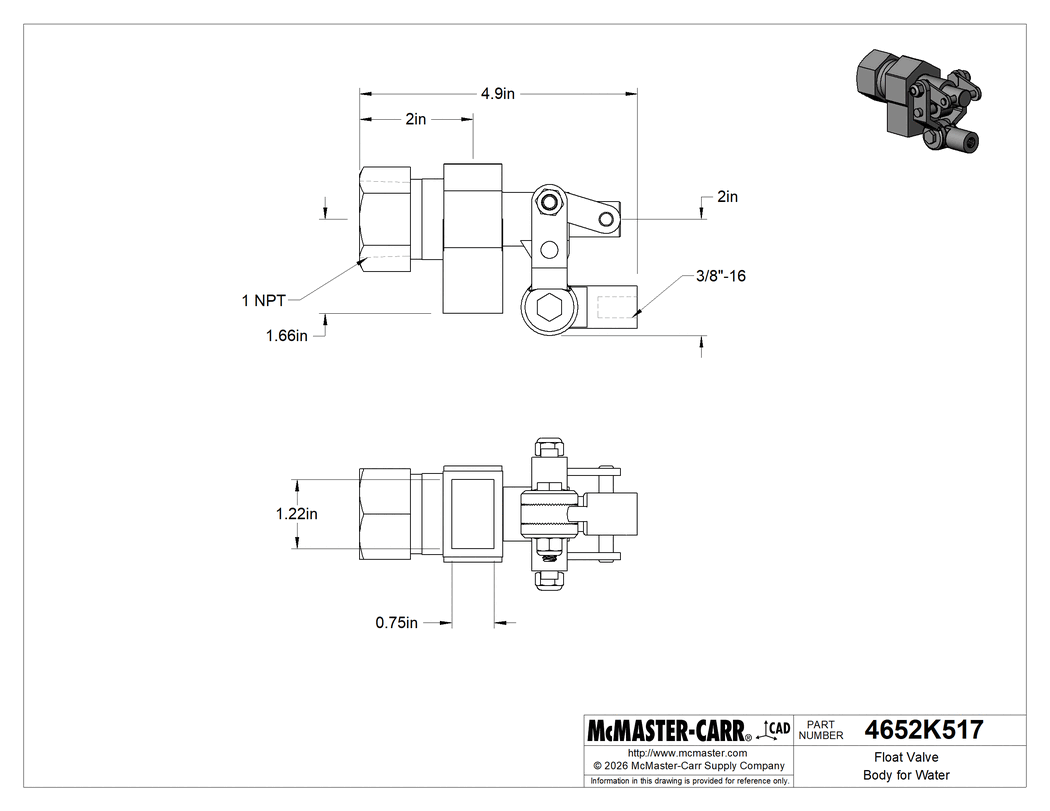

The information in this 3-D model is provided for reference only.
