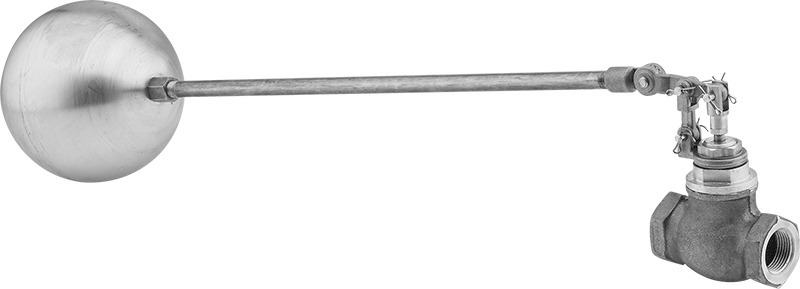

Bronze Straight Body Float Valve
with PTFE Plastic Seal, 3/4 NPT Female Inlet x Outlet

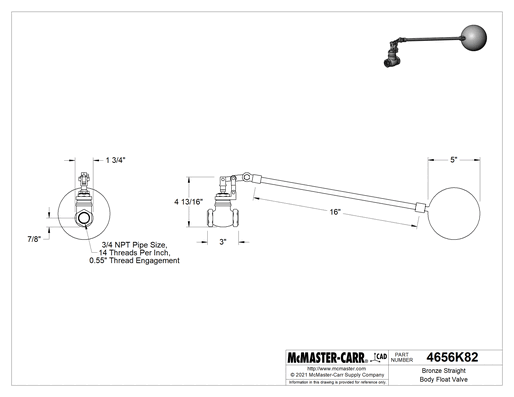

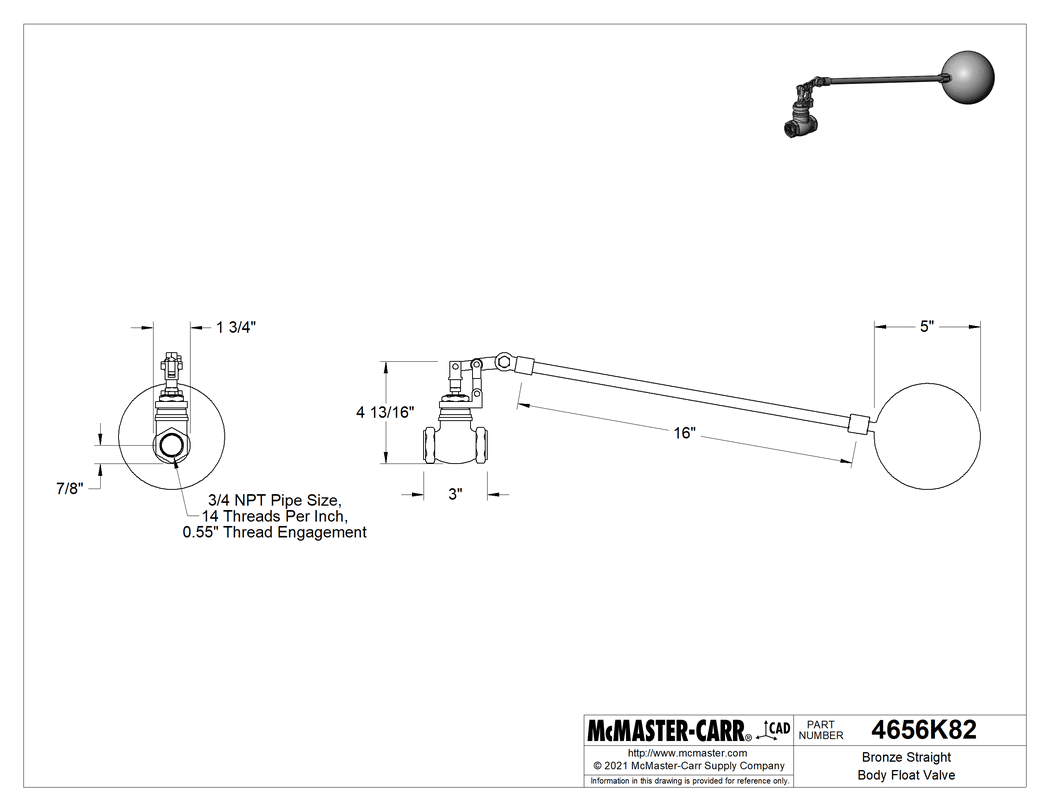

2-D PDF
0000000 each
4656K82
In stock
4656K82
0000000 each
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
For Use With | Hydraulic Fluid, Water |
Float Rod Material | Brass |
Valve Body Shape | Straight |
Features | 360° Rotating Joint |
For Container Type | Open Tank |
Seal Material | PTFE |
Inlet | |
Connection Port | Pipe |
Connection | Threaded |
Pipe Size | 3/4 |
Thread Type | NPT |
Gender | Female |
Outlet | |
Connection Port | Pipe |
Connection | Threaded |
Pipe Size | 3/4 |
Thread Type | NPT |
Gender | Female |
Flow Rate @ Pressure | 50 gpm @ 50 psi |
Maximum Pressure | 100 psi |
Float Diameter | 5" |
Float Rod | |
Length | 16" |
Pipe Size | 1/4 |
Thread Type | NPT |
Float Material | Copper |
Temperature Range | -50° F to 350° F |
Valve Body Material | Bronze |
Valve Type | Float |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant with Exemptions |
RoHS Exemptions | 6(c) |
Schedule B Number | 848180.9015 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
With a durable bronze body, these float valves can be used with water and hydraulic fluid. Use them to control liquid levels in processing tanks and cooling towers. They have a 360° rotating joint that allows you to alter the angle between the valve body and rod to fit in your tank.
The information in this 3-D model is provided for reference only.
