    Horizontal-Mount Float Switch

    for Food and Beverage, Through-Wall Connection

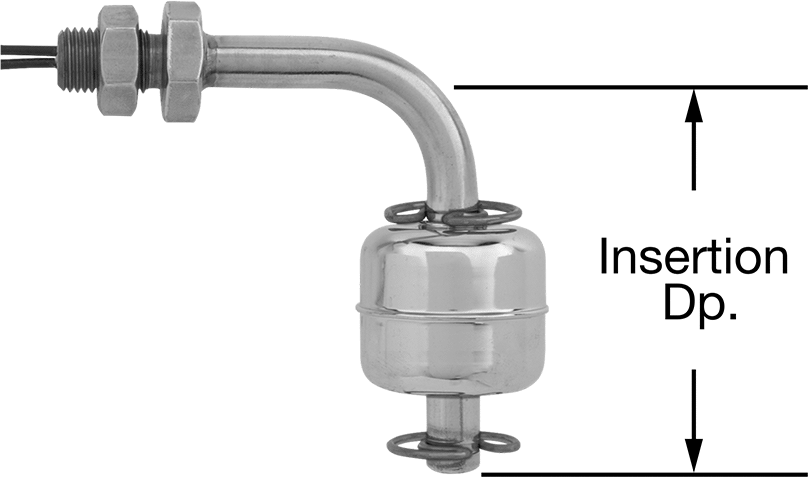

    Image of Product. Front orientation. Contains Annotated. Horizontal-Mount Float Switch, for Food and Beverage, Through-Wall Connection.

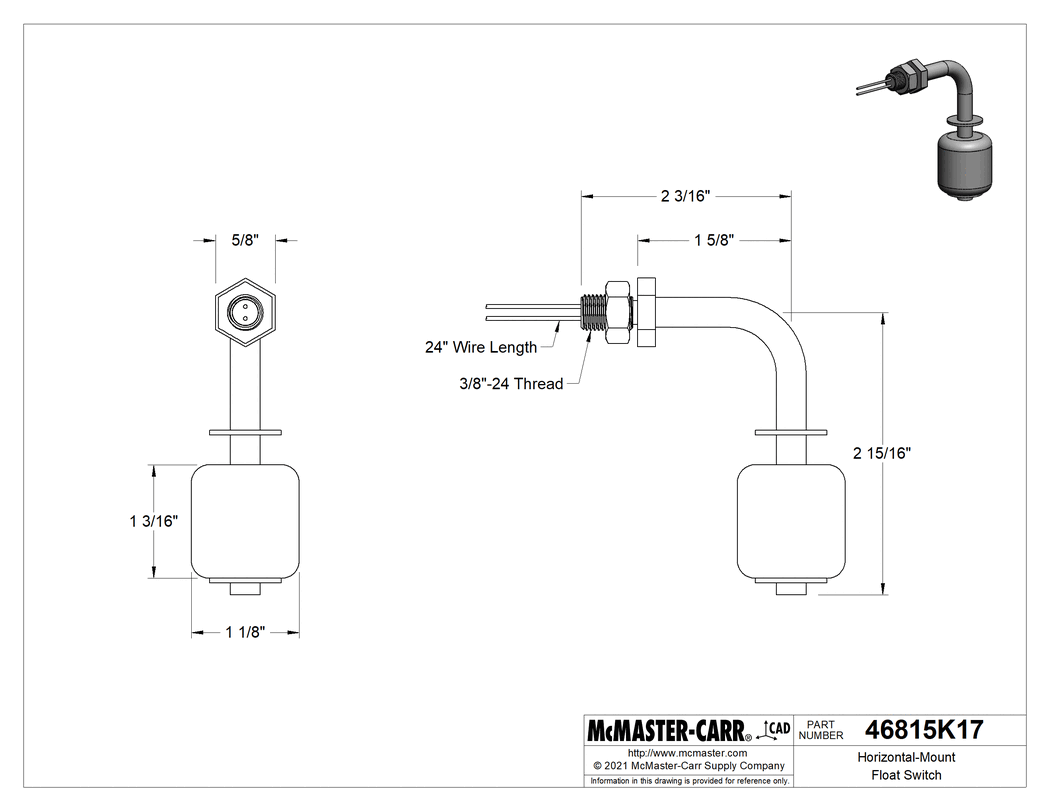

    Technical Drawing of Horizontal-Mount Float Switch, for Food and Beverage, Through-Wall Connection.
    Image of Attribute. Front orientation. Contains Annotated. Horizontal-Mount Float Switch, for Food and Beverage, Through-Wall Connection.
    2-D PDF
    000000 each
    46815K17
    In stock
    46815K17
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Input Voltage

    120V AC/240V AC

    Body Material

    316 Stainless Steel

    Float Material

    316 Stainless Steel

    For Hole Diameter

    3/8"

    Minimum Specific Gravity

    0.8

    Maximum Pressure @ Temperature

    300 psi @ 70° F

    Temperature Range

    35° F to 390° F

    Insertion Depth

    2 3/16"

    Switch Starting Position

    1 Off/1 On

    Switch Designation

    SPST-NO
    SPST-NC

    Current @ Voltage

    0.28 amp @ 120V AC

    Mounting Location

    Through Wall

    Electrical Connection

    Wire Leads

    Includes

    Mounting Nut

    Certification

    UL Recognized Component, CSA Certified

    Environment

    Food and Beverage, Sanitary

    Food Industry Standard

    NSF/ANSI 169

    For Use With

    Beverage, Food

    Mounting Position

    Horizontal

    Number of Circuits Controlled

    1

    Signal Type

    Control

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    902610.7000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Related Products

    Replacement Floats

    Replacement Clip for 1/8 and 3/8 Pipe Size 316 Stainless Steel Floats

    Mount these switches through an unthreaded hole in your tank wall and secure with a nut from inside the tank. Often used in food-processing applications, they meet NSF/ANSI Standard 169.
