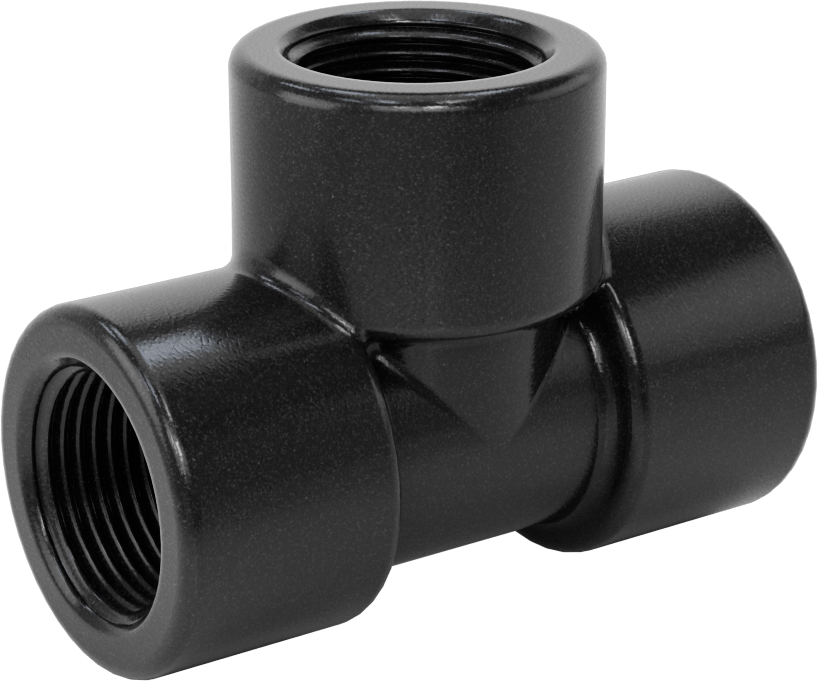

UV-Resistant Polypropylene Pipe Fitting for Chemicals
Tee Connector, 3/4 NPT Female
Shape | Tee |
Fitting Type | Connector |
Fitting Connection | NPT Female |
Pipe Size | 3/4 |
Pipe Schedule | 80 |
Material | Polypropylene |
Color | Black |
Maximum Pressure @ Temperature | 300 psi @ 72° F |
Connects To | Pipe |
For Flange | |
Class | 150 |
Material | Polypropylene |
For Pipe Material | Polypropylene |
For Pipe Schedule | 80 |
For Use With | Acetic Acid (White Vinegar), Calcium Chloride, Hydrochloric Acid, Phosphoric Acid, Salt Water, Sodium Hydroxide (Caustic Soda), Sulfuric Acid, Water |
For Use With Concentration | |
Acetic Acid (White Vinegar) | 5% |
Hydrochloric Acid | 10% |
Phosphoric Acid | 85% |
Sulfuric Acid | 30% |
Performance | Chemical Resistant, UV Resistant |
Temperature | 0° F to 150° F |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 391740.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Made of polypropylene, these fittings won’t deteriorate when exposed to the damaging effects of ultraviolet light and are suitable to use outdoors. They have the chemical resistance to withstand a wide variety of acids, solvents, and other harsh substances.
To prevent leaks in threaded connections, apply a sealant to the male threads. Threaded connections can be taken apart as needed for maintenance and repair. For metal threads, use PTFE tape. For plastic threads, apply a non-hardening, plastic-compatible sealant. Tape or sealants with PTFE are not recommended for plastic-to-plastic connections. When making a threaded connection be careful not to overtighten the threads. To prevent cracks and leaks, finger tighten the fitting, then wrench-tighten one to two turns.

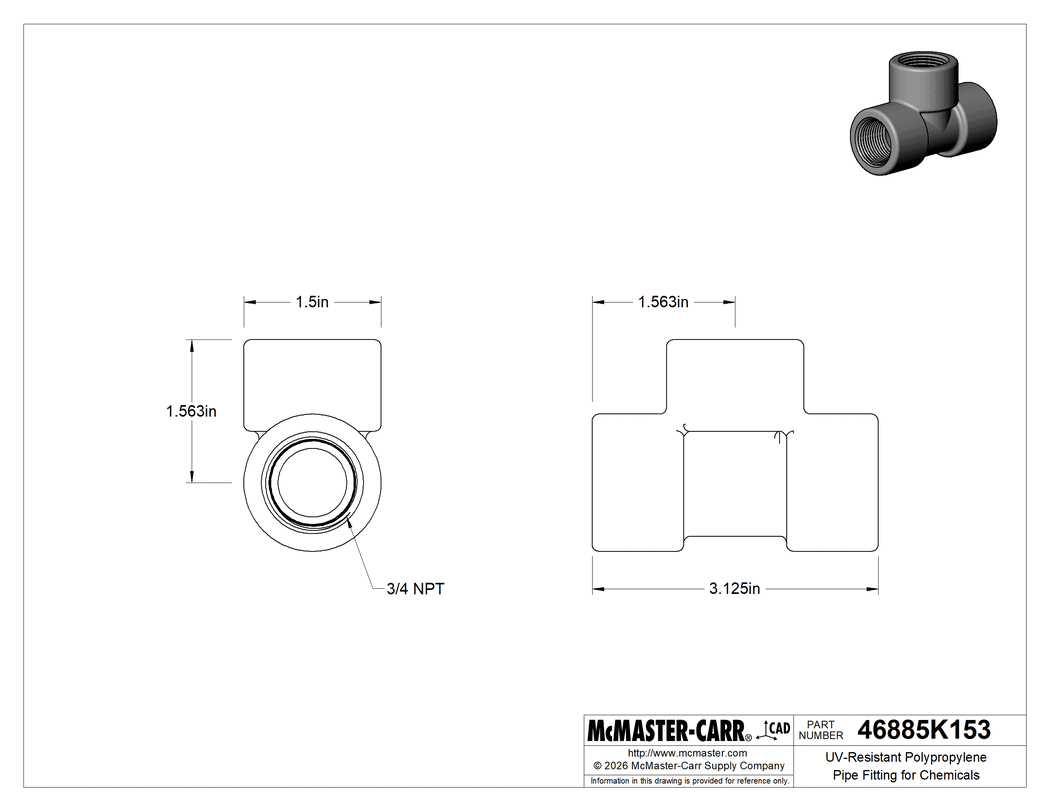

The information in this 3-D model is provided for reference only.
