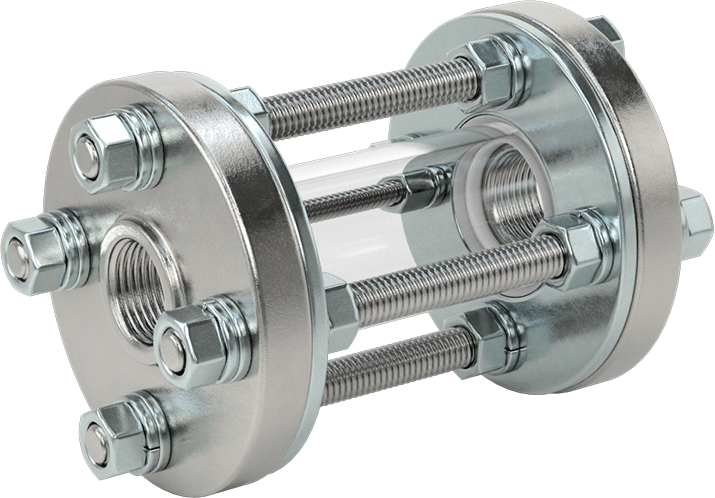

Full-View Flow Sight for Water and Oil
316 Stainless Steel Body, 1/2 NPT Female

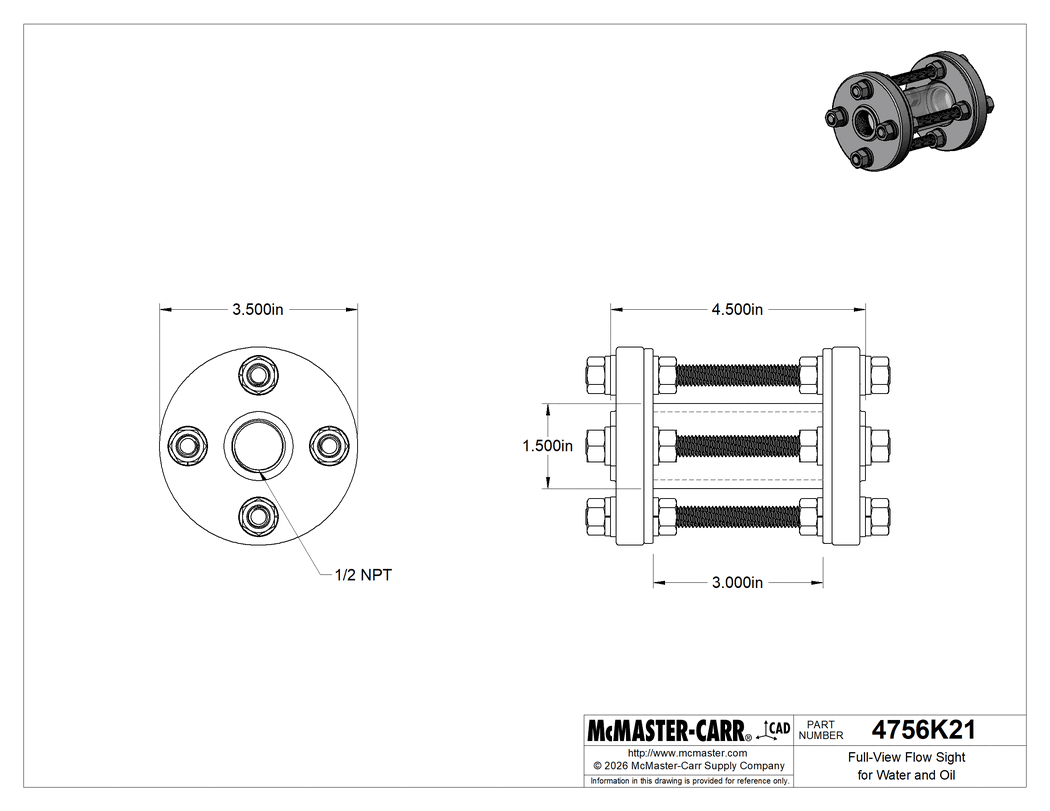

2-D PDF
0000000 each
4756K21
In stock
4756K21
0000000 each
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Indicator Type | No Indicator |
Body Material | 316 Stainless Steel |
Pipe Size | 1/2 |
Thread Type | NPT |
Gender | Female |
Temperature Range | 40° F to 200° F |
Window | |
Type | Tubular |
Length | 3" |
Material | Glass |
End-to-End Length | 5 3/8" |
Height | 3 1/2" |
Maximum Pressure @ Temperature | 50 psi @ 70° F |
Direction of Flow | Any Direction |
For Use With | Water, Oil |
Connects To | Pipe |
Fitting Connection | Threaded |
Mounting | |
Location | Inline |
Position | Any Angle |
Seal Material | PTFE |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 902610.7000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
The large tubular window provides an unobstructed view of liquid color, clarity, and movement from multiple angles.
316 Stainless Steel Body—Sights with a 316 stainless steel body are more corrosion resistant than sights with a bronze body.
The information in this 3-D model is provided for reference only.
