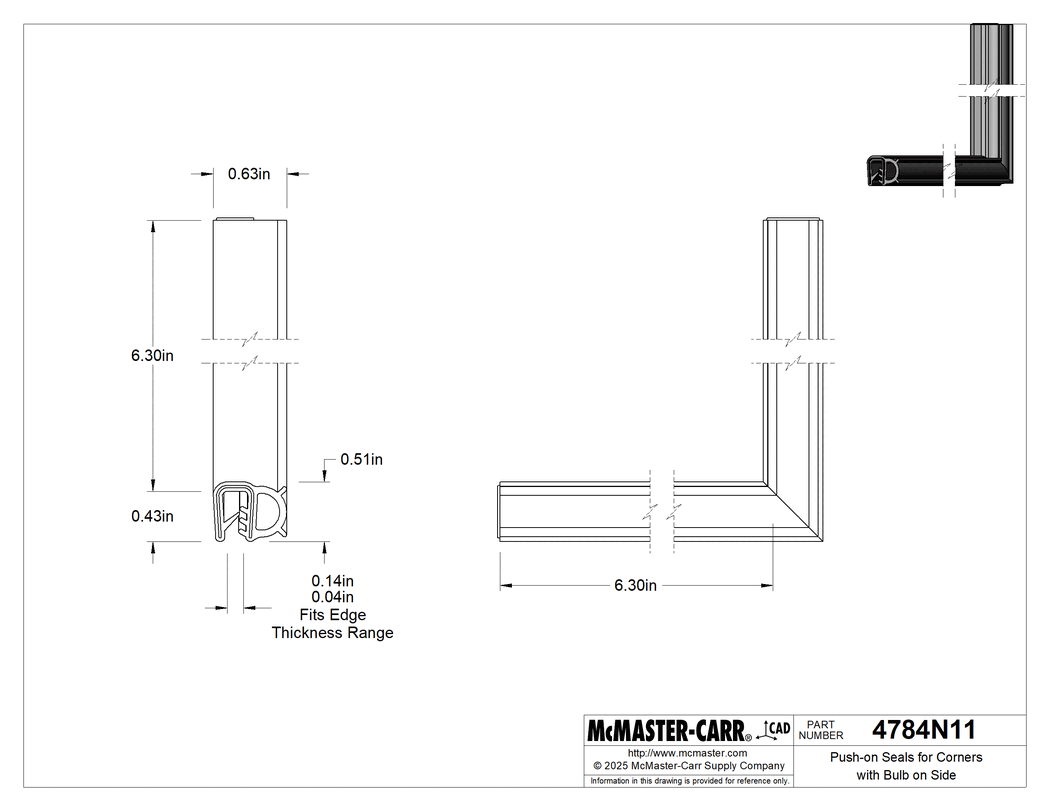

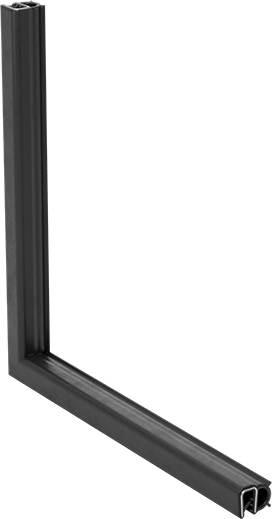

Push-on Edge Seals for Corners with Bulb on Side
Fits 3/64" to 1/8" Thick Edge, 6-1/4" Leg Length
2-D PDF
000000 each
4784N11
In stock
4784N11
000000 each
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Material | EPDM Foam |
Mount Type | Push On |
Fits Edge Thickness | 3/64" to 1/8" |
Leg Length | 6 1/4" |
Height | 7/16" |
Grip Height | 33/64" |
Grip Material | EPDM |
Core Material | Metal |
Temperature Range | -40° F to 210° F |
For Use Outdoors | Yes |
For Use With | Oil, Salt, Steam, Water |
Environment | Outdoor |
Color | Black |
Bulb Location | Side |
Bulb Material | Rubber |
Cell Type | Closed |
Performance | Water Resistant, Weather Resistant |
Seal | |
Edge Style | Bulb |
Construction | Hollow |
Country of Origin | Spain |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 400819.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Quickly seal corners without needing to bend, cut, or piece straight seals together.
Use the straight seals to fill in gaps along edges if the corner seals aren't long enough for your application.
The information in this 3-D model is provided for reference only.
