    Galvanized Steel Eyebolt - for Lifting

    M12 x 1.75 Thread Size, 38 mm Thread Length

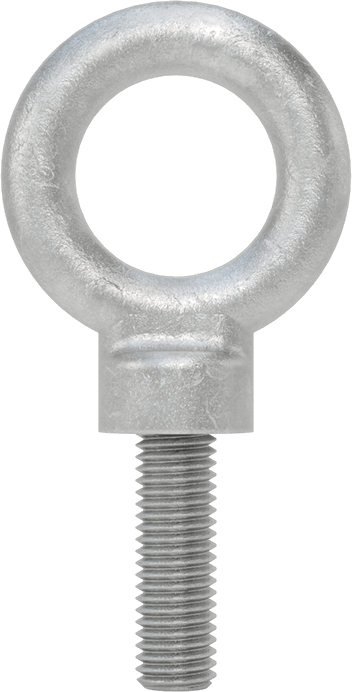

    Image of Product. Front orientation. Galvanized Steel Eyebolt - for Lifting, M12 x 1.75 Thread Size, 38 mm Thread Length .

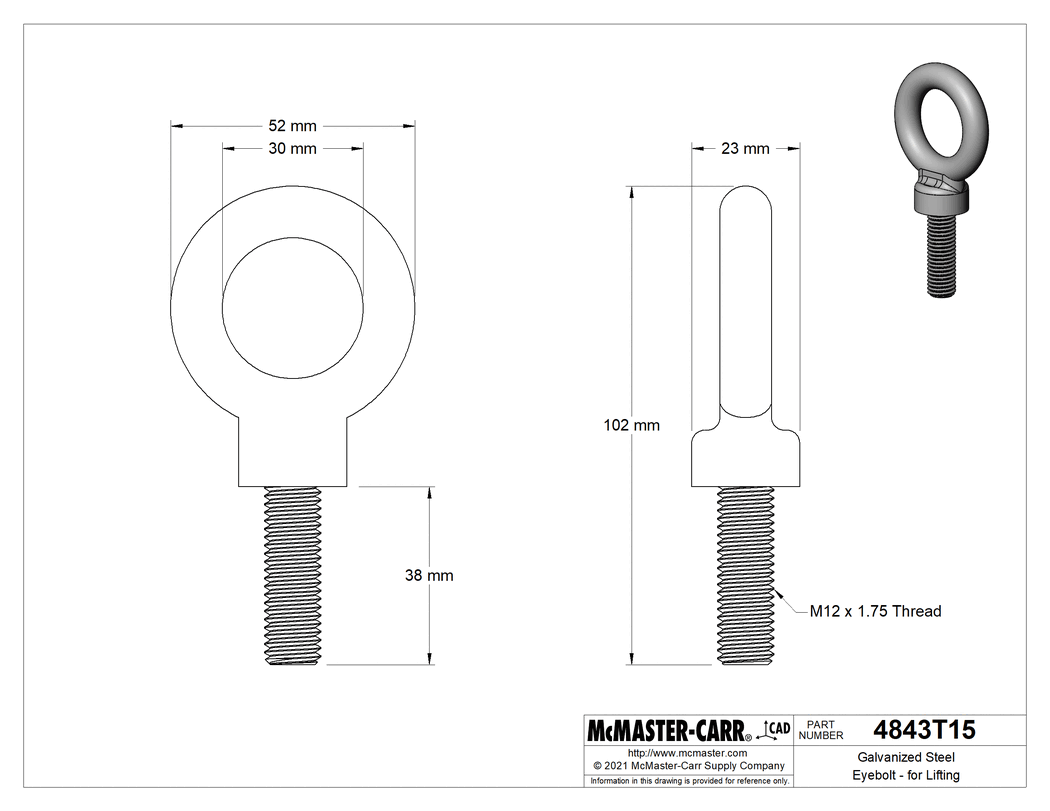

    Technical Drawing of Galvanized Steel Eyebolt - for Lifting, M12 x 1.75 Thread Size, 38 mm Thread Length .

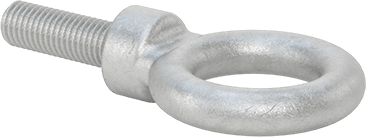

    Image of Product. Top orientation. Galvanized Steel Eyebolt - for Lifting, M12 x 1.75 Thread Size, 38 mm Thread Length .
    Image of Product. Side1 orientation. Contains SizingReference. Galvanized Steel Eyebolt - for Lifting, M12 x 1.75 Thread Size, 38 mm Thread Length .
    click to play the video
    2-D PDF
    000000 each
    4843T15
    In stock
    4843T15
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Material

    Galvanized Steel

    Eye

    Diameter

    30 mm

    Type

    Closed

    Shape

    Round

    Body Style

    With Shoulder

    Thread

    Size

    M12 × 1.75 mm

    Length

    38 mm

    Shank Length

    38 mm

    Vertical Capacity

    2,200 lb.

    Threading

    Fully Threaded

    Overall Length

    102 mm

    Application

    For Lifting

    Movement

    Rigid

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    731815.2000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Create a secure attachment point for hooks, shackles, and other lifting equipment. Also known as machinery eyebolts, these eyebolts are used to lift heavy machines and materials. They have a closed eye that won’t bend under strain.

    Warning: Never use to lift people or items over people. Capacities listed are for vertical lifting only.

    Galvanized Steel—Galvanized steel eyebolts have a hot-dipped finish for more corrosion resistance than zinc-plated steel.

    With Shoulder—Use for lifting at angles up to 45° or for vertical lifting. Because angular lifting significantly reduces the eyebolt’s capacity, we recommend hoist rings for heavy loads.

    The information in this 3-D model is provided for reference only.
