    Standard-Wall PVC Pipe Fitting for Water

    Wye Reducer, 1-1/2 Size Socket Female x 1-1/4 Size Socket Female

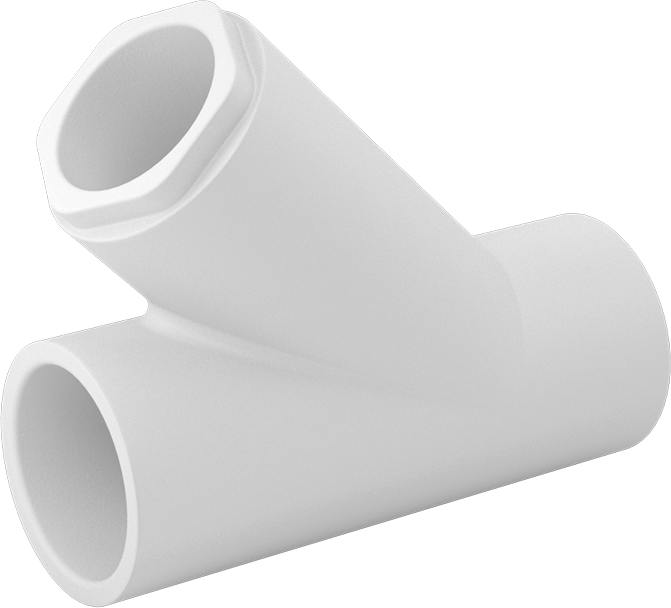

    Image of Product. Back orientation. Standard-Wall PVC Pipe Fitting for Water, Wye Reducer, 1-1/2 Size Socket Female x 1-1/4 Size Socket Female.

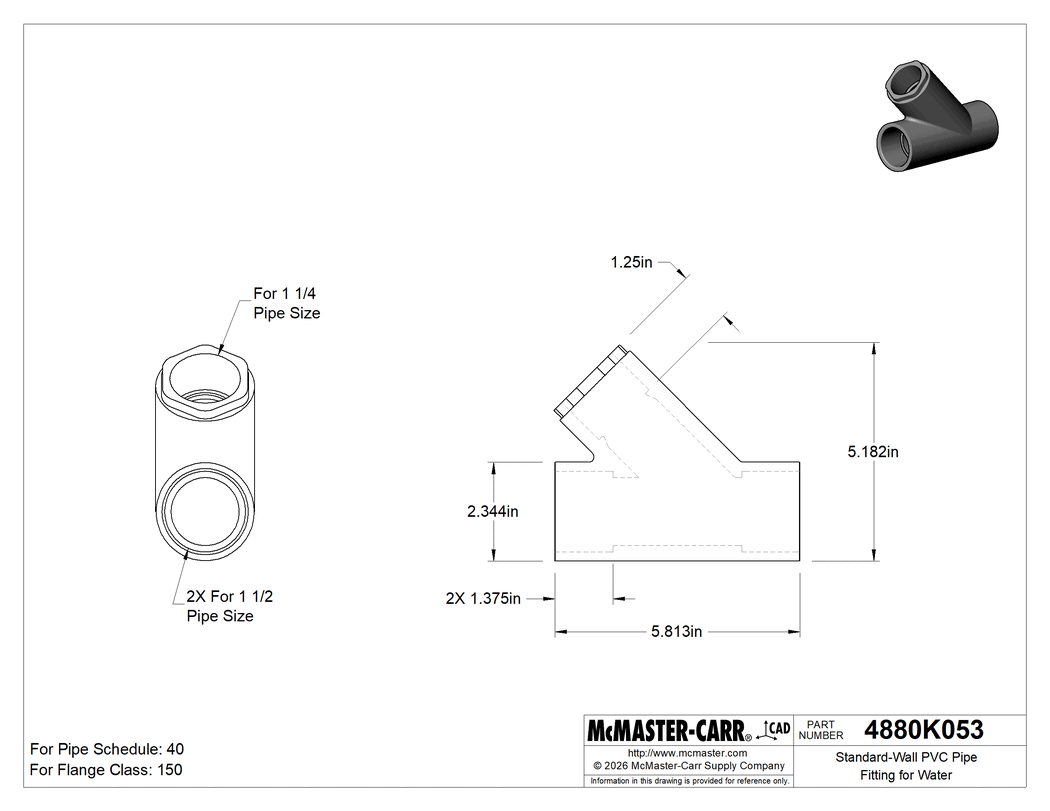

    Technical Drawing of Standard-Wall PVC Pipe Fitting for Water, Wye Reducer, 1-1/2 Size Socket Female x 1-1/4 Size Socket Female.

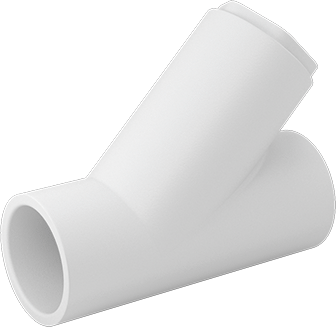

    Image of Product. Front orientation. Standard-Wall PVC Pipe Fitting for Water, Wye Reducer, 1-1/2 Size Socket Female x 1-1/4 Size Socket Female.
    Image of Product. Female. Front orientation. Contains Annotated. Standard-Wall PVC Pipe Fitting for Water, Wye Reducer, 1-1/2 Size Socket Female x 1-1/4 Size Socket Female.
    Female

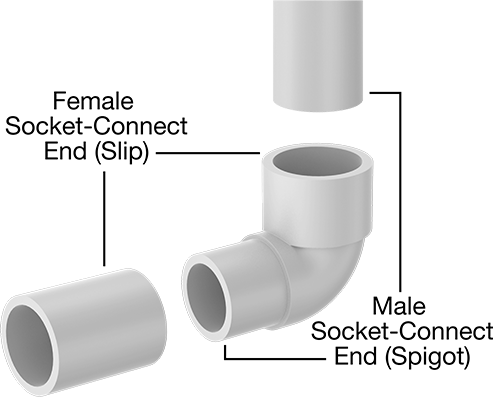

    Image of System. Front orientation. Contains Annotated. Standard-Wall PVC Pipe Fitting for Water, Wye Reducer, 1-1/2 Size Socket Female x 1-1/4 Size Socket Female.
    Image of Product. Side1 orientation. Contains SizingReference. Standard-Wall PVC Pipe Fitting for Water, Wye Reducer, 1-1/2 Size Socket Female x 1-1/4 Size Socket Female.
    2-D PDF
    000000 each
    4880K053
    In stock
    4880K053
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Wall Thickness Rating

    Standard

    Shape

    Wye

    Fitting Type

    Reducer

    Fitting Connection

    Cement Socket Female × Cement Socket Female × Cement Socket Female

    Pipe Size

    (A)

    1 1/2

    (B)

    1 1/4

    (C)

    1 1/2

    Pipe Schedule

    40

    Material

    PVC

    Color

    White

    Maximum Pressure @ Temperature

    Not Rated

    Connects To

    Pipe

    Environment

    Food and Beverage

    Food Industry Standard

    NSF/ANSI 61

    For Flange

    Class

    150

    Material

    PVC

    For Pipe Material

    PVC

    For Pipe Schedule

    40

    For Use With

    Drinking Water, Water

    Minimum Temperature

    Not Rated

    Maximum Temperature

    140° F

    Performance

    Chemical Resistant

    Socket Depth

    (A)

    1 3/32"

    (B)

    15/16"

    (C)

    1 3/32"

    Specifications Met

    ASTM D1784

    System of Measurement

    (A)

    Inch

    (B)

    Inch

    (C)

    Inch

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (11/07/2024, 242 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    391740.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Connect these fittings to Schedule 40 plastic pipe–they are the industry standard for residential and commercial low-pressure plumbing and water supply applications. They are plastic for good corrosion resistance.

    To prevent leaks in threaded connections, apply a sealant to the male threads. Threaded connections can be taken apart as needed for maintenance and repair. For metal threads, use PTFE tape. For plastic threads, apply a non-hardening, plastic-compatible sealant. Tape or sealants with PTFE are not recommended for plastic-to-plastic connections. When making a threaded connection be careful not to overtighten the threads. To prevent cracks and leaks, finger tighten the fitting, then wrench-tighten one to two turns.

    Warning: Never use plastic pipe fittings, flanges, and pipe with compressed air or gas.

    Note: For fittings that are not rated for pressure, you can use the pressure rating of the plastic pipe as a reference. Threaded fittings are limited to 50% of the rated pressure of the pipe.

    Cement-Socket Fitting Connection—Attach socket-connect ends to unthreaded pipe or another socket-connect fitting with a PVC primer and cement (also known as solvent weld).

    NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.
