    Thick-Wall PVC Plastic Pipe Fitting for Water

    Cap, 1/2 Pipe Size Socket-Connect Female

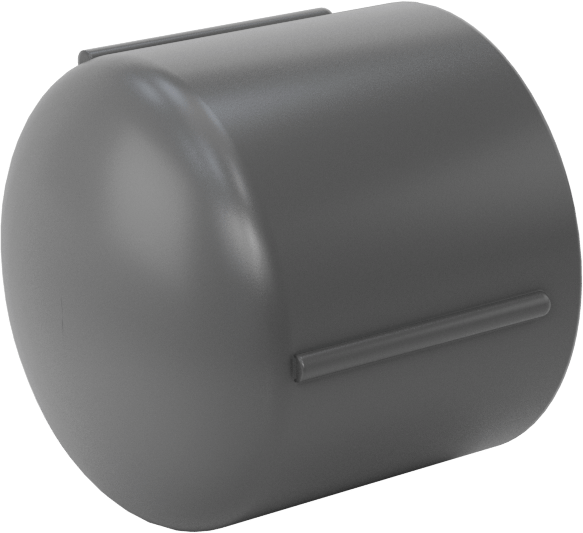

    Image of Product. Front orientation. Thick-Wall PVC Plastic Pipe Fitting for Water, Cap, 1/2 Pipe Size Socket-Connect Female.

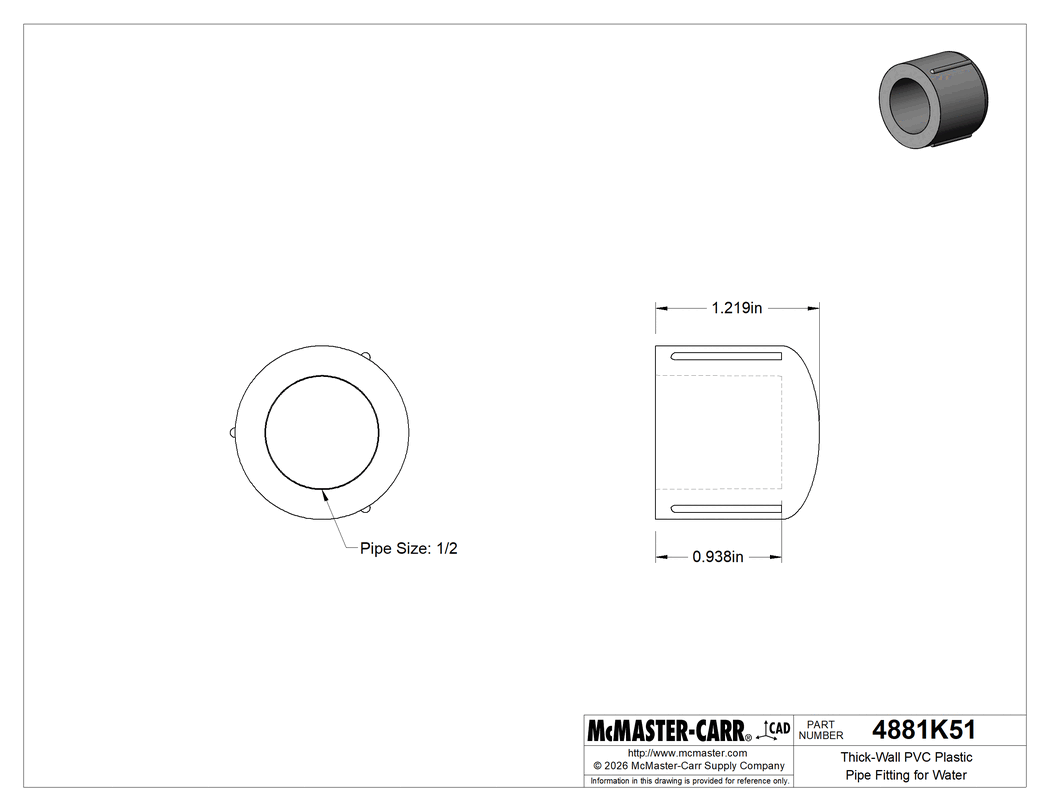

    Technical drawing of Thick-Wall PVC Plastic Pipe Fitting for Water, Cap, 1/2 Pipe Size Socket-Connect Female.
    Image of Product. Back orientation. Thick-Wall PVC Plastic Pipe Fitting for Water, Cap, 1/2 Pipe Size Socket-Connect Female.

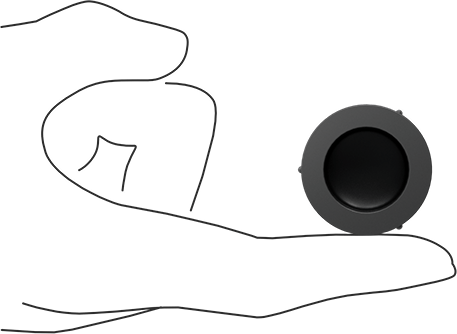

    Image of Product. Side1 orientation. Contains SizingReference. Thick-Wall PVC Plastic Pipe Fitting for Water, Cap, 1/2 Pipe Size Socket-Connect Female.
    2-D PDF
    00000 Each
    In stock
    4881K51
    Each
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    For Use With

    Drinking Water, Water

    Shape

    Cap/Plug

    Type

    Cap

    Schedule

    80

    Connection Type

    Pipe

    Connection Style

    Socket Connect

    Socket Connect Type

    Cement

    Gender

    Female

    Pipe Size

    1/2

    Socket Depth

    15/16"

    Length

    1 7/32"

    Material

    PVC Plastic

    Color

    Dark Gray

    Maximum Pressure

    Not Rated

    Maximum Vacuum

    26 in. of Hg @ 72° F

    Vacuum Rating

    Standard

    Temperature Range

    Not Rated to 140° F

    For Pipe Schedule

    80

    For Pipe Material

    PVC Plastic

    For Flange Class

    150

    For Flange Material

    PVC Plastic

    Environment

    Food Industry

    Specifications Met

    ASTM D1784, NSF/ANSI 61

    RoHS

    RoHS 3 (2015/863/EU) Compliant

    REACH

    REACH (EC 1907/2006) (11/07/2024, 242 SVHC) Compliant

    DFARS

    Specialty Metals COTS-Exempt

    Country of Origin

    United States

    USMCA Qualifying

    Yes

    Schedule B

    391740.0000

    ECCN

    EAR99

    Connect these fittings to Schedule 80 pipe. With thicker, stronger walls than standard-wall fittings, they can handle heavy duty supply applications, such as water processing, wastewater treatment, and irrigation. Fittings are plastic for good corrosion resistance. They meet ASTM specifications and testing requirements for material quality.

    Fittings for drinking water meet NSF/ANSI Standard 61.

    Attach socket-connect ends to unthreaded pipe or another socket-connect fitting with a PVC primer and cement (also known as solvent weld).

    Note: For fittings that are not rated for pressure, you can use the pressure rating of the plastic pipe as a reference. Threaded fittings are limited to 50% of the rated pressure of the pipe.

    Warning: Never use plastic pipe fittings and pipe with compressed air or gas.
