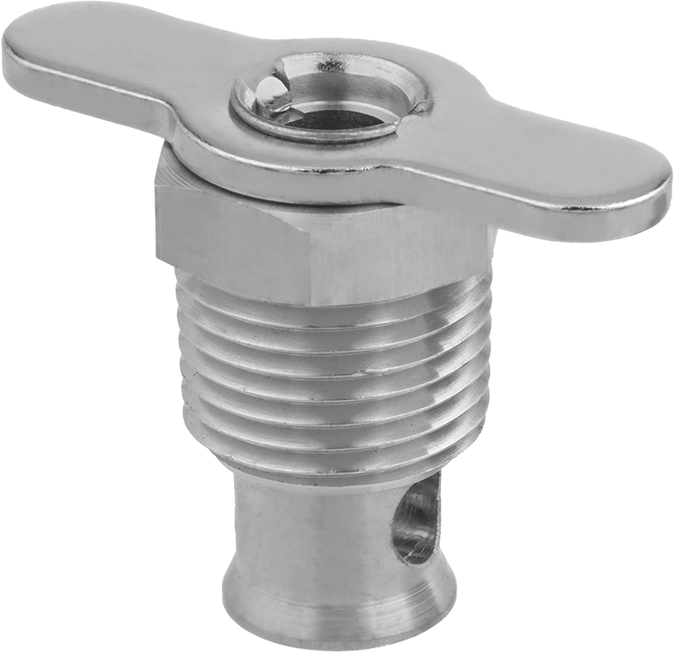

Drain Valve
with Wing Nut Handle, External Seal and 1/2 NPT Inlet
Handle Style | Wing Nut |
Valve Operation | Handle |
Handle Location | Inline |
Wing Orientation | Facing Inlet |
Shape | Straight |
Seal Location | External |
Inlet | |
Connection Port | Pipe |
Connection | Threaded |
Pipe Size | 1/2 |
Thread Type | NPT |
Gender | Male |
Outlet Connection Port | Drain |
Handle Material | Brass |
Body Material | Brass |
For Use With | Water, Oil |
Maximum Pressure @ Temperature | 150 psi @ 250° F |
Temperature Range | -65° F to 250° F |
Height | 1 1/2" |
Valve Function | On/Off |
Valve Type | Stop Cock |
Country of Origin | China |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant with Exemptions |
RoHS Exemptions | 6(c) |
Schedule B Number | 848180.1095 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Also known as stop cocks, install these valves on your tank for easy draining of air or fluid.
Wing Nut Handle—Valves with a wing nut handle give you leverage to open tight, stubborn valves that have been sealed for long periods of time. The wings on these handles face inward, so they have a lower profile than handles with outlet-facing wing nuts.
Inline Handle—Inline handles can be operated from any position. The handle surrounds the drain outlet, so liquids may splash onto your hands or the handle.
External Seal—Valves with an external seal are for higher flow applications than valves with an internal seal. They also have a longer valve stem, so they’re less likely to introduce contaminants from exposed threads.
Brass Handle—Brass handles won’t corrode.
Brass Body—Valves with a brass body won’t corrode when venting air or draining water—even in wet or humid environments.
