    Torx-Drive Draw Lock

    Zinc-Plated Steel, 1-3/8" Latching Distance

    Image of Product. Bottom orientation. Torx-Drive Draw Lock, Zinc-Plated Steel, 1-3/8" Latching Distance.

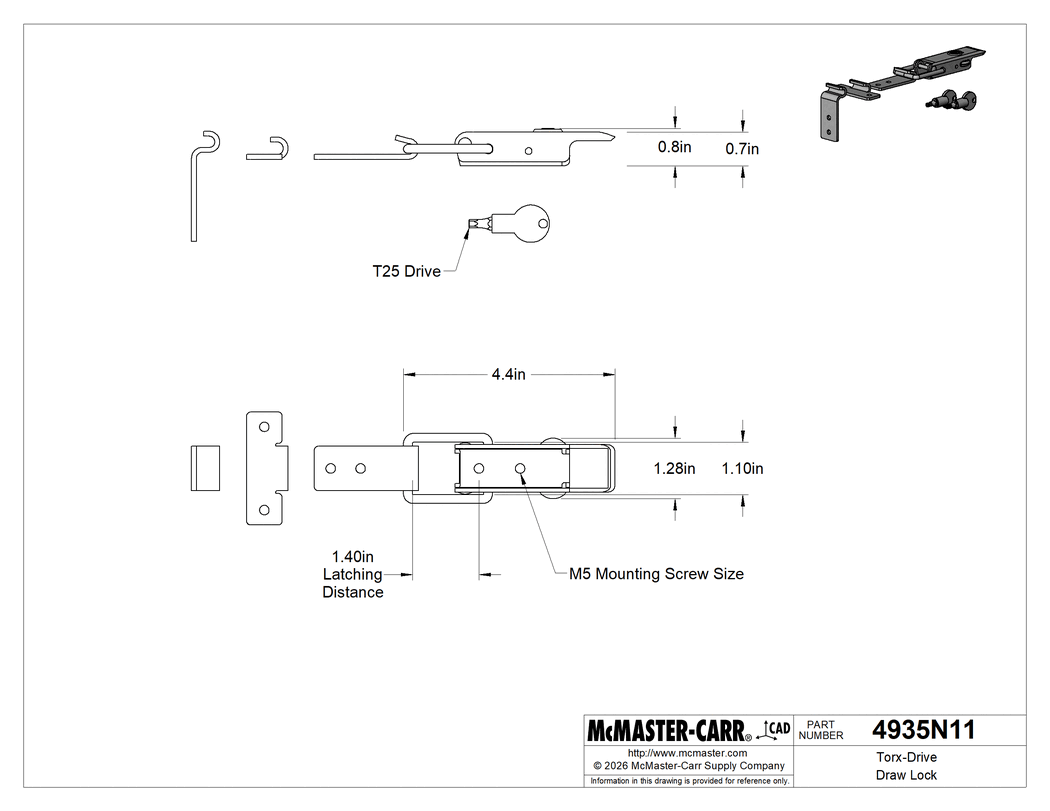

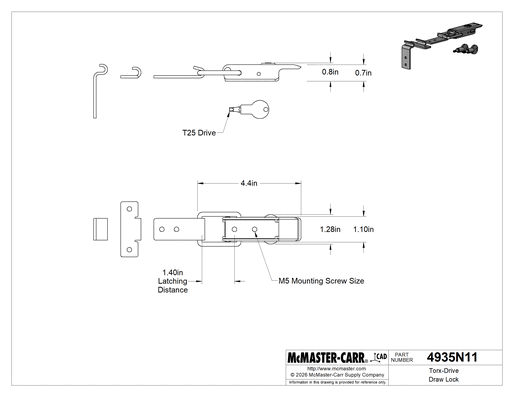

    Technical Drawing of Torx-Drive Draw Lock, Zinc-Plated Steel, 1-3/8" Latching Distance.

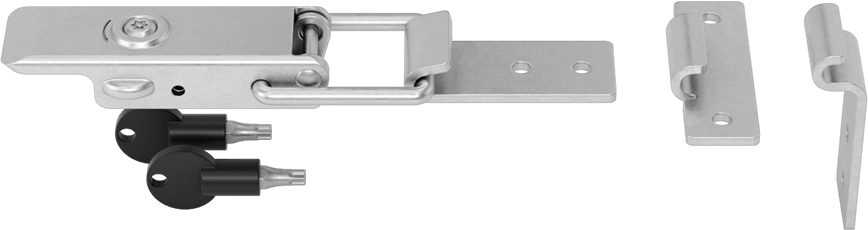

    Image of Product. Front orientation. Torx-Drive Draw Lock, Zinc-Plated Steel, 1-3/8" Latching Distance.

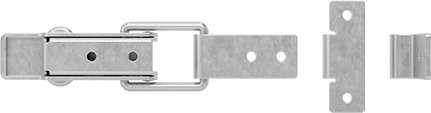

    Image of Product. Back orientation. Torx-Drive Draw Lock, Zinc-Plated Steel, 1-3/8" Latching Distance.
    Image of Product. Side1 orientation. Contains SizingReference. Torx-Drive Draw Lock, Zinc-Plated Steel, 1-3/8" Latching Distance.
    2-D PDF
    000000 each
    4935N11
    In stock
    4935N11
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Includes

    Three Strike Plates

    Material

    Zinc-Plated Steel

    Appearance

    Dull

    Latching Distance

    1 3/8"

    Overall

    Length

    4 7/16"

    Width

    1 1/2"

    Projection

    13/16"

    Weight Capacity

    990 lb.

    Mounting

    Type

    Screw On

    Location

    Surface

    Fasteners Included

    No

    Screw Size

    M5

    Drive Size

    T25

    Number of Keys Included

    2

    Draw Latch Type

    Keyed

    Drive Style

    Tamper-Resistant Torx

    Latching Distance Adjustability

    Fixed

    Opens With

    Torx Key

    Country of Origin

    United Kingdom

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    830249.7500

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Related Product

    Replacement Keys

    Open these locks with a Torx driver or the included Torx keys. Also known as tension locks, these draw locks pull two surfaces together and hold them closed. They come with three strike plates, so they’re good for different mounting options.
