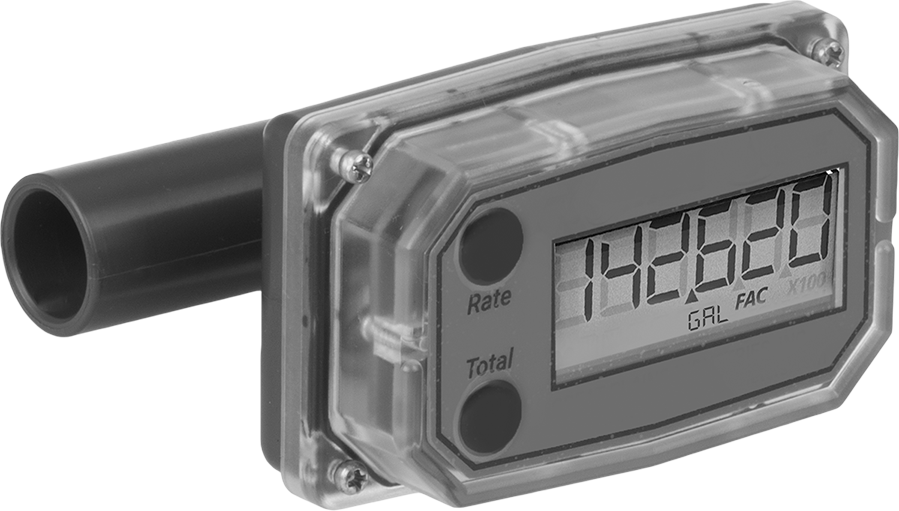

Socket-Connect Flowmeter/Totalizer
Turbine Flow Management, 3/4 Male Pipe Size
Flow Measurement Type | Turbine |
Body Material | PVC |
Fitting Material | PVC |
Seal Material | 316 Stainless Steel |
Display Type | Digital |
Connections | 3/4 Male |
Flow | 2 gpm to 20 gpm |
Pipe Schedule | 80 |
End-to-End Length | 4 7/16" |
Accuracy | ±3% |
Maximum Volume Displayed | |
Total | 999,999 Gallons |
Batch | 999,999 Gallons |
Maximum Pressure @ Temperature | 225 psi @ 70° F |
Temperature | |
Minimum | 33° F |
Maximum | 140° F |
Mounting Position | Any Angle |
Batteries Included | Yes |
Battery Life | 2 yr. |
Battery Size | AAA |
Calibration Media | |
Specific Gravity | 1 |
Calibrated with | Water |
Connects To | Pipe |
Field Recalibratable | Yes |
Fitting Connection | Socket Connect |
Flow Measurement Unit | Gallons per Minute |
For Use With | Liquids |
Mounting Location | Inline |
Number of Batteries Required | 2 |
Reset Type | No Reset |
Resolution | 0.001 |
Totalization Type | Batch, Cumulative |
Warning Message | Chemical compatibility must be determined by the customer based on the conditions in which the product is being used, including the presence of other chemicals, temperature, and consistency. |
Wetted Parts Material | 316 Stainless Steel, Ceramic, PVC, PVDF, Tungsten Carbide |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 902610.5000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Additional Specifications | |
Related Product |
The unthreaded ends of these flowmeter/totalizers install into a PVC piping system, so you can measure the flow rate and volume of liquid passing through your system. Bond the joint together with PVC cement and primer. You can reset the batch total, but you can't reset the cumulative total. They measure flow correctly no matter the mounting orientation.
These flowmeter/totalizers are calibrated with water.
Turbine Flow Measurement—Turbine flowmeter/totalizers measure flow by counting how many times their turbine turns as liquid passes through. To avoid clogging the turbine and other damage, use them only with clean, low-viscosity liquids. You can recalibrate them in the field to other liquids, pipe, and operating conditions.

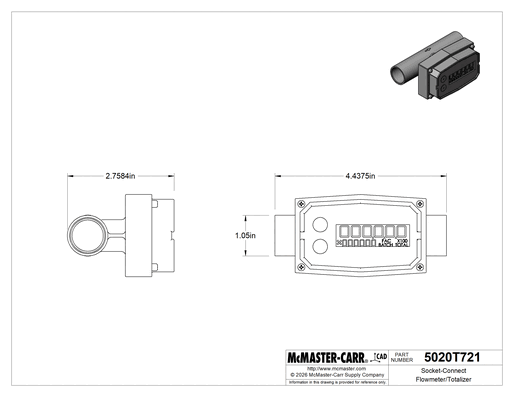

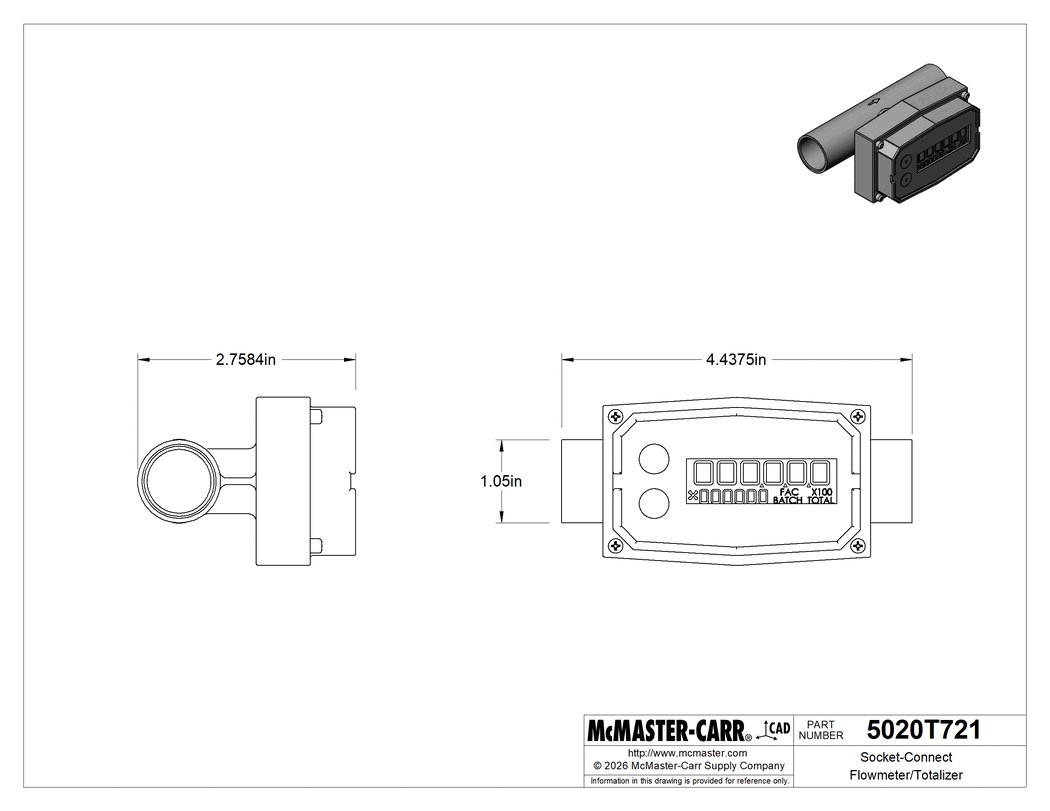

The information in this 3-D model is provided for reference only.
