    Easy-Install High-Pressure Brass Pipe Fitting

    90 Degree Connector with Hex Drive, 1/8 NPTF Female

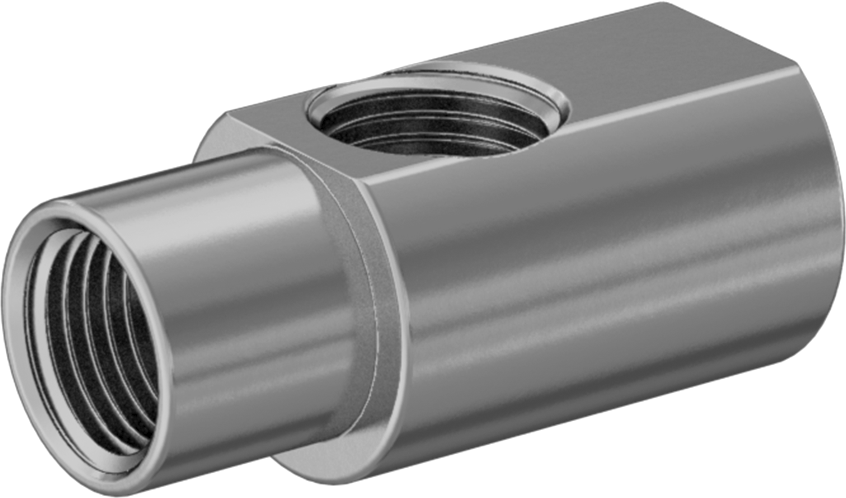

    Image of Product. Front orientation. Easy-Install High-Pressure Brass Pipe Fitting, 90 Degree Connector with Hex Drive, 1/8 NPTF Female.

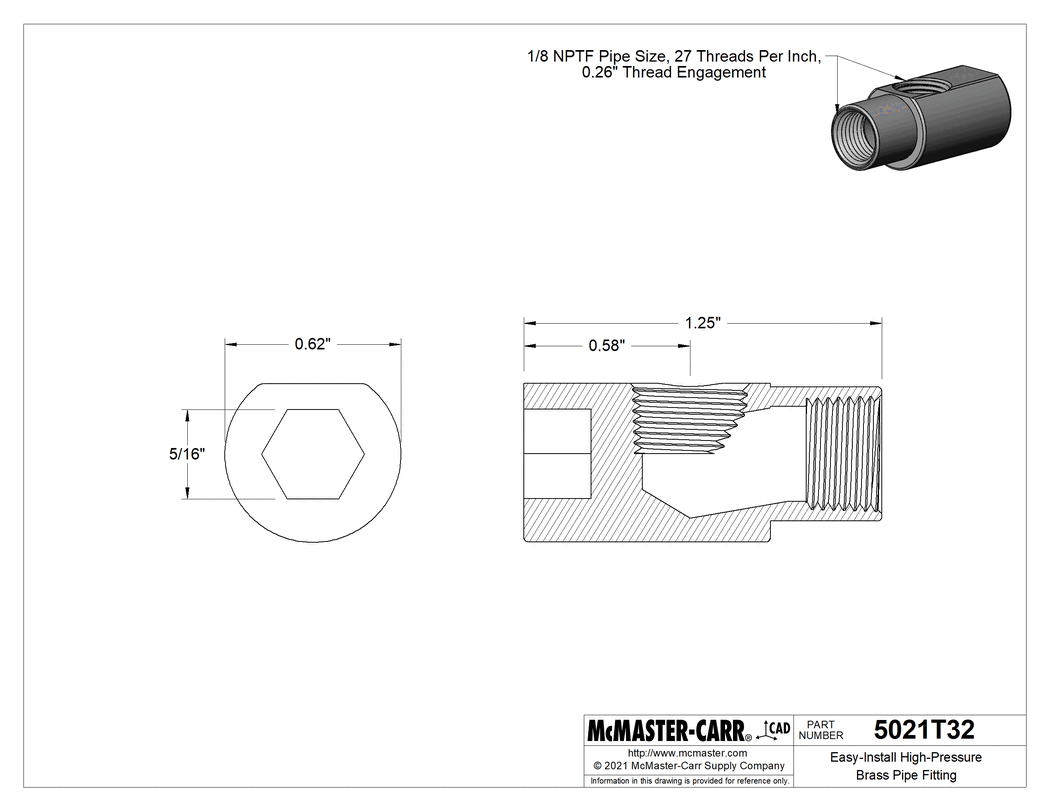

    Technical Drawing of Easy-Install High-Pressure Brass Pipe Fitting, 90 Degree Connector with Hex Drive, 1/8 NPTF Female.

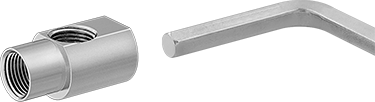

    Image of ProductInUse. NPTF Female. Front orientation. Easy-Install High-Pressure Brass Pipe Fitting, 90 Degree Connector with Hex Drive, 1/8 NPTF Female.
    NPTF Female
    2-D PDF
    00000 each
    5021T32
    In stock
    5021T32
    00000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Pressure Rating

    High Pressure

    Shape

    90° Elbow

    Drive Style

    Hex

    Fitting Type

    Connector

    Fitting Connection

    NPTF Female

    Pipe Size

    1/8

    Material

    360 Brass

    Maximum Pressure @ Temperature

    1,000 psi @ 72° F

    Maximum Steam Pressure @ Temperature

    1,000 psi @ 250° F

    Connects To

    Pipe

    Drive Size

    5/16"

    Fabrication

    Machined

    For Use With

    Air, Natural Gas, Oil, Steam, Water

    Performance

    Corrosion Resistant, Easy Install

    System of Measurement

    Inch

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant with Exemptions

    RoHS Exemptions

    6(c)

    Schedule B Number

    741220.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Install and remove these fittings with a socket wrench or hex key (sold separately). They are compact, so they require less clearance than traditional elbows. Use them in high-pressure applications. Fittings are brass for good corrosion resistance.

    NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.
