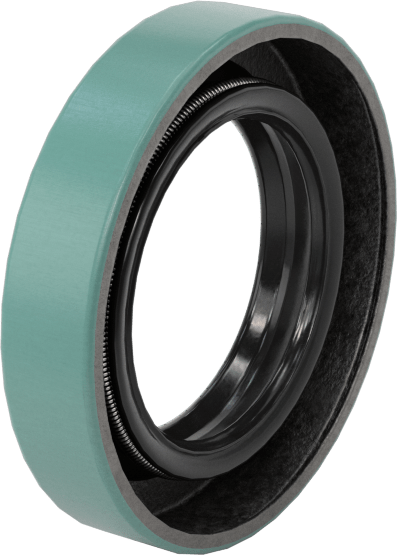

Spring-Loaded Rotary Shaft Seal
with Wiper Lip, for 3/4" Shaft Diameter, 10 PSI Maximum Pressure
Material | Buna-N |
Material | |
Case | Steel |
Spring | Steel |
Loaded Type | Spring |
For Shaft Diameter | 3/4" |
Seal | |
ID | 0.750" |
OD | 1.250" |
Width | 0.250" |
For Bore | |
Diameter | 1.250" |
Minimum Width | 0.272" |
Maximum Rotation Speed | 3,900 rpm |
Maximum Pressure | 10 psi |
Temperature Range | -40° F to 210° F |
Hardness | Durometer 80A (Hard) |
Color | Black |
Case | |
Finish | Acrylic Coated |
Color | Green |
Specifications Met | DIN 3760, ISO 6194 |
For Motion | Rotary |
For Sealing | Shafts |
For Use With | Animal Oil |
Reinforcement Type | Case |
System of Measurement | Inch |
Country of Origin | Mexico |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (11/07/2024, 242 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 848420.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Used to retain oil on rotating shafts in motors, pumps, bearings, and gearboxes, these seals have a secondary lip that blocks contaminants. Also known as oil seals, a spring secures the lip against the shaft, preventing messy leaks. Press-fit seals into the bore around the shaft. Seals with a maximum pressure of 50 psi should be secured with a retaining ring.
Note: Maximum performance values cannot be achieved simultaneously; for example, speed is affected by pressure, temperature, and other operating conditions.
Acrylic-Coated Case—Seals with an acrylic-coated case have a coating that compensates for surface imperfections in the housing bore for a tight seal on the OD.

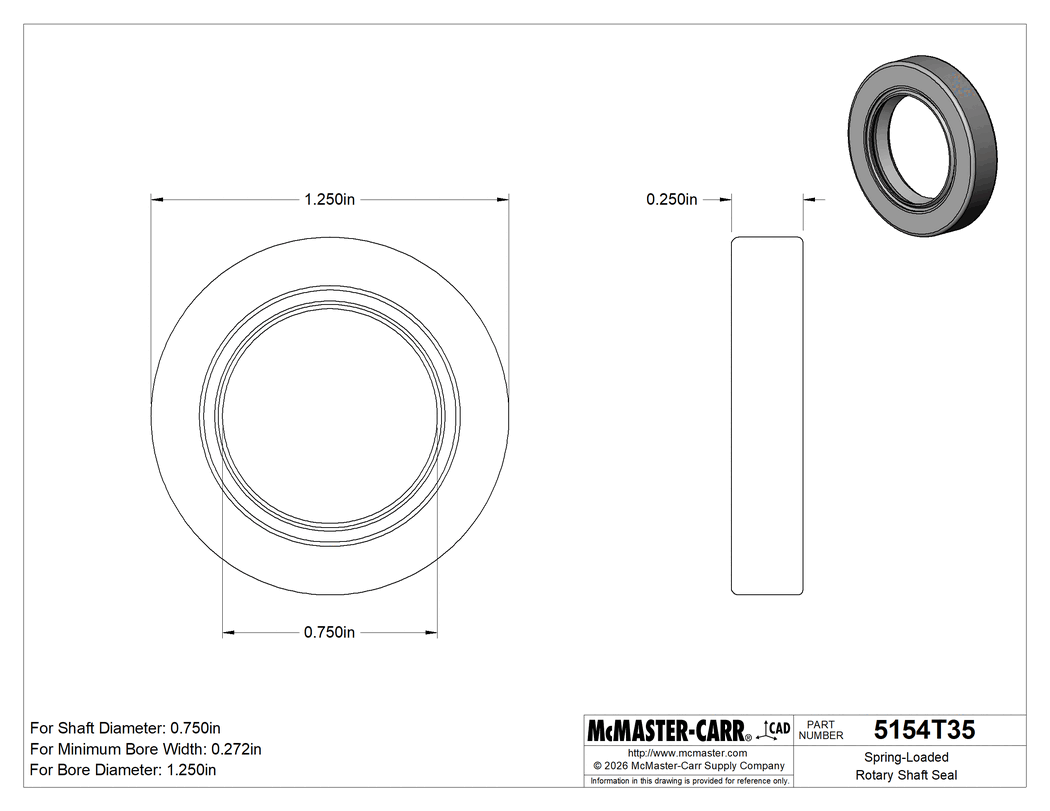

The information in this 3-D model is provided for reference only.
