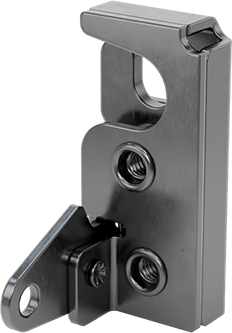

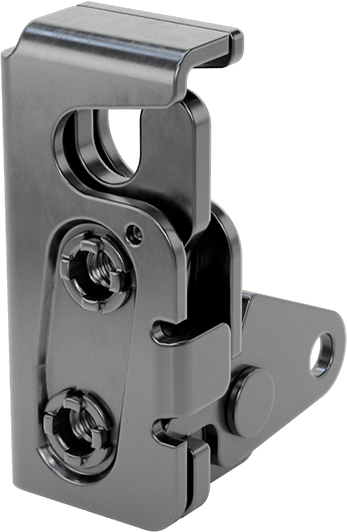

Remote-Release Rotary Latch
300 Series Stainless Steel, Right-Side Door Mount
Material | 300 Series Stainless Steel |
Appearance | Dull |
Door Mounting Location | Right Side |
Style | C |
Maximum Pull Strength | 750 lbf |
Number of Latch Points | 1 |
Length | 2 1/2" |
Width | 1 1/8" |
Depth | 9/16" |
Maximum Latching Distance | 5/8" |
Strike Bolt | |
Diameter | 3/8" |
Length | 1 1/2" |
Projection | 1" |
Thread Size | 5/16"-18 |
Material | Zinc-Plated Steel |
Latch Point Hole Diameter | 1/4" |
Mount Type | Screw On |
Mounting Fasteners Included | No |
Mounting Hole | |
Thread Size | 1/4"-20 |
Center-to-Center | 7/8" |
Mounting Location | Surface |
Performance | Remote Release |
Push-to-Close Latch Type | Nonlocking |
Temperature | -40° F to 185° F |
Country of Origin | China, Mexico, United States |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/23/2024, 240 SVHC) Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 830249.7500 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Related Product |
Mount your handle where it’s easy to reach even if your latch is not. These latches connect to a handle with a cable or rod (not included), so you can open them remotely. To close, push them in, and they firmly grip the strike bolt on your door to hold it shut. They’re a heavier duty alternative to standard push-to-close latches for use in higher capacity applications. Also known as single-stage rotary latches, these latches only have one latching position to keep them closed. Push them hard to make sure they don’t accidentally open.
300 Series Stainless Steel—300 series stainless steel latches won’t rust in damp or humid environments.

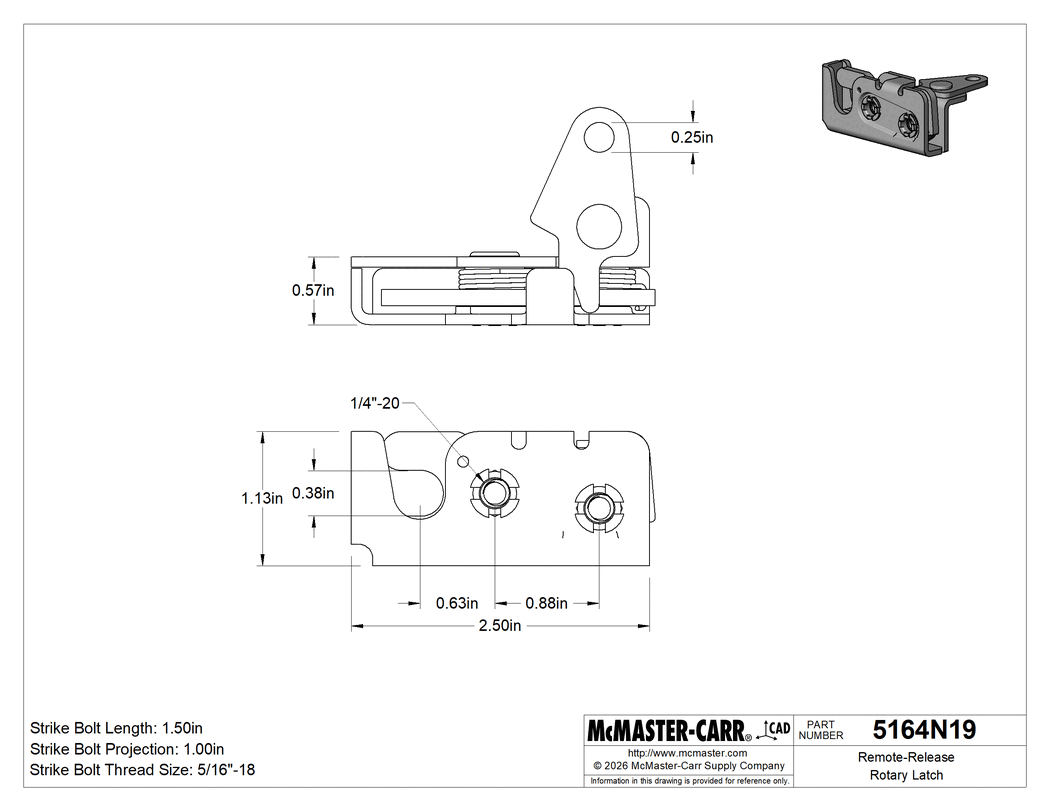

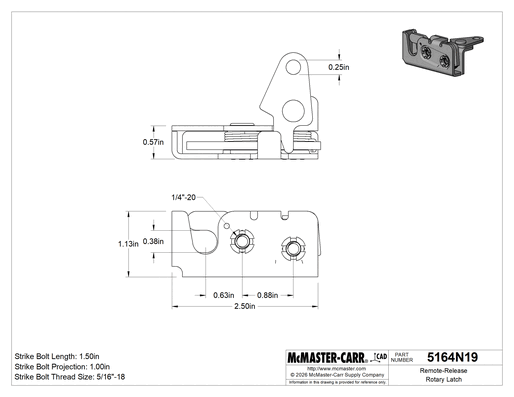

The information in this 3-D model is provided for reference only.
