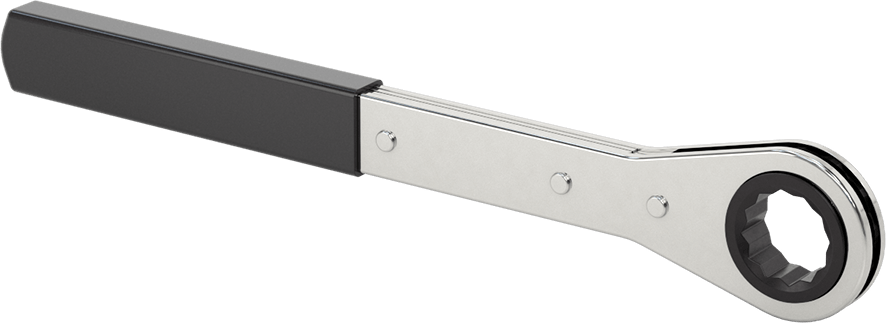

12-Point Opening Ratcheting Box Wrench
24 mm Size, 12" Overall Length

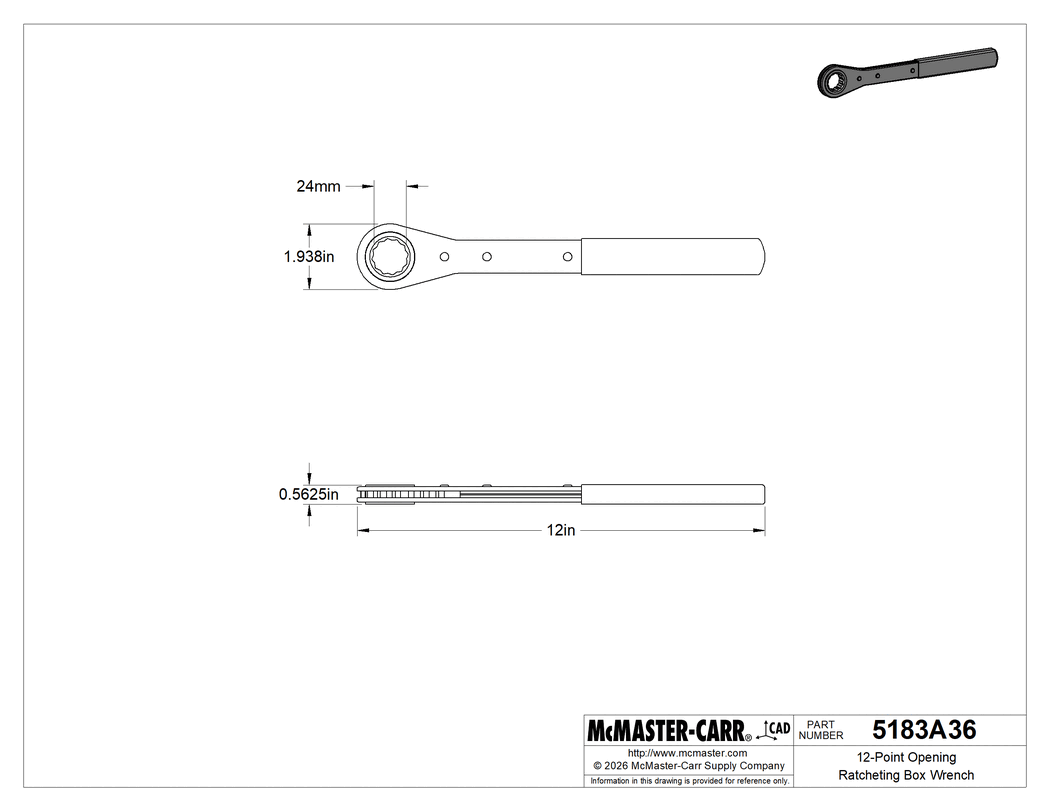

2-D PDF
000000 each
5183A36
In stock
5183A36
000000 each
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Wrench Opening Shape | 12-Point Opening |
Drive Size | 24 mm |
Overall Length | 12" |
Head OD | 1 15/16" |
Head Thk. | 9/16" |
Turn Req. to Ratchet | 20° |
Material | Chrome-Plated Steel |
Appearance | Polished |
Grip Material | Plastic |
Military Specification | Fed. Spec. GGG-W-001405 |
For Drive Style | External 12-Point, External Hex |
For Use With | Screws and Nuts |
Head Style | Standard |
Number of Heads | 1 |
Ratcheting | Ratcheting |
Sold As | Individual |
System of Measurement | Metric |
Wrench Style | Box |
Wrench Type | Standard |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 820411.0030 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
A ratchet mechanism allows you to turn fasteners in tight spaces without removing and repositioning the wrench.
Turn Required to Ratchet—The smaller the turn required to ratchet, the less clearance you need to engage the ratchet.
The information in this 3-D model is provided for reference only.
