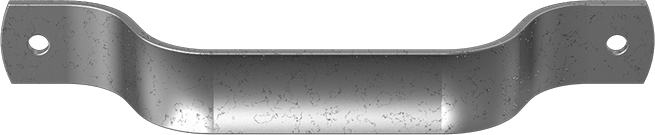

Unthreaded-Hole Rectangular Pull Handle
Dull 304 Stainless Steel, 5-3/4" Center-to-Center Width
Style | 7 |
Mount Type | Unthreaded Through Hole |
Grip | |
Style | Rectangular |
Height | 7/8" |
Thickness | 1/4" |
Material | 304 Stainless Steel |
Appearance | Dull |
Mounting Hole | |
Number of | 2 |
Center-to-Center Width | 5 3/4" |
Projection | 1 1/4" |
Pull Capacity | Not Rated |
Mounting Screw Size | 1/4" |
Mounting Fasteners Included | No |
Handle Style | Pull |
System of Measurement | Inch |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 830242.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Fasten these handles directly to the front of your surface to open and close a variety of doors and drawers, including those on furniture, machines, and equipment.
Style 7—Style 1-20 handles have an unthreaded through hole. Mount them from the front of your surface.
Rectangular Grip—Rectangular grips have a flat surface that keeps your hand from slipping, but may be less comfortable than round and oval grips.
304 Stainless Steel—Stainless steel handles have excellent corrosion resistance, making them the best choice for harsh environments. They also have good chemical resistance.

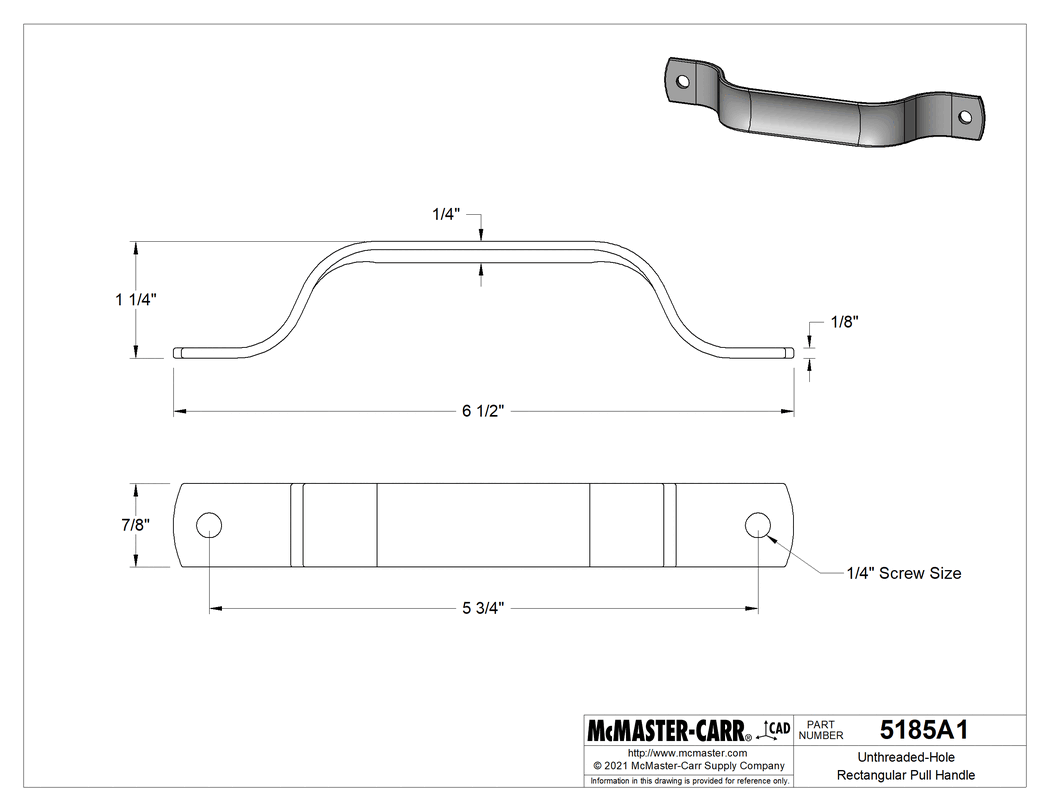

The information in this 3-D model is provided for reference only.
