    Panel-Mount Fiber-Optic Adapter

    ST Female x ST Female, for Multimode Om1, Om2, Om3, Om4

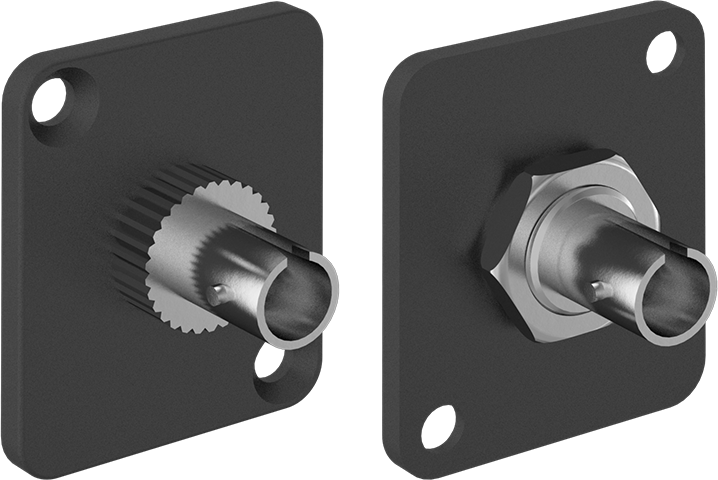

    Image of Product. Front orientation. Contains MultipleImages. Panel-Mount Fiber-Optic Adapter, ST Female x ST Female, for Multimode Om1, Om2, Om3, Om4.

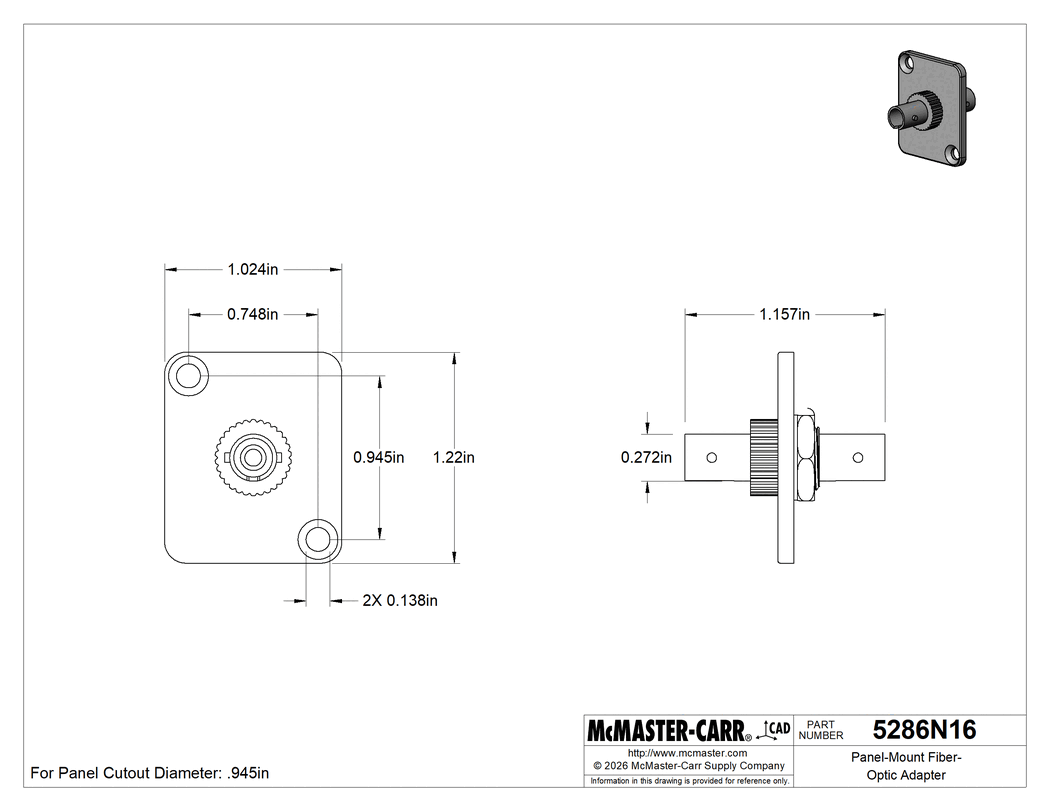

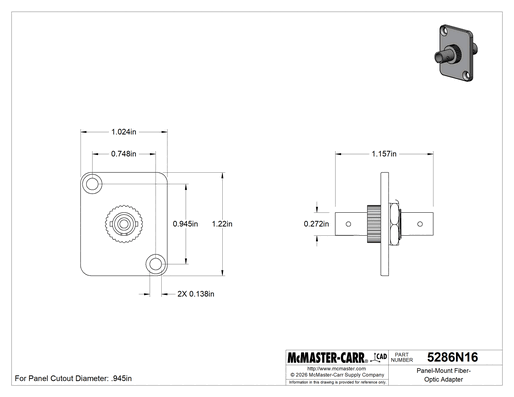

    Technical Drawing of Panel-Mount Fiber-Optic Adapter, ST Female x ST Female, for Multimode Om1, Om2, Om3, Om4.
    2-D PDF
    000000 each
    5286N16
    In stock
    5286N16
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Connections

    ST Female × ST Female

    For Cable Designation

    Multimode OM1, Multimode OM2, Multimode OM3, Multimode OM4

    For Panel Cutout Diameter

    0.945"

    Mounting

    Location

    Panel

    Hole Diameter

    0.14"

    Fasteners Included

    Yes

    Number of Fasteners Included

    2

    Housing Material

    Plastic

    Electrical Connector Component

    Adapter

    Shape

    Straight

    Signal Type

    Data

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant with Exemptions

    RoHS Exemptions

    6(c)

    Schedule B Number

    853669.5050

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Connect two fiber-optic cords that have the same gender and connection type. These adapters mount to panels of any thickness, as long as you drill a mounting hole first.

    The information in this 3-D model is provided for reference only.
