    Box Wrench

    12-Point Opening, 15/16" Size, 7-7/8" Overall Length

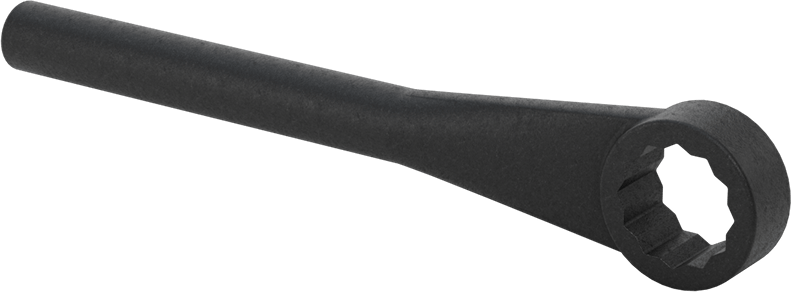

    Image of Product. Front orientation. Box Wrench, 12-Point Opening, 15/16" Size, 7-7/8" Overall Length.

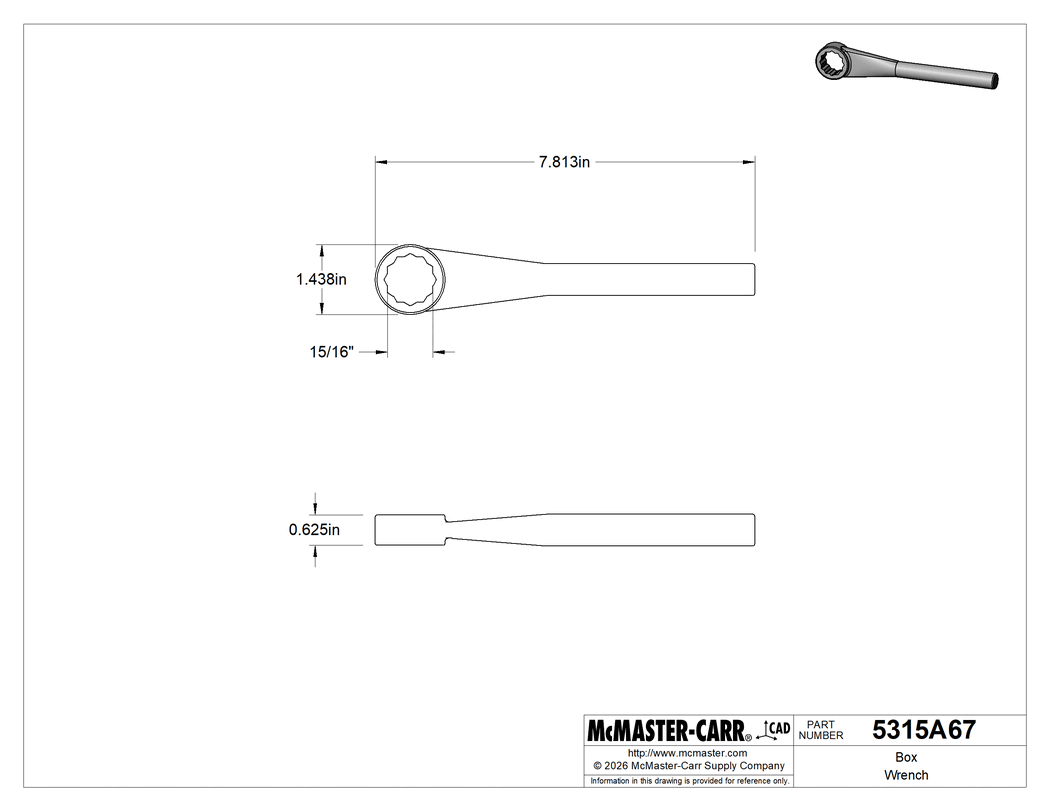

    Technical Drawing of Box Wrench, 12-Point Opening, 15/16" Size, 7-7/8" Overall Length.
    Image of Product. Side1 orientation. Contains SizingReference. Box Wrench, 12-Point Opening, 15/16" Size, 7-7/8" Overall Length.
    2-D PDF
    000000 each
    5315A67
    In stock
    5315A67
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Wrench Opening Shape

    12-Point Opening

    Drive Size

    15/16"

    Overall Length

    7 7/8"

    Head Thk.

    5/8"

    Material

    Black-Oxide Steel

    Specifications Met

    ASME B107.100

    For Drive Style

    External 12-Point, External Hex

    For Use With

    Screws and Nuts

    Head Style

    Standard

    Number of Heads

    1

    Ratcheting

    Nonratcheting

    Sold As

    Individual

    System of Measurement

    Inch

    Wrench Style

    Box

    Wrench Type

    Standard

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    820411.0030

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    The information in this 3-D model is provided for reference only.
