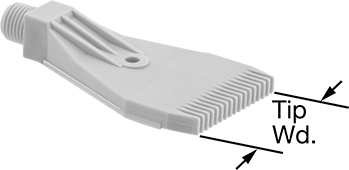

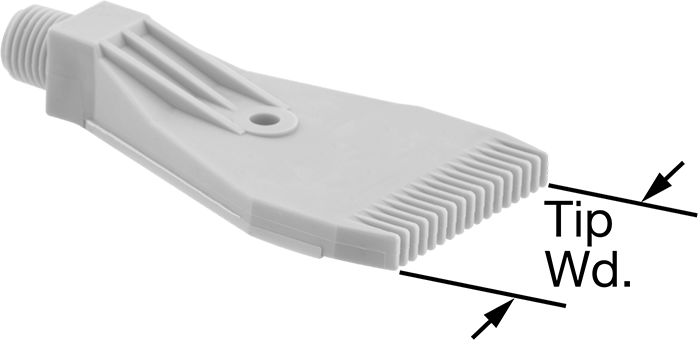

Wide-Airflow Air Nozzle
ABS, 1/4 NPT Male

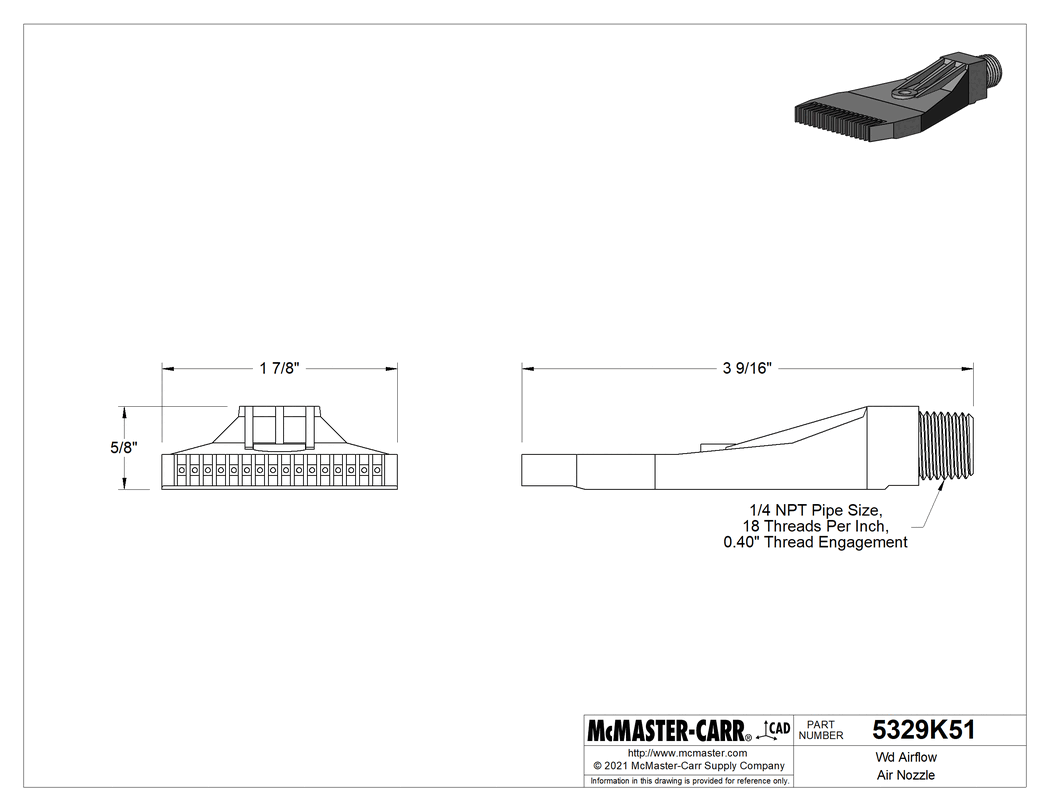

2-D PDF
000000 each
5329K51
In stock
5329K51
000000 each
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Style | C |
Air Inlet | |
Connection Port | Pipe |
Connection | Threaded |
Pipe Size | 1/4 |
Thread Type | NPT |
Gender | Male |
Thread Length | 1/4" |
Threads per Inch | 18 |
Thread Engagement | 0.4" |
Material | ABS |
Air Consumption @ Pressure | 33 ft³/min @ 100 psi |
Maximum Temperature | 170° F |
Volume @ Pressure | 85 dBA @ 80 psi |
Tip | |
Width | 1 7/8" |
Thickness | 1/4" |
Overall Length | 3 9/16" |
Maximum Inlet Pressure | 100 psi |
Specifications Met | OSHA Compliant 29 CFR 1910.95 |
Airflow Adjustability | Fixed |
Airflow Pattern | Wide |
Component | Air Nozzle |
For Use With | Compressed Air |
Nozzle Type | Straight |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (11/05/2025, 251 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 842490.9500 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
The flat nozzle tip distributes air over a wider area than focused-airflow nozzles.
OSHA Compliant 29 CFR 1910.95—Nozzles that are OSHA Compliant 29 CFR 1910.95 conform to requirements for noise.
Volume @ Pressure—Volume (dBA) is measured 3 ft. from the nozzle at 80 psi.
The information in this 3-D model is provided for reference only.
