    Strong-Hold Bit Adapter for Ratchet Wrenches

    with Quick-Change Chuck, 1/4" Square Drive, 1/4" Hex Shank

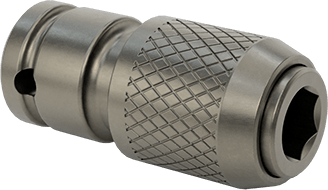

    Image of Product. Front orientation. Strong-Hold Bit Adapter for Ratchet Wrenches, with Quick-Change Chuck, 1/4" Square Drive, 1/4" Hex Shank.

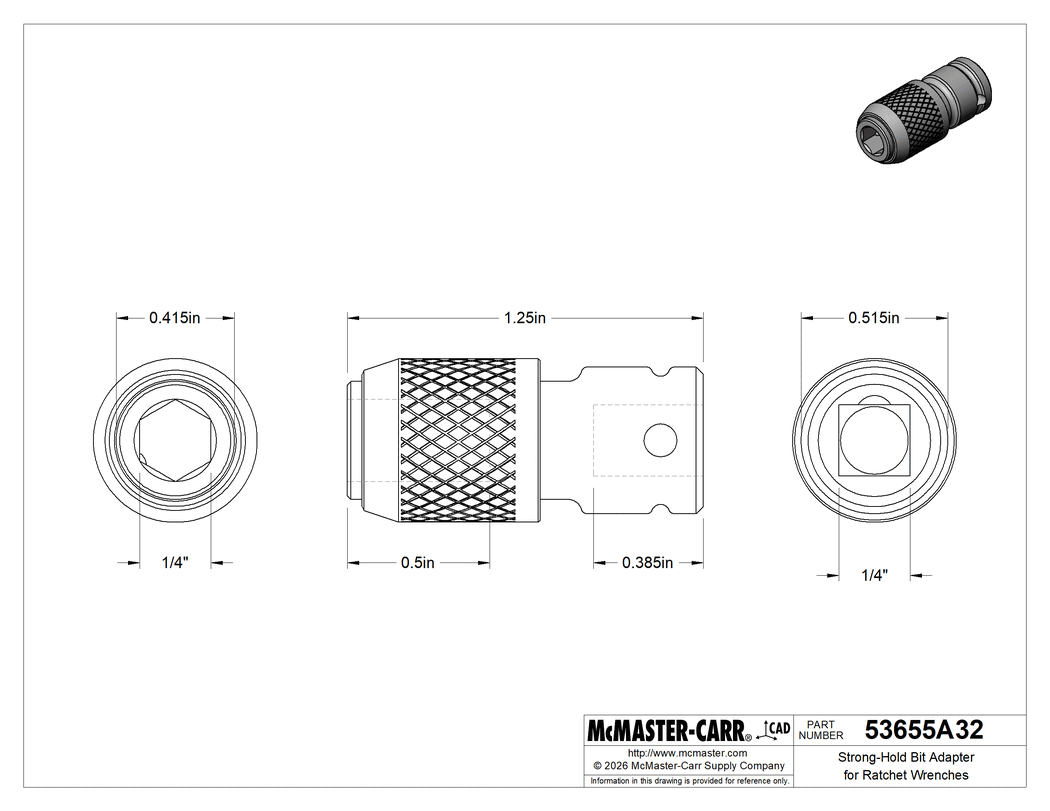

    Technical Drawing of Strong-Hold Bit Adapter for Ratchet Wrenches, with Quick-Change Chuck, 1/4" Square Drive, 1/4" Hex Shank.

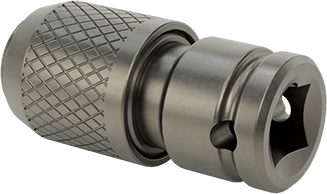

    Image of Product. Back orientation. Strong-Hold Bit Adapter for Ratchet Wrenches, with Quick-Change Chuck, 1/4" Square Drive, 1/4" Hex Shank.

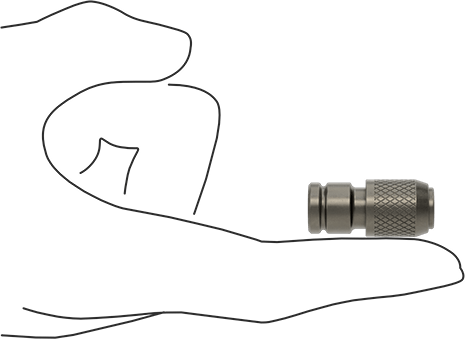

    Image of Product. Side1 orientation. Contains SizingReference. Strong-Hold Bit Adapter for Ratchet Wrenches, with Quick-Change Chuck, 1/4" Square Drive, 1/4" Hex Shank.
    2-D PDF
    000000 each
    53655A32
    In stock
    53655A32
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Performance

    Strong Hold

    For Use With

    Ratchet Wrenches

    Bit-Holding Mechanism

    Quick-Change Chuck

    Square Drive Size

    1/4"

    For Bit Shank Type

    Hex, Quick-Change Hex

    For Bit Hex Shank Size

    1/4"

    Overall Length

    1 1/4"

    Material

    Steel

    Country of Origin

    Czech Republic

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    846610.0175

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Lock your bit into the adapter to prevent accidental disengagement. These adapters fit square-drive tools and accept hex-shank screwdriver bits. They have nonmagnetic bit holders, so they won’t attract loose metal parts and shavings.

    Quick-Change Chuck—To secure a bit in adapters with quick-change chuck, pull back on the chuck to insert the bit and then push it forward to lock the bit place.

    The information in this 3-D model is provided for reference only.
