    Open-End Wrench for Hole Alignment

    1-1/4" Size, 19" Overall Length

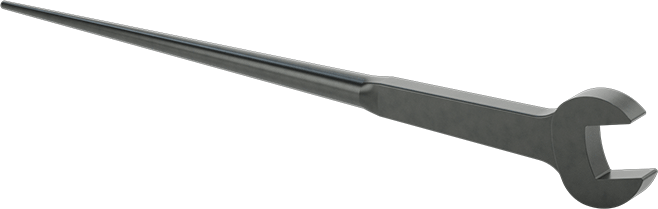

    Image of Product. Front orientation. Open-End Wrench for Hole Alignment, 1-1/4" Size, 19" Overall Length.

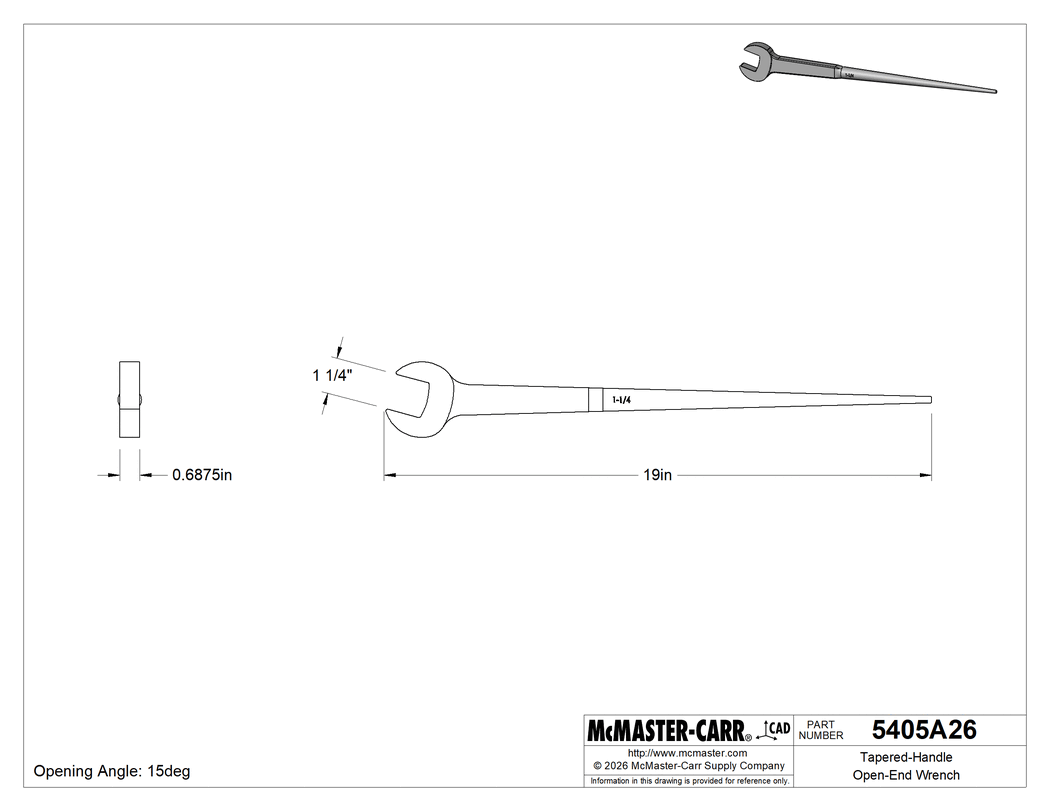

    Technical Drawing of Open-End Wrench for Hole Alignment, 1-1/4" Size, 19" Overall Length.
    Image of Product. Side1 orientation. Contains SizingReference. Open-End Wrench for Hole Alignment, 1-1/4" Size, 19" Overall Length.
    2-D PDF
    000000 each
    5405A26
    In stock
    5405A26
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Number of Heads

    1

    Relative Length

    Standard

    Application

    Hole Alignment

    Head Style

    Standard

    Wrench Opening Shape

    Round

    Drive Size

    1 1/4"

    Overall Length

    19"

    Opening Angle

    15°

    Head Thickness

    11/16"

    Material

    Black-Oxide Steel

    Specifications Met

    ASME B107.100

    For Drive Style

    External Square, External Hex

    For Use With

    Screws and Nuts

    Ratcheting

    Nonratcheting

    System of Measurement

    Inch

    Wrench Style

    Open End

    Wrench Type

    Standard

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    820411.0030

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Line up holes with the pointed end to smoothly insert bolts, then flip these wrenches over to tighten them in no time. They’re often used to align girders or beams in steel framing, repair machinery, and assemble pipelines. Also known as spud, structural, and construction wrenches.

    Round Opening—The rounded edges spread force evenly to prevent stripping your fasteners. Use them on hex-head fasteners.

    Black-Oxide Steel—The dark, matte coating protects these wrenches from wear and won't flake off. They offer minimal corrosion resistance, though, so they're best for dry environments.

    The information in this 3-D model is provided for reference only.
