    Double Open-End Wrench

    Dull Chrome Plated, 21 mm x 23 mm Size, 10-1/8" Overall Length

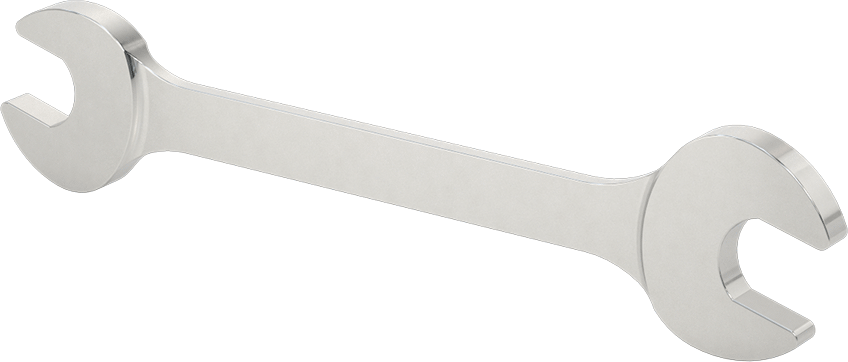

    Image of Product. Front orientation. Double Open-End Wrench, Dull Chrome Plated, 21 mm x 23 mm Size, 10-1/8" Overall Length .

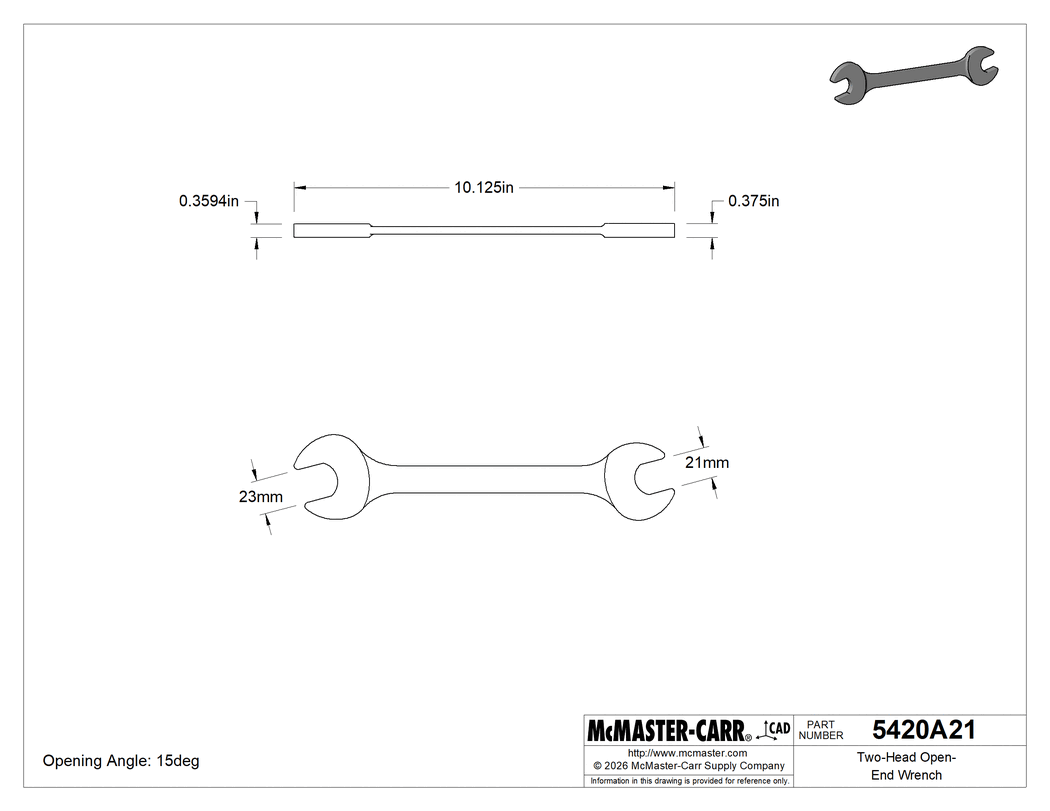

    Technical Drawing of Double Open-End Wrench, Dull Chrome Plated, 21 mm x 23 mm Size, 10-1/8" Overall Length .
    Image of Product. Side1 orientation. Contains SizingReference. Double Open-End Wrench, Dull Chrome Plated, 21 mm x 23 mm Size, 10-1/8" Overall Length .
    2-D PDF
    000000 each
    5420A21
    In stock
    5420A21
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Number of Heads

    2

    Relative Length

    Standard

    Wrench Opening Shape

    Round Opening

    Material

    Chrome-Plated Steel

    Drive Size

    21 mm × 23 mm

    Overall Length

    10 1/8"

    Opening Angle

    15°

    Head Thickness

    3/8" × 23/64"

    Appearance

    Dull

    Specifications Met

    ASME B107.100

    For Drive Style

    External Square, External Hex

    For Use With

    Screws and Nuts

    Head Style

    Standard

    Ratcheting

    Nonratcheting

    System of Measurement

    Metric

    Wrench Style

    Open End

    Wrench Type

    Standard

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant

    RoHS Compliance

    Not Compliant

    Schedule B Number

    820411.0030

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Switch between two different-sized fasteners without swapping out your wrenches. The two heads save you time, while reducing the number of tools you need to keep on hand. Drop forged for added strength, these wrenches will be part of your toolbox for life.

    Round Opening—The rounded edges spread force evenly to prevent stripping your fasteners. Use them on hex-head fasteners.

    Chrome-Plated Steel—The most popular finish, these wrenches won't rust or chip. Although they withstand moisture better than black oxide, they don't hold up to harsh chemicals as well as stainless steel.

    Dull—With a textured finish, these wrenches won't slip out of your hands, even when greasy or oily.

    The information in this 3-D model is provided for reference only.
