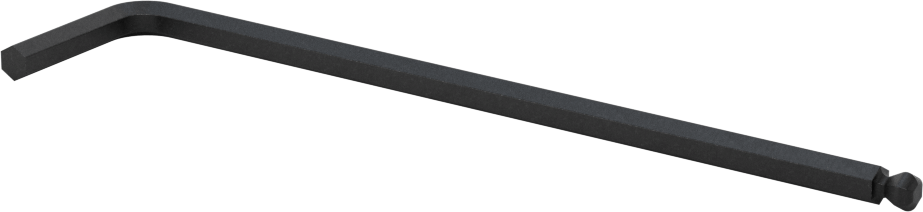

Alloy Steel Angled-Drive Ball-Tip Hex L-Key
Black Phosphate Coated, 4 mm Drive Size, 4.5" Overall Length
Tip Style | Ball |
Driver Style | L-Key |
Material | Alloy Steel |
Drive Style | Hex |
Drive Size | 4 mm |
Length | |
Overall | 4 1/2" |
Relative | Long |
Long Leg | 4 5/16" |
Short Leg | 7/8" |
Ball | |
Location | Single Ball |
Shape | Round |
Color | Black |
Finish | Phosphate Coated |
Maximum Access Angle | 25° |
Driver Type | Standard |
Performance | Angled Drive |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 820411.0060 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Turn screws at an angle when you can’t access them head on. These L-keys have a ball tip on the long leg that engages the drive with less contact than a straight tip. Ball tips are handy for corners and tightly packed areas, such as control panels and junction boxes. However, they don’t grip as tightly as straight tips and may strip the drive of the fastener if you crank them too hard. These L-keys are precision manufactured to tight tolerances.
Alloy Steel—These L-keys handle high torque without bending or breaking, so they’ll last a lifetime.
Long—The most common option, these L-keys have a balanced length for everyday reach and torque.

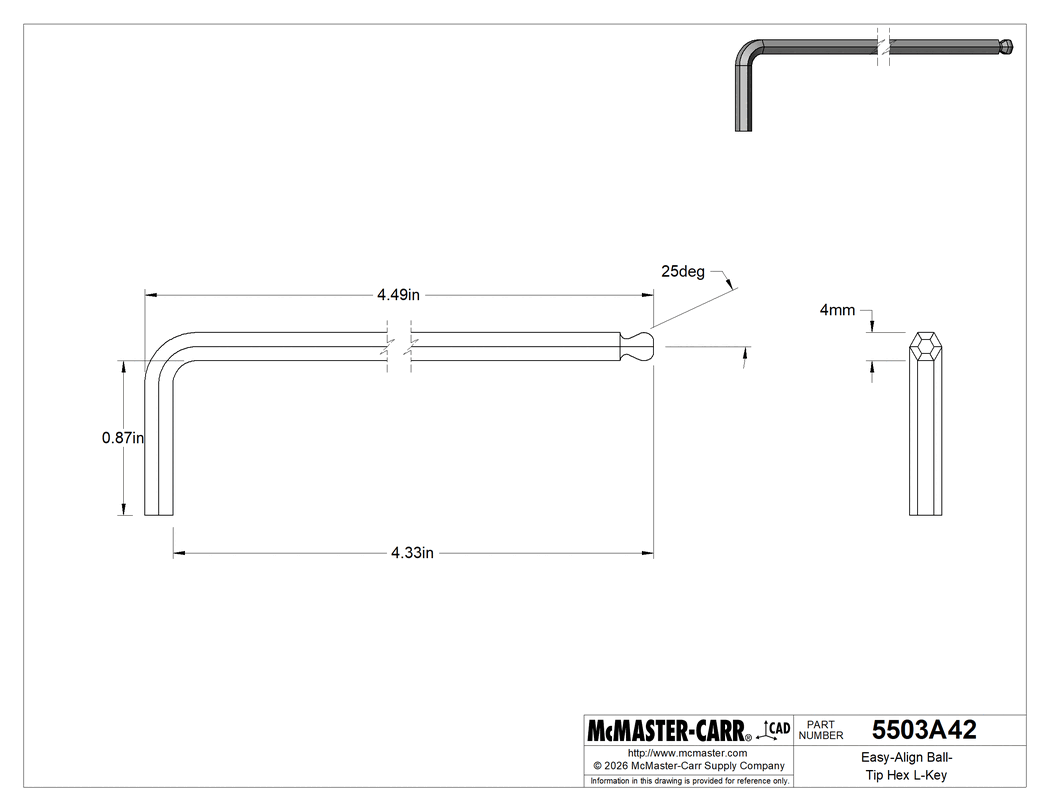

The information in this 3-D model is provided for reference only.
