    Wall-Mount Monitor Stand

    Up/Down Tilt, for 60"-100" Diagonal Monitor Size

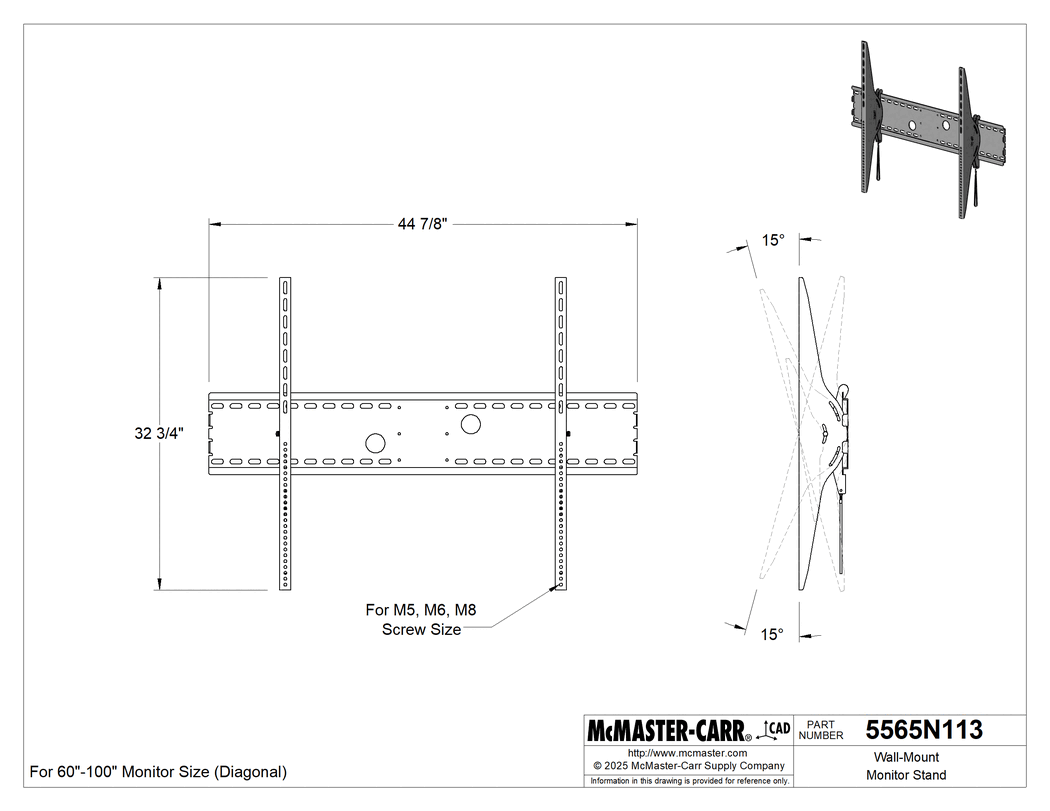

    Technical Drawing of Wall-Mount Monitor Stand, Up/Down Tilt, for 60"-100" Diagonal Monitor Size.
    2-D PDF
    0000000 each
    5565N113
    In stock
    5565N113
    0000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Adjustable Movement

    Up and Down

    For Monitor Size (Diagonal) Range

    60" to 100"

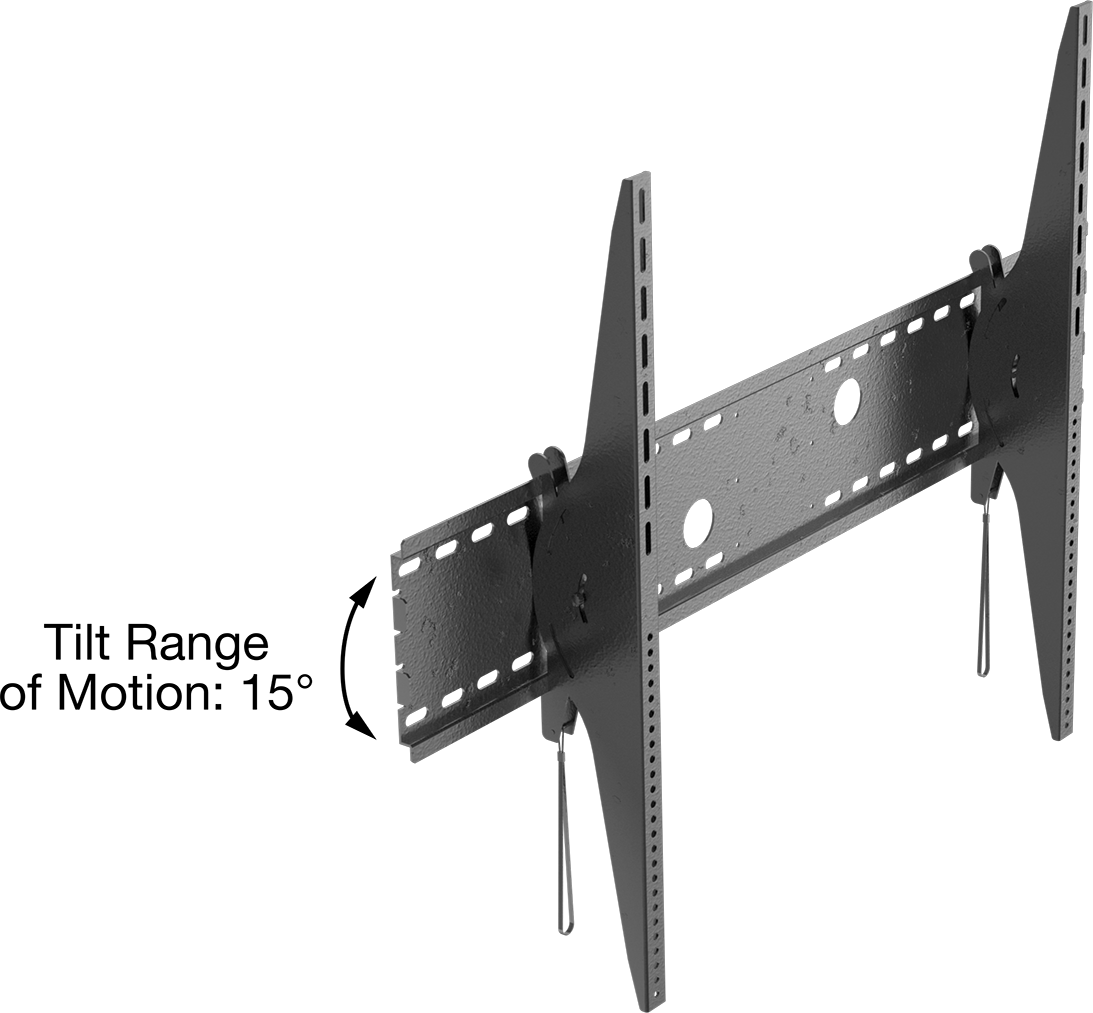

    Tilt Range of Motion

    15°

    Maximum Load Capacity

    350 lb.

    Overall

    Width

    44 7/8"

    Height

    32 3/4"

    Material

    Powder-Coated Steel

    Color

    Black

    Attaching End Mounting Pattern Compatibility

    VESA 100 × 100, VESA 100 × 200, VESA 200 × 100, VESA 200 × 200, VESA 200 × 300, VESA 200 × 400, VESA 200 × 500, VESA 300 × 200, VESA 300 × 300, VESA 300 × 400, VESA 300 × 500, VESA 300 × 600, VESA 300 × 700, VESA 300 × 800, VESA 400 × 200, VESA 400 × 300, VESA 400 × 400, VESA 400 × 500, VESA 400 × 600, VESA 400 × 700, VESA 400 × 800, VESA 500 × 200, VESA 500 × 300, VESA 500 × 400, VESA 500 × 500, VESA 500 × 600, VESA 500 × 700, VESA 500 × 800, VESA 600 × 300, VESA 600 × 400, VESA 600 × 500, VESA 600 × 600, VESA 600 × 700, VESA 600 × 800, VESA 600 × 900, VESA 700 × 300, VESA 700 × 400, VESA 700 × 500, VESA 700 × 600, VESA 700 × 700, VESA 700 × 800, VESA 800 × 300, VESA 800 × 400, VESA 800 × 500, VESA 800 × 600, VESA 800 × 700, VESA 800 × 800, VESA 900 × 400, VESA 900 × 500, VESA 900 × 600, VESA 900 × 700, VESA 900 × 800, VESA 1000 × 400, VESA 1000 × 500, VESA 1000 × 600, VESA 1000 × 700, VESA 1000 × 800

    Mounting Fasteners Included

    Yes

    Certification

    UL Listed

    Attaching End Mount Type

    Unthreaded Hole

    Base

    Mount Type

    Screw On

    Number of Mounting Holes

    36

    Mounting Hole Diameter

    0.375"

    Mounting Location

    Wall

    Country of Origin

    China

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    848790.0080

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Mount flat-panel displays close to a wall. These stands have a standard Video Electronics Standards Association (VESA) mounting hole pattern for compatibility with monitors. After installing your display, tilt these stands up or down to create the best viewing angle. They have a low-profile design for a sleek appearance.

    The information in this 3-D model is provided for reference only.
