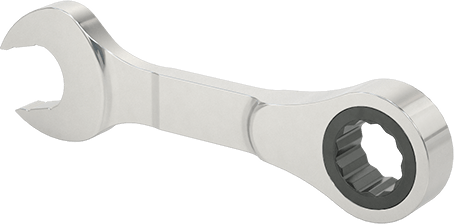

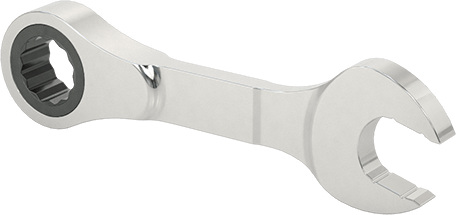

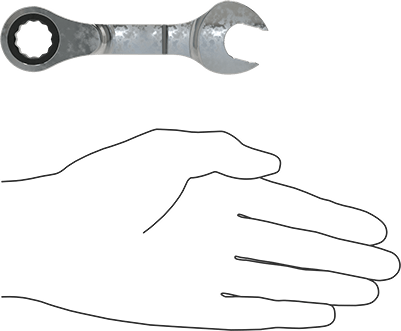

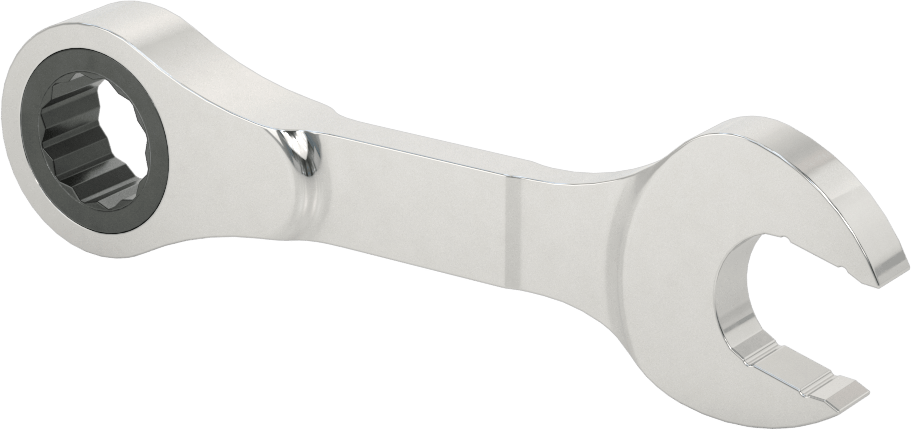

Stubby Ratcheting Combination Wrench
5/8" Size, 4-7/8" Overall Length
Relative Length | Stubby |
Box End | |
Wrench Style | Box |
Wrench Opening Shape | 12-Point |
For Drive Style | External Hex, External 12-Point |
Head Style | Standard |
Head Thickness | 7/16" |
Ratcheting | Ratcheting |
Number of Teeth | 80 |
Material | Chrome-Plated Steel |
Drive Size | 5/8" |
Overall Length | 4 7/8" |
Open End | |
Wrench Style | Open End |
Opening Shape | Round |
For Drive Style | External Square, External Hex |
Head Style | Standard |
Opening Angle | 15° |
Head Thickness | 9/32" |
Ratcheting | Nonratcheting |
Appearance | Polished |
For Use With | Screws and Nuts |
Grade | Industrial |
Number of Heads | 2 |
Performance | Tight Clearance |
System of Measurement | Inch |
Box-End Turn Required to Ratchet | 4.5° |
Wrench Style | Combination |
Wrench Type | Standard |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 820411.0030 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Turn nuts and bolts in tight spaces without removing and repositioning these wrenches. They’re up to 50% shorter than others to squeeze into spots without enough clearance to make full turns, such as engine compartments. When you need more leverage, opt for standard-length ratcheting wrenches.
12-Point Opening—The most common opening, these wrenches work on hex and 12-point nuts and bolts. They slide onto hex heads at more angles than 6-point fasteners for quicker engagement, but they're more likely to slip when you apply more torque.
Chrome-Plated Steel—The most popular finish, these wrenches won't rust or chip. Although they withstand moisture better than black oxide, they don't hold up to harsh chemicals as well as stainless steel.
Polished—The smooth surface is easy to wipe clean of grime. The mirror-like finish lends a high-end look to any toolkit.

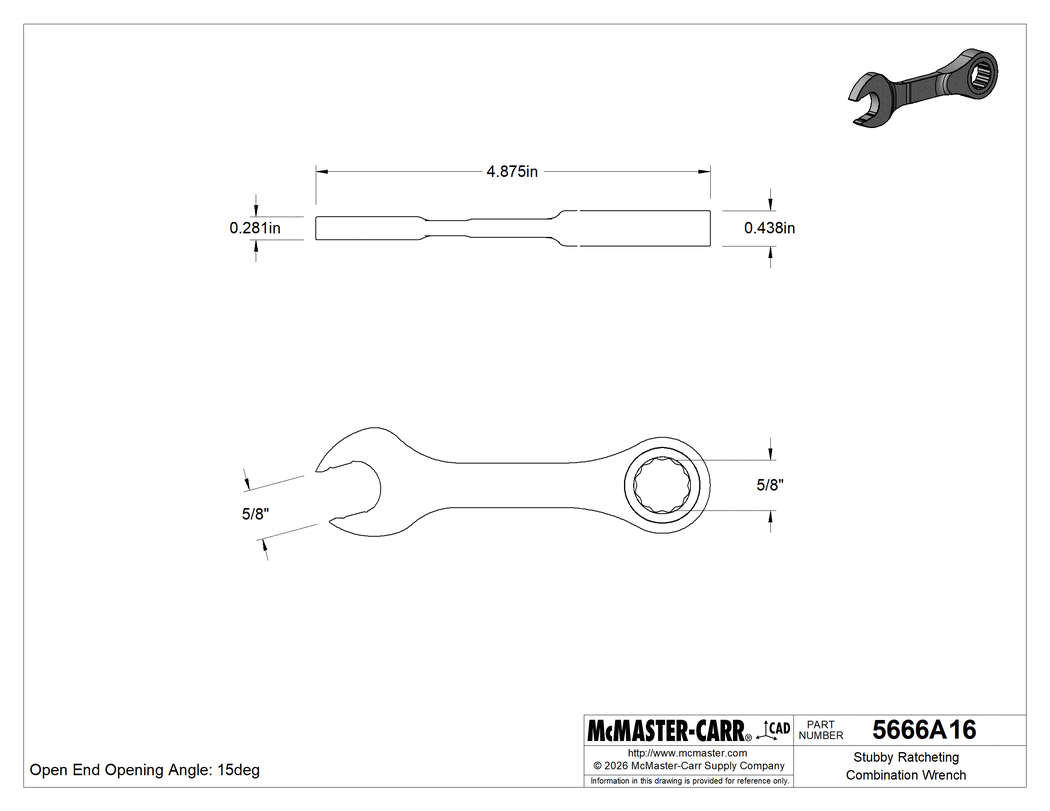

The information in this 3-D model is provided for reference only.
