    Bell

    120V AC, 4-1/4" Diameter

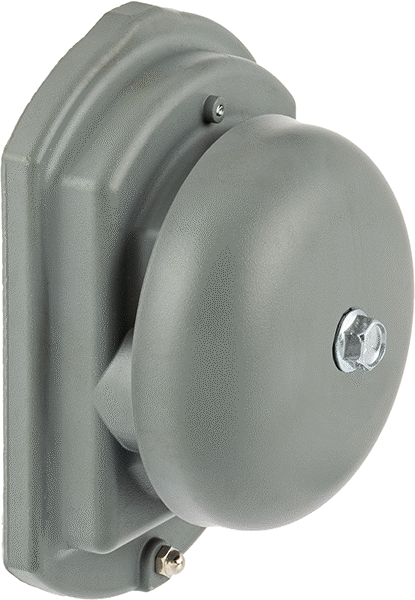

    Image of Product. Front orientation. Bell, 120V AC, 4-1/4" Diameter.

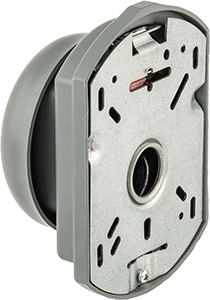

    Image of Product. Back orientation. Bell, 120V AC, 4-1/4" Diameter.

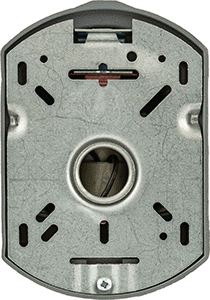

    Image of Product. Back orientation. Bell, 120V AC, 4-1/4" Diameter.

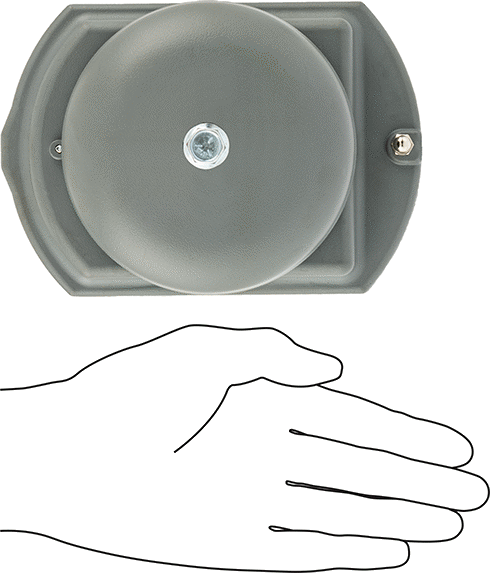

    Image of Product. Front orientation. Contains SizingReference. Bell, 120V AC, 4-1/4" Diameter.
    0000000 each
    5684T13
    In stock
    5684T13
    0000000 each
    Each
    In stock
    Audible Signal Type

    Bell

    Number of Wire Leads

    2

    Electrical Connection

    Wire Leads

    Voltage

    120V AC

    Current @ Voltage

    0.09 amp @ 120V AC

    Volume

    Control

    Fixed

    (Sound) @ Distance

    90 dB @ 10 ft.
    70 dB @ 100 ft.

    Sound Pattern

    Continuous

    Diameter

    4 1/4"

    Material

    Steel

    Fasteners Included

    No

    Mounting Holes

    Number of

    4

    Diameter

    1/4"

    Certification

    C-UL Listed, UL Listed

    Alert Type

    Audible Alarm

    Includes

    Mounting Plate

    Mounting Profile

    Surface

    Power Source

    Electric

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    853180.0040

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Related Product

    Bell Guard

    Surface mount using an outlet box. For outdoor bells, the outlet box is included.
