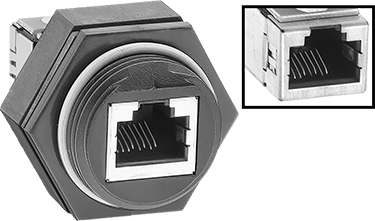

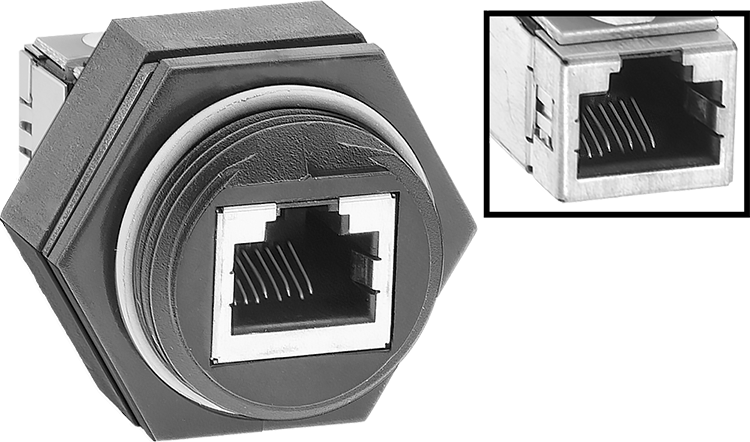

Wet-Location Data Cord
Screw-Together RJ45 Female RJ45 Female Adapter

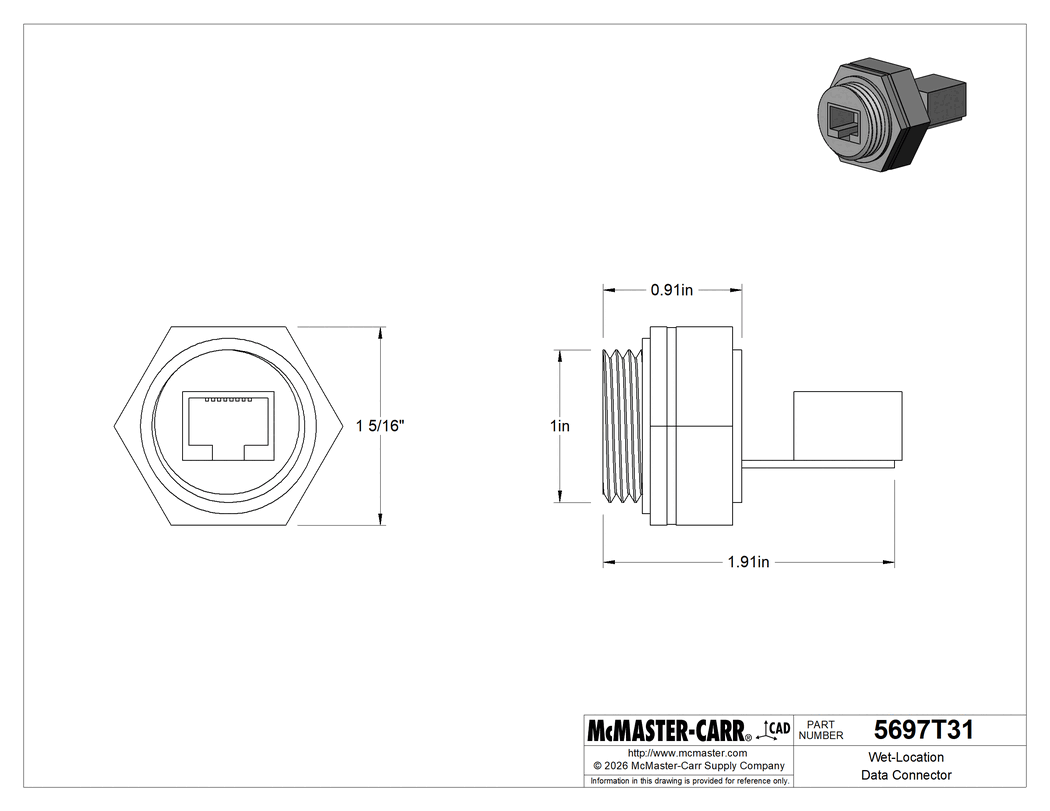

2-D PDF
000000 each
5697T31
In stock
5697T31
000000 each
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Connections | Screw-Together Female × Female Adapters |
Shielding | Shielded |
Electrical Connection | RJ45 |
For Panel Cutout Diameter | 1" |
Shield Type | Foil |
Ethernet Cable Category | 5e |
Transmission Frequency | 100 MHz |
Number of Wires | 8 |
Color | Black |
Housing Material | Plastic |
Enclosure Rating | IP67 |
Temperature Range | 0° F to 175° F |
Electrical Connection | RJ45 |
Environment | Dusty, Submersible, Wet |
Housing Thread Location | External |
Mounting Location | Panel |
Shape | Straight |
Signal Type | Data |
Country of Origin | Mexico |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 854442.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Use these connectors and cords to make Ethernet connections. Caps (sold separately) protect sockets and maintain the IP rating when not in use.
Shielded—Shielded adapters prevent electromagnetic interference (EMI) to minimize signal distortion.
IP67 Enclosure Rating—IP67 rated connectors and cords are protected against dust and temporary submersion when mated.
The information in this 3-D model is provided for reference only.
