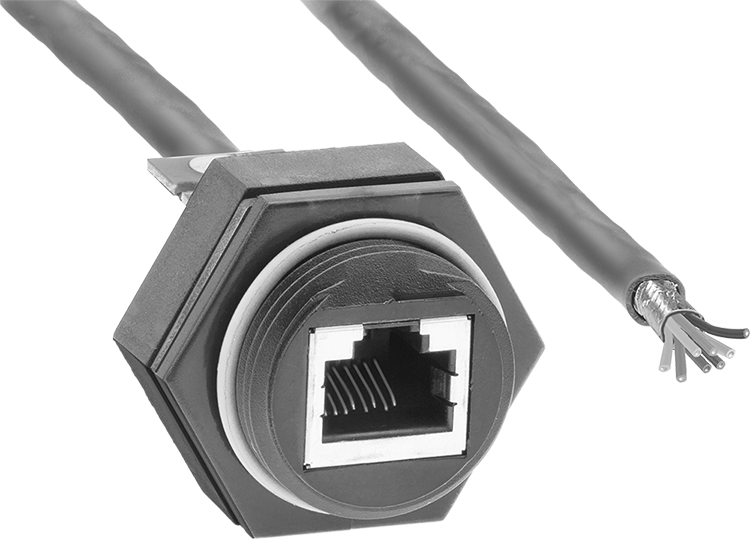

Wet-Location Data Cord
Screw-Together RJ45 Socket with Wire Leads

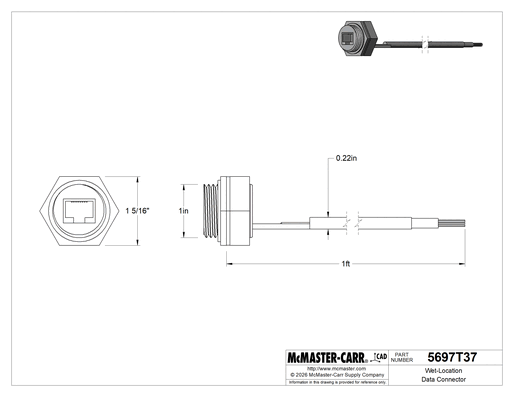

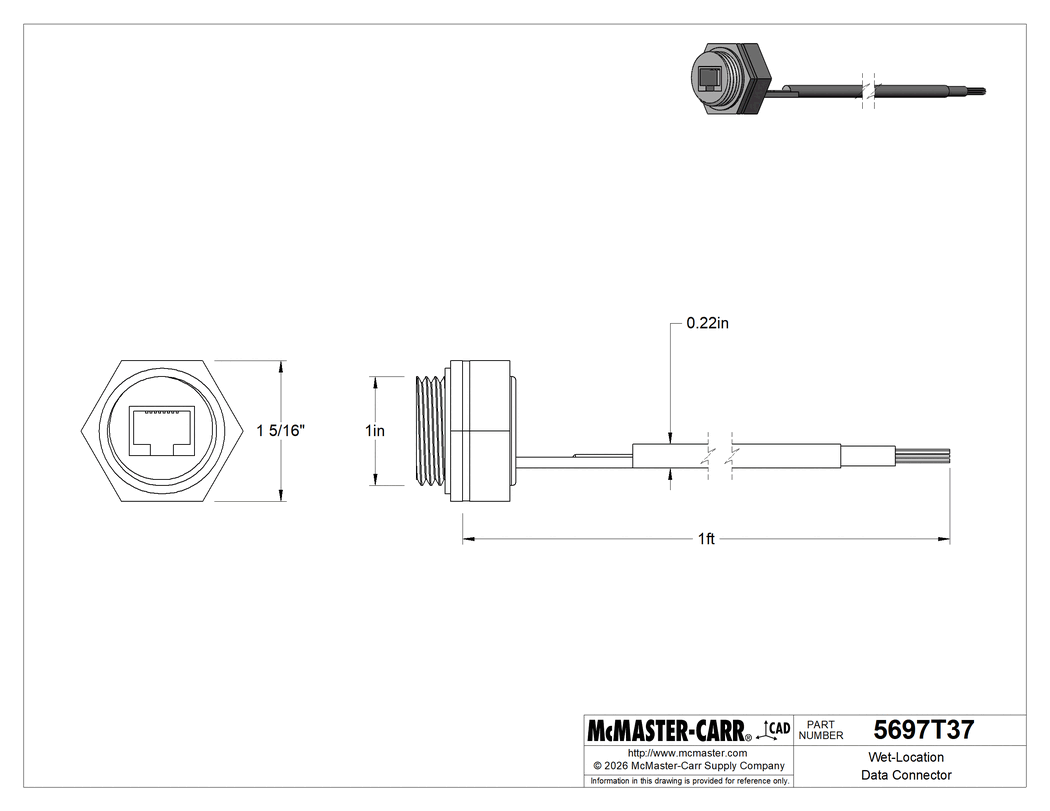

2-D PDF
000000 each
5697T37
In stock
5697T37
000000 each
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Socket | |
Electrical Connection | RJ45 |
End Shape | Straight |
Gender | Female |
Housing Connection Method | Screw Together |
Housing Thread Location | External |
Wire Connection | Wire Leads |
Ethernet Cable Category | 5e |
Shielding | Unshielded |
Length | 1 ft. |
For Panel Cutout Diameter | 1" |
American Wire Gauge (AWG) | 22 |
Cord | |
Insulation Material | Polyurethane Rubber |
OD | 0.2" |
Flexibility | Flexible |
Transmission Frequency | 100 MHz |
Number of Wires | 4 |
Color | Black |
Housing Material | Plastic |
Enclosure Rating | IP67 |
Temperature Range | 0° F to 175° F |
Cable Color | Black |
Environment | Dusty, Submersible, Wet |
Mounting Location | Panel |
Signal Type | Data |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 854442.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Use these cords to make Ethernet connections.
IP67 Enclosure Rating—IP67 rated cords are protected against dust and temporary submersion when mated.
The information in this 3-D model is provided for reference only.
