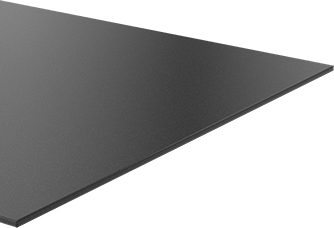

Recycled Slippery UHMW Polyethylene Sheet
Antistatic, 24" x 48", 1/4" Thick
Construction | Recycled Material |
Color | Black |
Thickness | 1/4" |
Thickness Tolerance | -0.02" to 0.02" |
Width | 24" |
Width Tolerance | -1/8" to 1/8" |
Length | 48" |
Length Tolerance | -1/8" to 1/8" |
Fabrication | Extruded |
Minimum Temperature | -235° F |
Maximum Temperature | 175° F |
Tensile Strength | 4,000 psi |
Impact Strength | No Break |
Surface Resistivity | 1× 10^8 ohm/sq. |
Flammability Rating | UL 94 HB |
Application | Multipurpose |
Backing Type | Plain |
Chemical Resistance | |
Excellent | Acetic Acid (White Vinegar), Acetone, Coolant, Diesel Fuel, Fuel Oil, Gasoline, Heating Oil, Hydraulic Fluid, Hydrochloric Acid, Hydrogen Peroxide, Isopropyl Alcohol, Kerosene, Lacquer Solvents, Methanol (Methyl Alcohol), Methyl Ethyl Ketone (MEK), Mineral Oil, Phosphoric Acid, Sodium Hydroxide (Caustic Soda), Sodium Hypochlorite (Bleach), Sulfuric Acid, Synthetic Oil, Vegetable Oil, Water |
Moderate | Chlorine |
Not Recommended | Nitric Acid |
Clarity | Opaque |
Coefficient of Friction | 0.15 to 0.3 |
Coefficient of Thermal Expansion | 1.1 × 10^-4 /°F |
Comparable To | Duravar, Lennite, Polystone, TIVAR |
Density | 0.034 lb/in³ |
Dielectric Strength | Not Rated |
Environment | Outdoor |
Flexibility | Flexible |
Flexural Modulus | 80,000 psi |
For Use Outdoors | Yes |
For Use With | Acetic Acid (White Vinegar), Acetone, Chlorine, Coolant, Diesel Fuel, Fuel Oil, Gasoline, Heating Oil, Hydraulic Fluid, Hydrochloric Acid, Hydrogen Peroxide, Isopropyl Alcohol, Kerosene, Lacquer Solvents, Methanol (Methyl Alcohol), Methyl Ethyl Ketone (MEK), Mineral Oil, Phosphoric Acid, Sodium Hydroxide (Caustic Soda), Sodium Hypochlorite (Bleach), Sulfuric Acid, Synthetic Oil, Vegetable Oil, Water |
Hardness | Durometer 60D |
Hardness Rating | Medium |
Material | UHMW Polyethylene |
Performance | Antistatic, Chemical Resistant, Flame Retardant, Static Control, Ultra Impact Resistant, Ultra Low Friction, Ultra-Low Temperature, UV Resistant, Wear Resistant |
Shape | Sheet |
Specifications Met | ASTM D4020 |
Texture | Smooth |
Maximum Water Absorption | 0.01% |
Tolerance Rating | Standard |
Warning Message | Physical and mechanical properties are not guaranteed. They are intended only as a basis for comparison and not for design purposes. |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (11/05/2025, 251 SVHC) Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 392010.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Additional Specifications |
Made with carbon black, these recycled UHMW sheets are a sustainable alternative to standard UHMW sheets in applications where static electricity is a concern, such as in conveying equipment and chute liners. They have a slippery surface that prevents sticking and binding. They also absorb shocks and won’t wear down from friction. Because of their low carbon footprint, these sheets can help you meet criteria for sustainability certifications, such as LEED and Envision. They can also help you comply with company environmental initiatives. These recycled UHMW sheets have lower material properties than those that are not recycled.

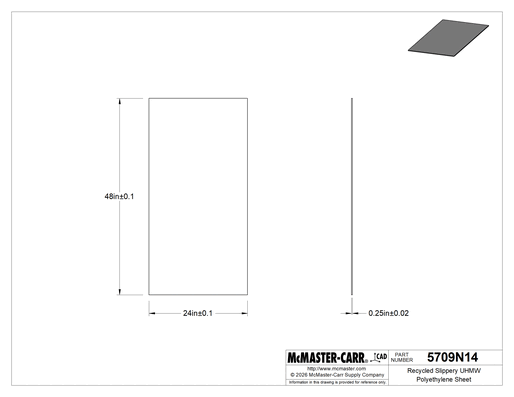

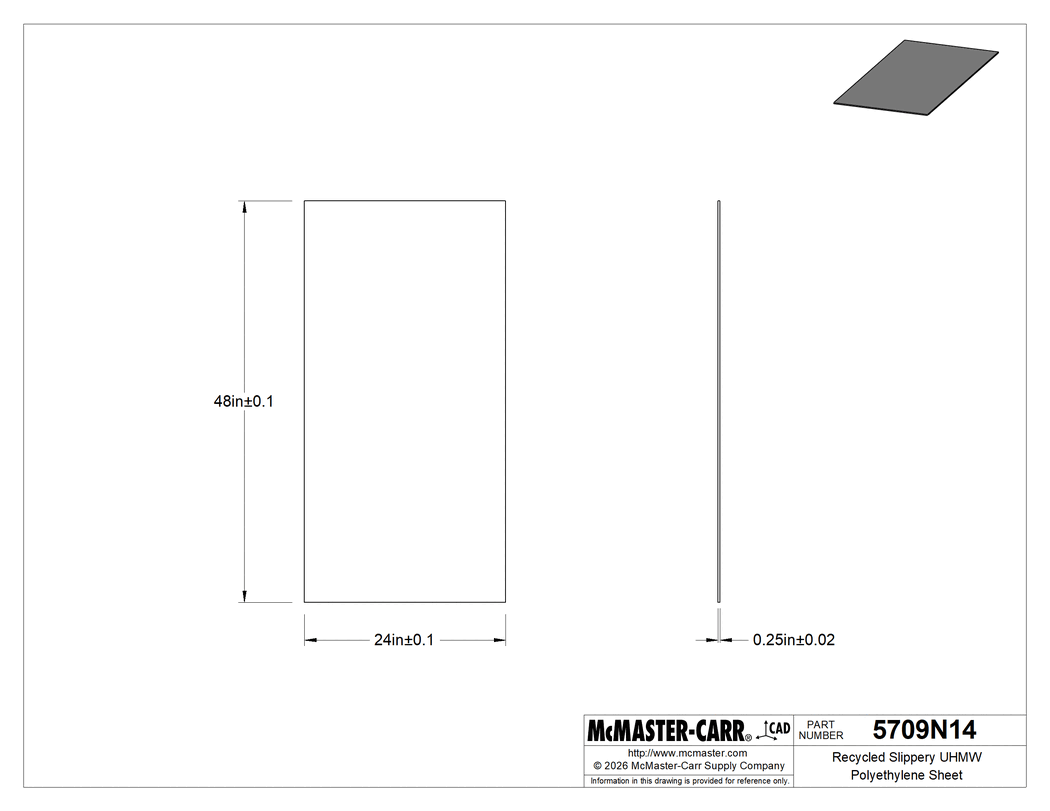

The information in this 3-D model is provided for reference only.
