    Number 1 Phillips Bit

    1/4" Hex Shank, 1" Overall Length

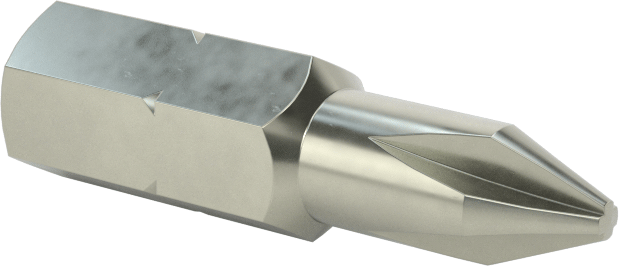

    Image of Product. Front orientation. Number 1 Phillips Bit, 1/4" Hex Shank, 1" Overall Length.

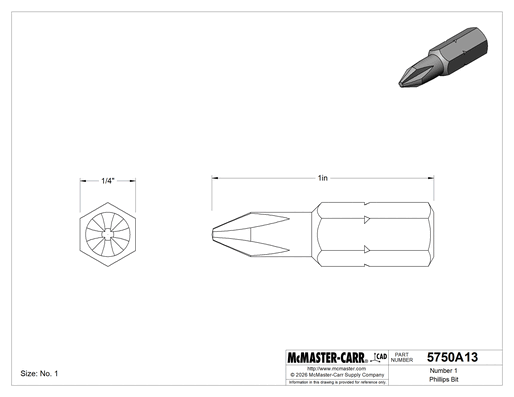

    Technical Drawing of Number 1 Phillips Bit, 1/4" Hex Shank, 1" Overall Length.

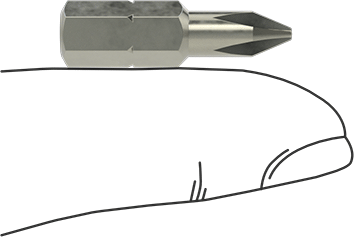

    Image of Product. Side1 orientation. Contains SizingReference. Number 1 Phillips Bit, 1/4" Hex Shank, 1" Overall Length.
    2-D PDF
    00000 each
    5750A13
    In stock
    5750A13
    00000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Driver Style

    Bit

    For Tool Type

    Hand Tools

    Hex Shank Size

    1/4"

    Shank Type

    Hex

    Drive Size

    No. 1

    For Screw Size

    No. 2, No. 3, No. 4

    Overall Length

    1"

    Material

    Steel

    For Drive Style

    Phillips

    Tip Style

    Straight

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    820790.7570

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    One of the most common drive styles for good reason. Phillips bits align easily with fasteners and deliver more torque than slotted bits.

    Hex Shank—Also known as insert bits, these snap into hand tools. If you want to use them with power tools, attach a bit adapter (not included).

    Steel—Best for dry environments, since moisture will cause these bits to rust.

    The information in this 3-D model is provided for reference only.
