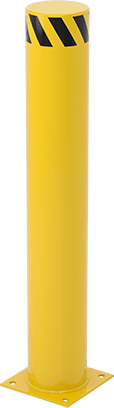

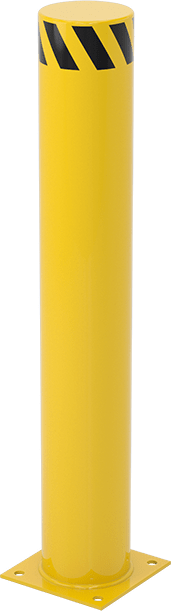

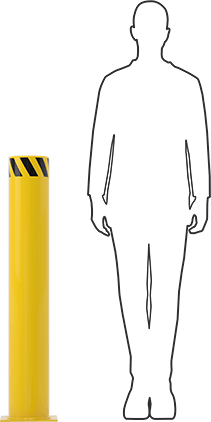

Bollard
Closed Top with Band, 42" High

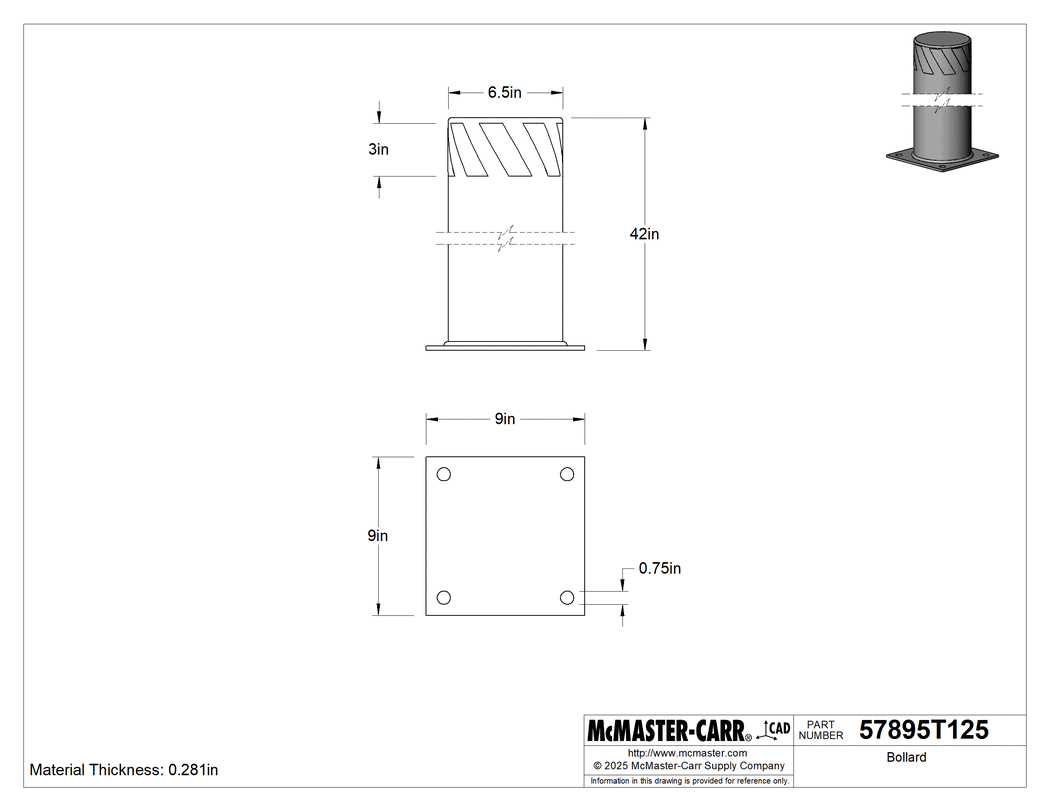

2-D PDF
0000000 each
57895T125
In stock
57895T125
0000000 each
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Top Type | Closed |
Number of Bands | 1 |
Mount Type | Bolt In |
Height | 42" |
Diameter | 6 1/2" |
Material Thickness | 9/32" |
Material | Powder-Coated Steel |
Color | Yellow |
Band | |
Height | 3" |
Color | Black |
Pattern | Striped |

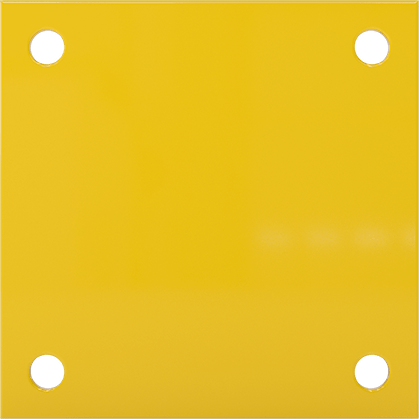

Mounting Holes | |
Number of | 4 |
Diameter | 3/4" |
Mounting Hardware | Fasteners Not Included |
Mounting Plate Length | 9" |
Mounting Plate Width | 9" |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 732690.8695 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Closed Top—Closed-top bollards have a welded top. Bollards with an eyelet have a welded eye for attaching chain.
The information in this 3-D model is provided for reference only.
