    Magnetic Rod Filter

    with Guide Rods, Round, 11.2 lbs. Magnetic Pull, 8" OD

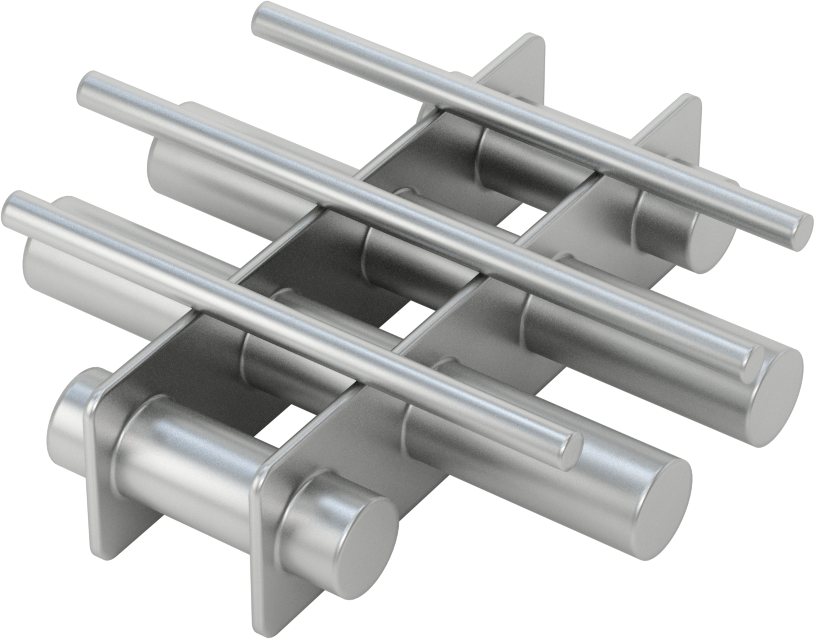

    Image of Product. Bottom orientation. Magnetic Rod Filter, with Guide Rods, Round, 11.2 lbs. Magnetic Pull, 8" OD.

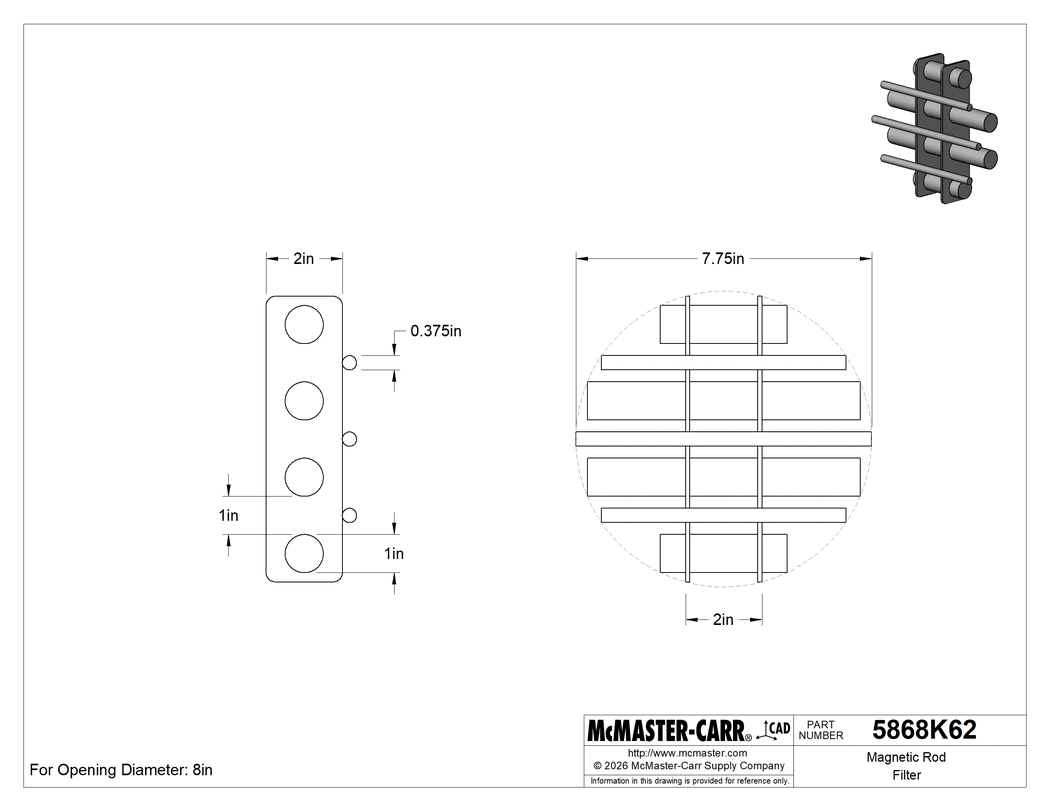

    Technical Drawing of Magnetic Rod Filter, with Guide Rods, Round, 11.2 lbs. Magnetic Pull, 8" OD.

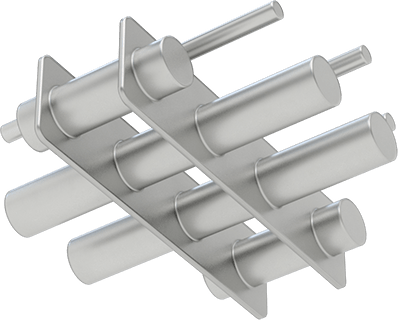

    Image of Product. Top orientation. Magnetic Rod Filter, with Guide Rods, Round, 11.2 lbs. Magnetic Pull, 8" OD.

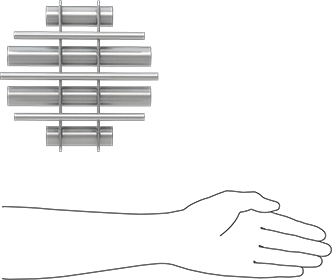

    Image of Product. Side1 orientation. Contains SizingReference. Magnetic Rod Filter, with Guide Rods, Round, 11.2 lbs. Magnetic Pull, 8" OD.
    2-D PDF
    0000000 each
    5868K62
    In stock
    5868K62
    0000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Shape

    Rod

    Magnetic Filter Type

    With Guide Rods

    For Opening Shape

    Round

    Maximum Magnetic Pull

    11.2 lbf

    For Opening Diameter

    8"

    OD

    7 3/4"

    Number of Magnetic Rods

    4

    Rod Diameter

    1"

    Spacing Between Rods

    1"

    Magnet Material

    Neodymium

    Frame Material

    316 Stainless Steel

    Rod Material

    316 Stainless Steel

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (11/07/2024, 242 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    850511.9000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    The guide rods direct flow to the magnetic rods. These filters are helpful in removing dry ferrous metal scrap and particles from fine powder and low-flow applications. Mount inside gravity hoppers, chutes, drawers, housings, and surge-and-catch bins. Magnets are sealed in the magnetic rod.

    11.2 lbf Maximum Magnetic Pull—Filters with a maximum magnetic pull of 11.2 lbf catch metal filings, shavings, residue from metal wear, and other small particles.
