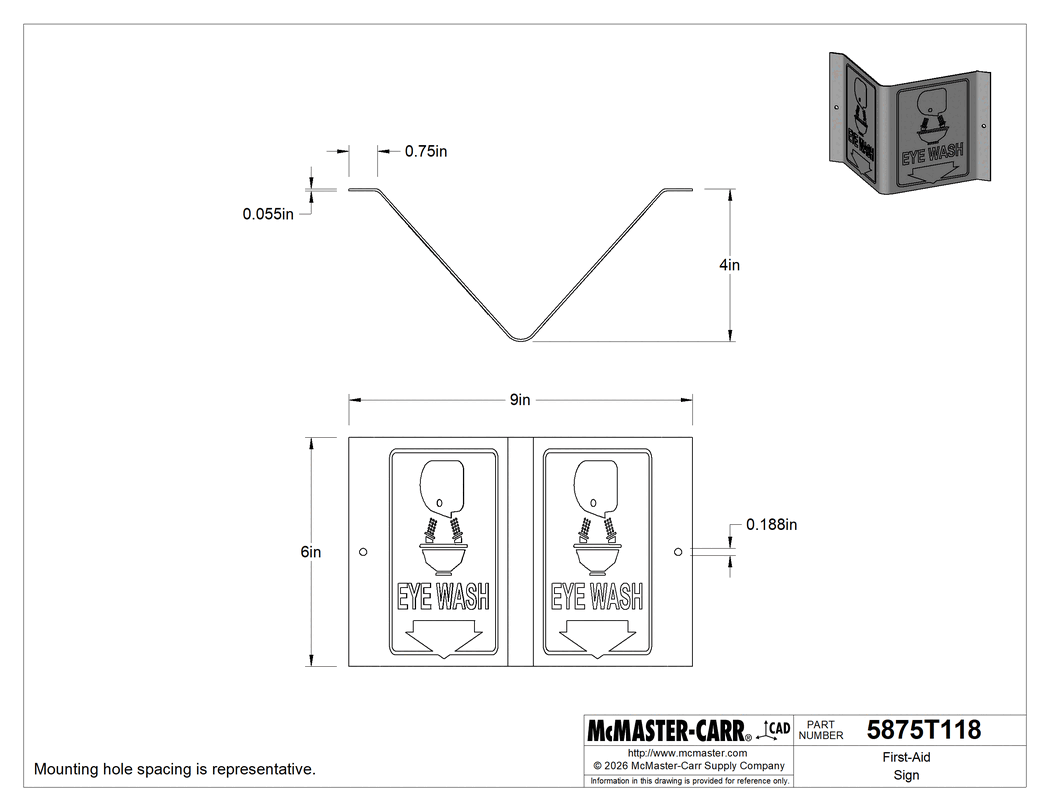

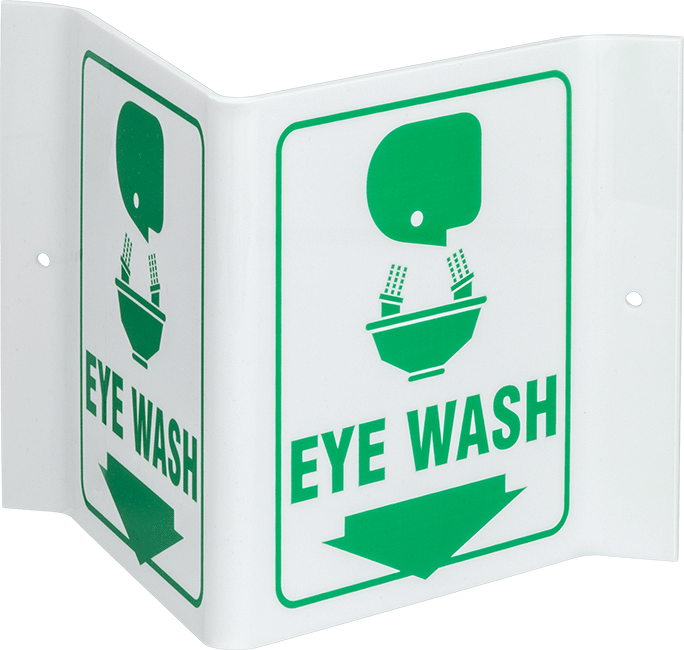

First-Aid Sign
Flange-Mount, Eye Wash and Arrow Message, 6" High, 9" Wide
2-D PDF
000000 each
5875T118
In stock
5875T118
1-5 each000000
6 or more000000
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Message | Arrow, Eye Wash |
Language | English |
Flange-Mount Sign View | Three Way |
Mount Type | Mounting Hole |
Visibility | Standard |
Material | Acrylic Plastic |
Arrow Direction | Down |
Message Location | Front |
Height | 6" |
Width | 9" |
Depth | 4" |
Thickness | 0.055" |
Flange Width | 3/4" |
Mounting | |
Fasteners Included | Yes |
Number of Holes | 2 |
Hole Diameter | 3/16" |
Color | White |
Message Color | Green |
Message Contains | Text and Symbols |
Border Color | Green |
Message Type | First Aid |
Shape | Rectangle |
Country of Origin | Mexico |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 491199.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
These signs project from the wall so the same message is viewable from multiple angles.
Three-Way View—Three-way view signs form a triangle when mounted, so the message is viewable from the front as well as the left and right.
The information in this 3-D model is provided for reference only.
