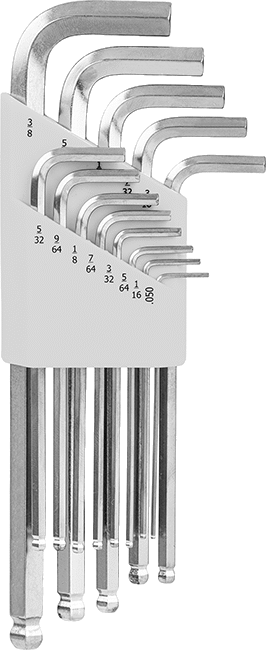

    Angled-Drive Ball-Tip Hex L-Key Set

    13 Pieces, Chrome Plated Alloy Steel

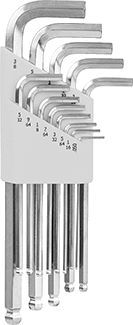

    Image of Product. Front orientation. Angled-Drive Ball-Tip Hex L-Key Set, 13 Pieces, Chrome Plated Alloy Steel.
    000000 each
    5888A42
    In stock
    5888A42
    000000 each
    Each
    In stock
    Tip Style

    Ball

    Driver Style

    L-Key

    Material

    Alloy Steel

    Drive Style

    Hex

    Number of Pieces

    13

    Drive Size

    0.050", 1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 3/16", 7/32", 1/4", 5/16", 3/8"

    Length

    Overall

    2 7/8" to 7 3/16"

    Relative

    Long

    Ball

    Location

    Single Ball

    Shape

    Round

    Maximum Access Angle

    25°

    Color

    Silver

    Finish

    Chrome Plated

    Container Type

    Plastic Caddy

    Driver Type

    Standard

    Includes

    .050" Hex L-Key (2 7/8" O'all Lg.)
    1/16" Hex L-Key (3 1/16" O'all Lg.)
    5/64" Hex L-Key (3 1/4" O'all Lg.)
    3/32" Hex L-Key (3 1/2" O'all Lg.)
    7/64" Hex L-Key (3 11/16" O'all Lg.)
    1/8" Hex L-Key (3 15/16" O'all Lg.)
    9/64" Hex L-Key (4 3/16" O'all Lg.)
    5/32" Hex L-Key (4 3/8" O'all Lg.)
    3/16" Hex L-Key (4 3/4" O'all Lg.)
    7/32" Hex L-Key (5 1/8" O'all Lg.)
    1/4" Hex L-Key (5 7/8" O'all Lg.)
    5/16" Hex L-Key (6 3/8" O'all Lg.)
    3/8" Hex L-Key (7 3/16" O'all Lg.)

    Performance

    Angled Drive

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    820411.0060

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Reach corners and tight spaces with the sizes you use most. These L-keys turn screws at an angle when you can’t access them head on. They have a ball tip on the long leg that engages the drive with less contact than a straight tip. Ball tips are handy for corners and tightly-packed areas, such as control panels and junction boxes. However, they don’t grip as tightly as straight tips, and may strip the drive of the fastener if you crank them too hard. These L-keys are precision manufactured to tight tolerances.

    Alloy Steel—These L-keys handle high torque without bending or breaking, so they’ll last a lifetime.

    Long—The most common option, these L-keys have a balanced length for everyday reach and torque.
