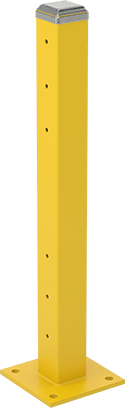

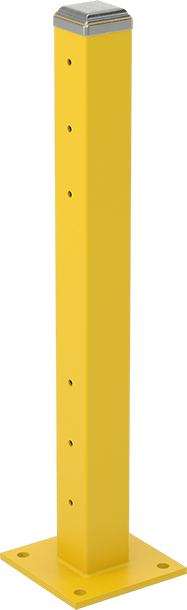

Inline Post for Double Three-Rib Guardrail

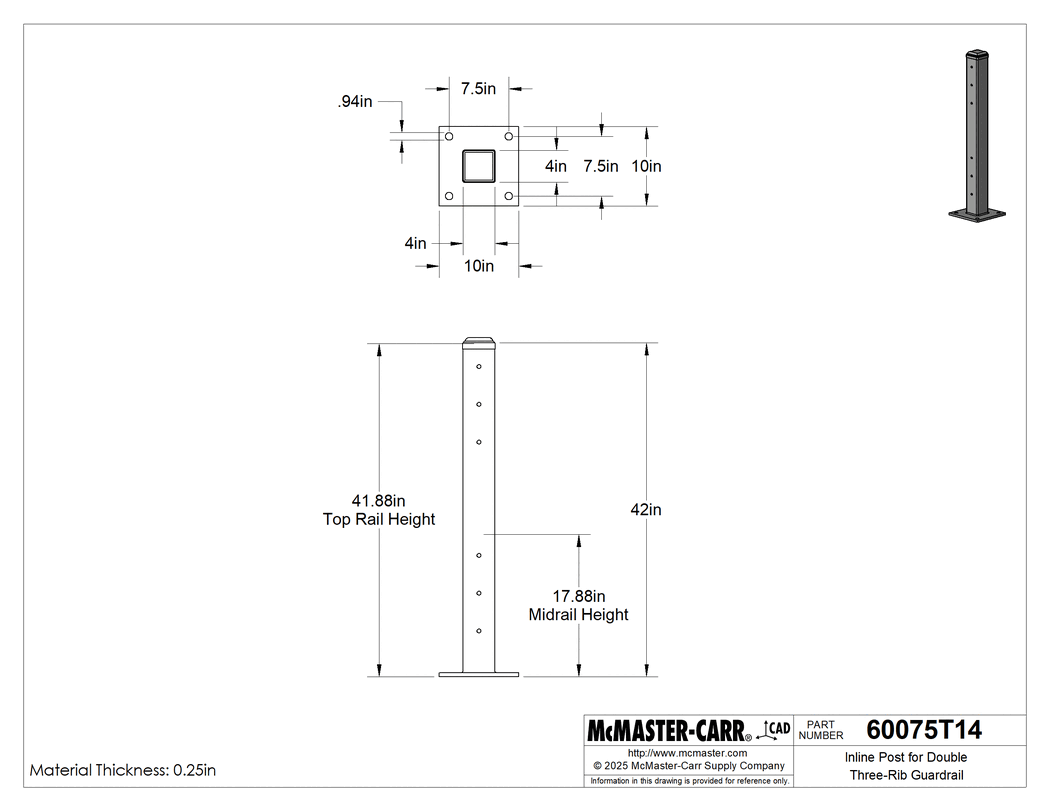

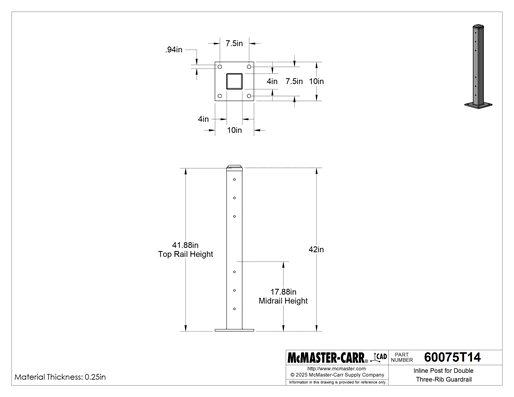

2-D PDF
0000000 each
60075T14
In stock
60075T14
0000000 each
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Safety Barrier Component | Post |
For Rail Type | Three Rib |
Post Style | Inline |
Number of Rails Accepted | 2 |

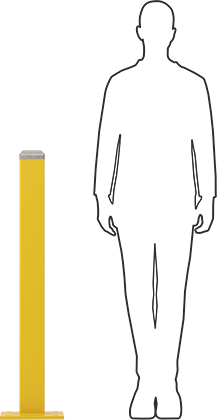

Height | 42" |
Width | 4" |
Depth | 4" |
Material Thickness | 1/4" |
Material | Powder-Coated Steel |
Color | Yellow |
Mounting Holes | |
Number of | 4 |
Diameter | 15/16" |
Center-to-Center Length | 7.5" |
Center-to-Center Width | 7.5" |
Mounting Plate | |
Length | 10" |
Width | 10" |
Mounting Hardware | Connecting Fasteners Included |
Middle Rail Height | 17 7/8" |
Performance | Build-Your-Own |
Top Rail Height | 41 7/8" |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 732690.8695 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Related Products | |
Combine rails, posts, and gates to make a custom guardrail system.
