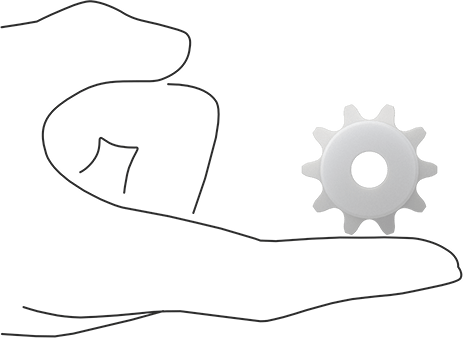

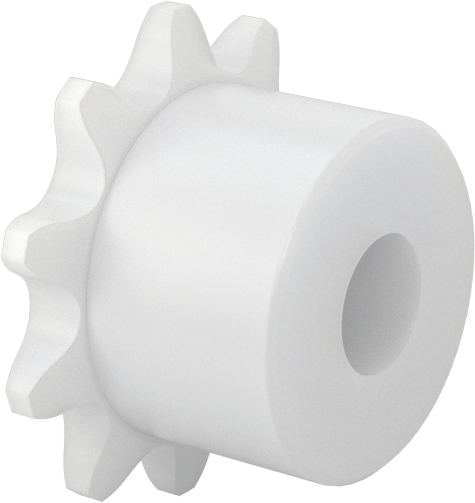

Plastic Sprocket
for Single-Strand ANSI 35 Roller Chain, 10 Teeth
For Chain Type | Roller |
For Strand Type | Single |
For Roller Chain | |
Trade Number | 35 |
Standard | ANSI |
Pitch | 3/8" |
Number of Teeth | 10 |
OD | 1 3/8" |
Bore Type | Plain |
For Shaft Diameter | 3/8" |
For Maximum Shaft Diameter | 7/16" |
Material | Nylon |
For Shaft Type | Round |
Hub Diameter | 31/32" |
ID | 3/8" |
Overall Width | 3/4" |
Performance | Quiet Drive, Lightweight |
Sprocket Type | Drive |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 848390.1000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Quiet-running, lightweight, and naturally rust resistant. Choose these sprockets for noise-sensitive areas, designs with weight constraints, and machines that require frequent washdowns. Their teeth mesh with your roller chain to smoothly transmit power. All are made in the U.S.
Plain Bore—Plain bore sprockets give you options—machine a custom bore, weld, or press-fit them in place. They're sized to the minimum shaft diameter listed and are machinable up to the maximum.
Align and center
Reduce friction

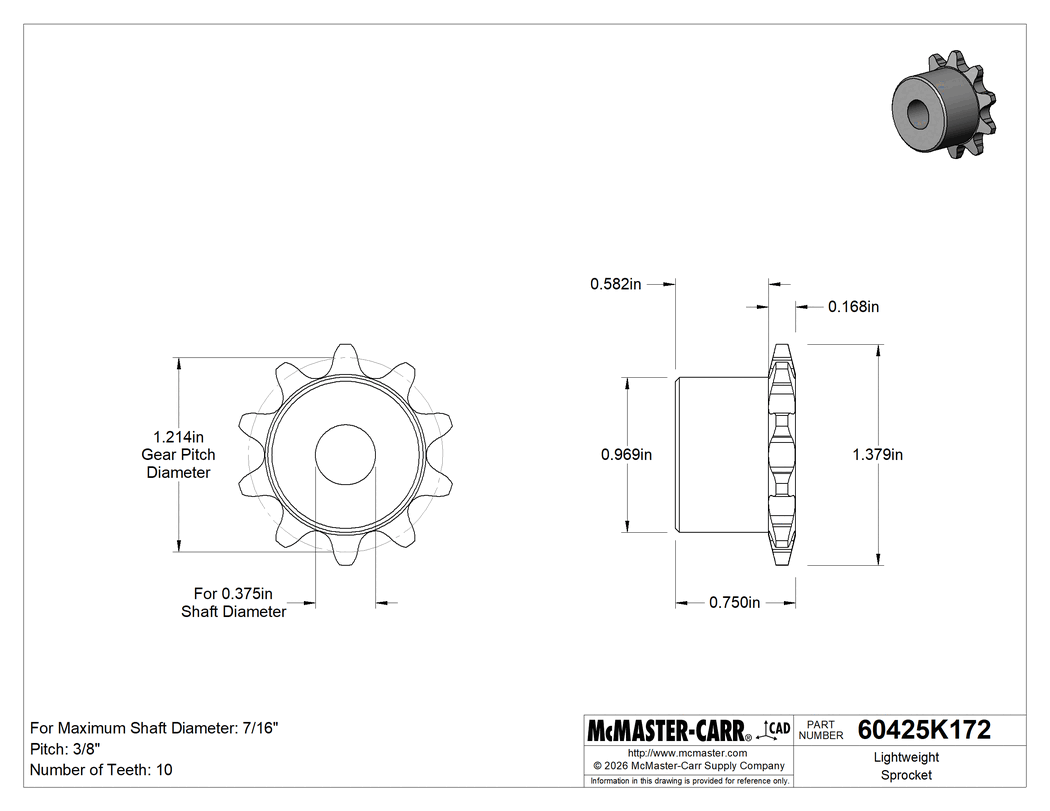

The information in this 3-D model is provided for reference only.
