    Iron Knob

    Six Arm Grip, 1/2" Unthreaded Through Hole, 1-1/4" Deep

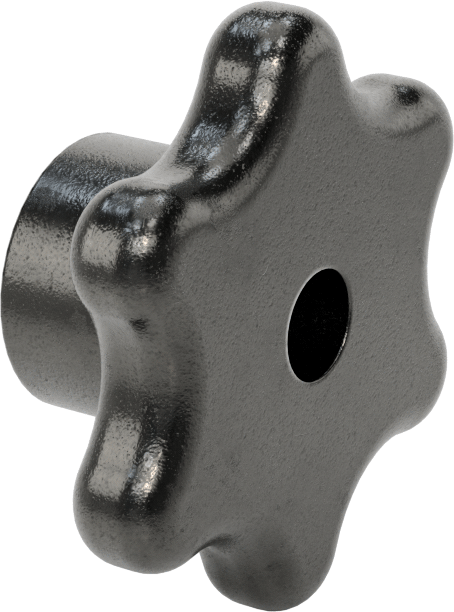

    Image of Product. Front orientation. Iron Knob, Six Arm Grip, 1/2" Unthreaded Through Hole, 1-1/4" Deep.

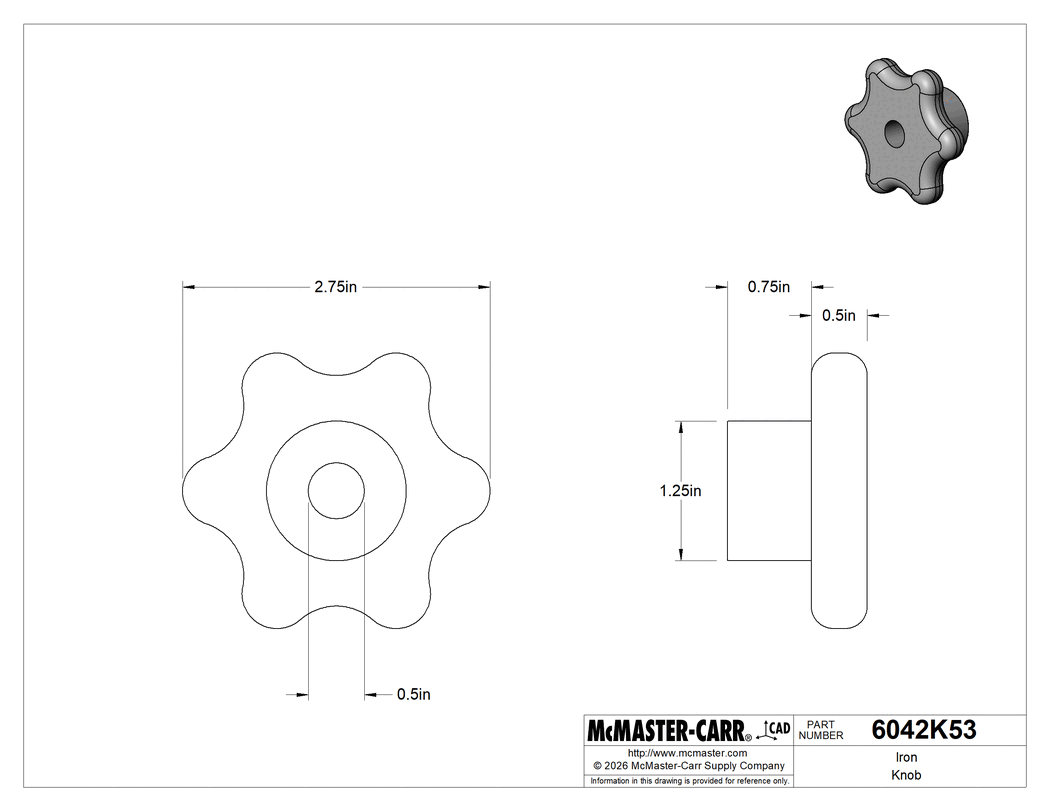

    Technical Drawing of Iron Knob, Six Arm Grip, 1/2" Unthreaded Through Hole, 1-1/4" Deep.
    Image of Product. Back orientation. Iron Knob, Six Arm Grip, 1/2" Unthreaded Through Hole, 1-1/4" Deep.
    Image of Product. Back orientation. Iron Knob, Six Arm Grip, 1/2" Unthreaded Through Hole, 1-1/4" Deep.
    Image of Product. Side1 orientation. Contains SizingReference. Iron Knob, Six Arm Grip, 1/2" Unthreaded Through Hole, 1-1/4" Deep.
    2-D PDF
    000000 each
    6042K53
    In stock
    6042K53
    1-9 each000000
    10 or more000000
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Style

    7

    Grip Style

    Six Arm

    Material

    Iron

    Hole

    Diameter

    1/2"

    Depth

    1 1/4"

    Head

    Diameter

    2 3/4"

    Height

    1/2"

    Hub

    Diameter

    1 1/4"

    Height

    3/4"

    Hole Shape

    Round

    Mount Type

    Unthreaded Through Hole

    System of Measurement

    Inch

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    848790.0080

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Create custom threads or secure with a set screw to provide a firm grip to position, tighten, and hold fixtures, equipment, and machinery. Long shafts can pass through these knobs for mounting versatility.

    The information in this 3-D model is provided for reference only.
