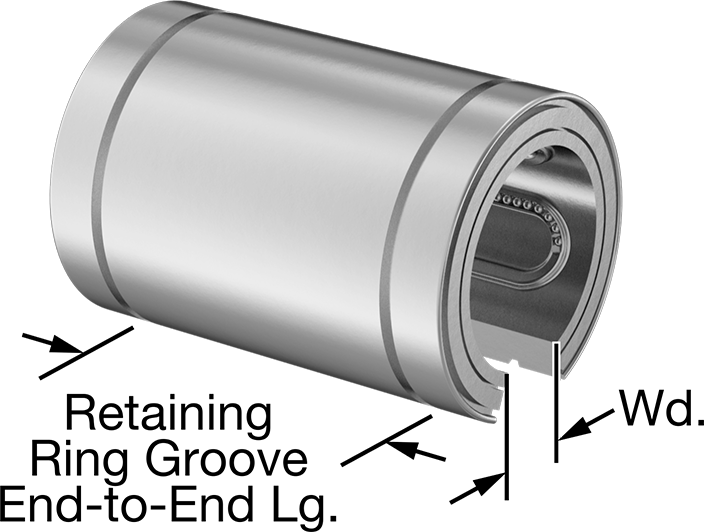

Fixed Alignment Ball Linear Bearing
for Support Rail Shafts, 30 mm Shaft Diameter
Alignment Style | Fixed |
Material | |
Bearing | Steel |
Ball | Steel |
For Shaft Diameter | 30 mm |
Overall Length | 68 mm |
OD | 47 mm |
OD Tolerance | -0.011 mm to 0 mm |
Width | 12.5 mm |
For Housing ID | 47.000 mm to 47.025 mm |
With Retaining Ring Grooves | Yes |
Retaining Ring Groove End-to-End Length | 52.1 mm |
With End Seals | Yes |
Load Capacity | |
Dynamic | 350 lb. |
Static | 615 lb. |
Temperature | |
Minimum | -4° F |
Maximum | 176° F |
For Shaft Material | Stainless Steel, Steel |
Bearing Type | Ball |
For Minimum Shaft Hardness | |
Steel | Rockwell C60 |
Stainless Steel | Rockwell C56 |
For Shaft Type | Round with Support Rail |
ID | 30.000 mm |
ID Tolerance | -0.001 mm to 0.011 mm |
Linear Bearing Component | Bearing |
Lubrication | Required |
Country of Origin | Japan |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/23/2024, 240 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 848210.5012 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Related Product |
Mount these bearings on a support rail shaft for applications requiring maximum rigidity. All have end seals to keep lubricant in and dirt out. To install, slide bearings into a housing (not included). For bearings with retaining ring grooves, secure with two retaining rings (sold individually).
Fixed Alignment—Fixed-alignment bearings are for use where shaft misalignment is unlikely.

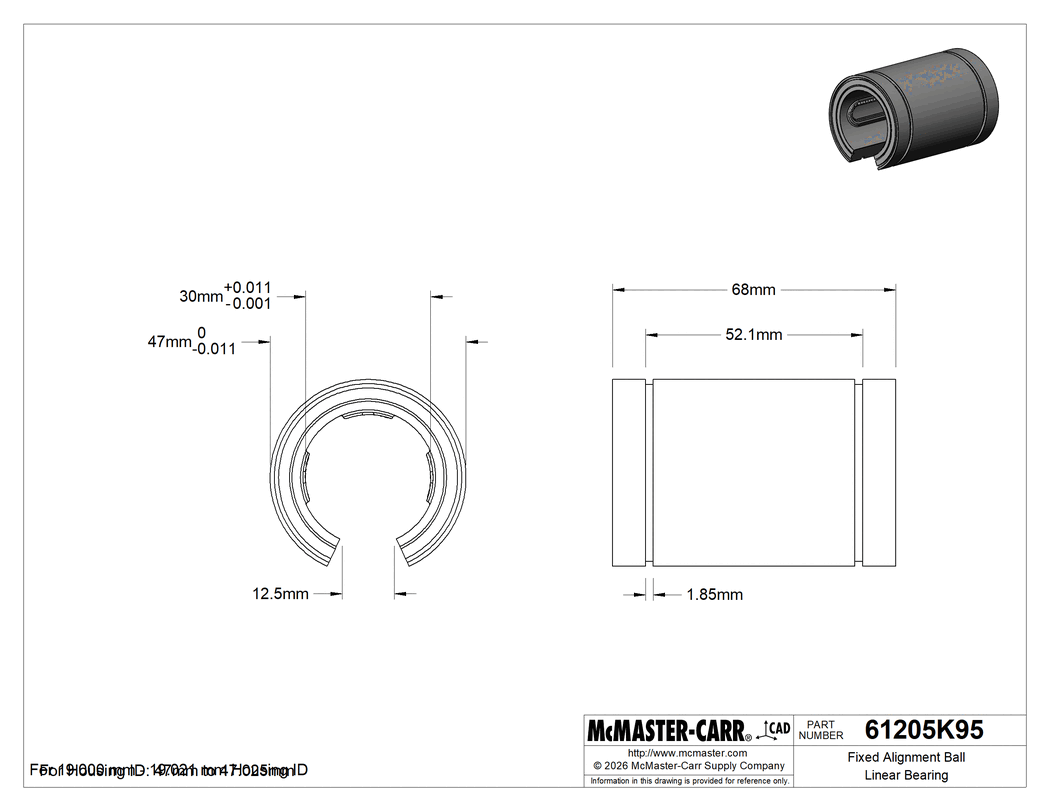

The information in this 3-D model is provided for reference only.
