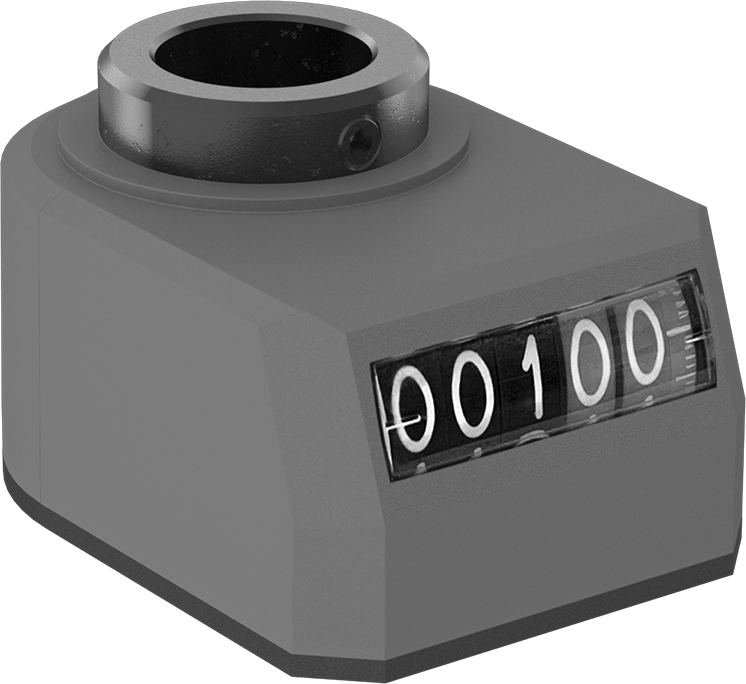

Mechanical Position Indicator
for 3/4" Diameter Vertical Shaft, 150 Maximum Counts Per Minute
For Shaft Orientation | Vertical |
For Shaft Diameter | 3/4" |
Insert Material | Black-Oxide Steel |
Number of Decimal Places | 2 |
Number of Digits | 5 |
Maximum Counts per Minute | 150 |
Counts per Revolution | 0.1 |
Resettable | No |
Counting Direction (Shaft Rotation Direction) | Up (Clockwise), Down (Counterclockwise) |
Overall | |
Height | 2.6" |
Width | 1.9" |
Depth | 1.5" |
Housing Material | Plastic |
Color | Orange |
Temperature Range | 32° F to 175° F |
Display Type | Analog |
Mount Type | Press On |
Country of Origin | Italy |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/23/2024, 240 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant with Exemptions |
RoHS Exemptions | 6(a)-I, 6(c) |
Schedule B Number | 848790.0080 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Tracking your machine component as it moves along a rotating threaded shaft, such as a spindle or lead screw, these indicators help you adjust machinery with speed and precision. They save time and prevent errors on process lines that you constantly adapt to suit different products, such as packaging lines.
Use the display number as either a reference point or as a true measure of distance. To measure distance, match the indicator’s count per revolution to your lead screw’s threads per inch or thread pitch.
Choose between indicators that count up when your lead screw rotates clockwise or counterclockwise.

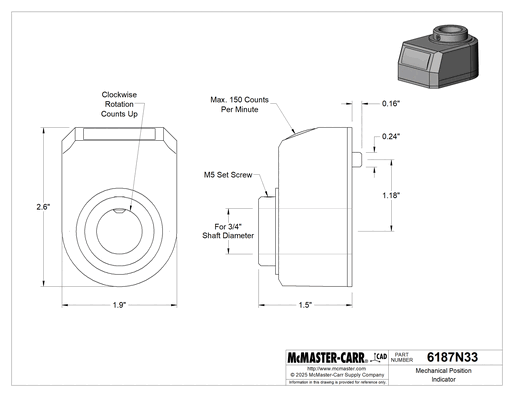

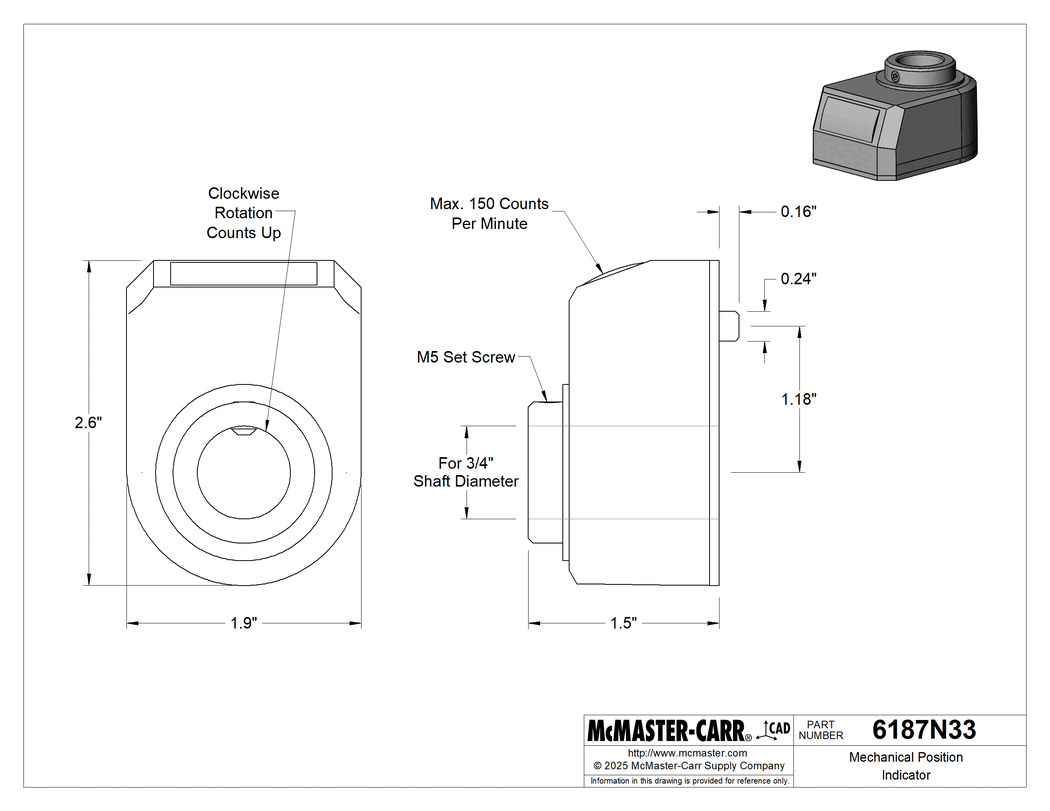

The information in this 3-D model is provided for reference only.
