    Air Flow Control Valve

    1/8" Push-to-Connect Female Inlet Gender

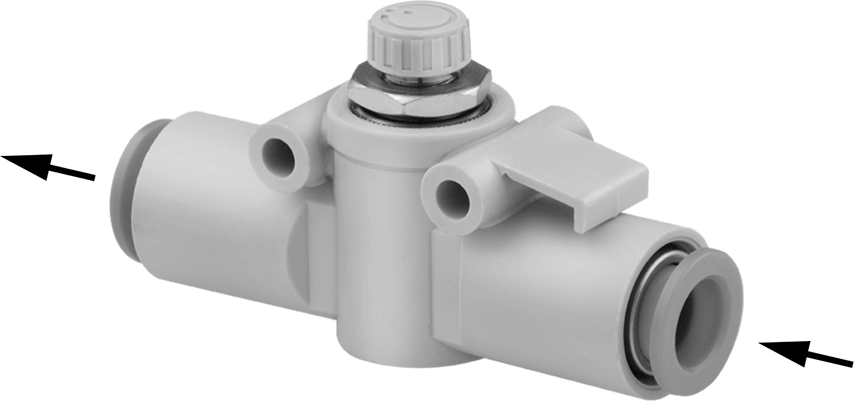

    Image of Product. Front orientation. Contains Annotated. Air Flow Control Valve, 1/8" Push-to-Connect Female Inlet Gender.

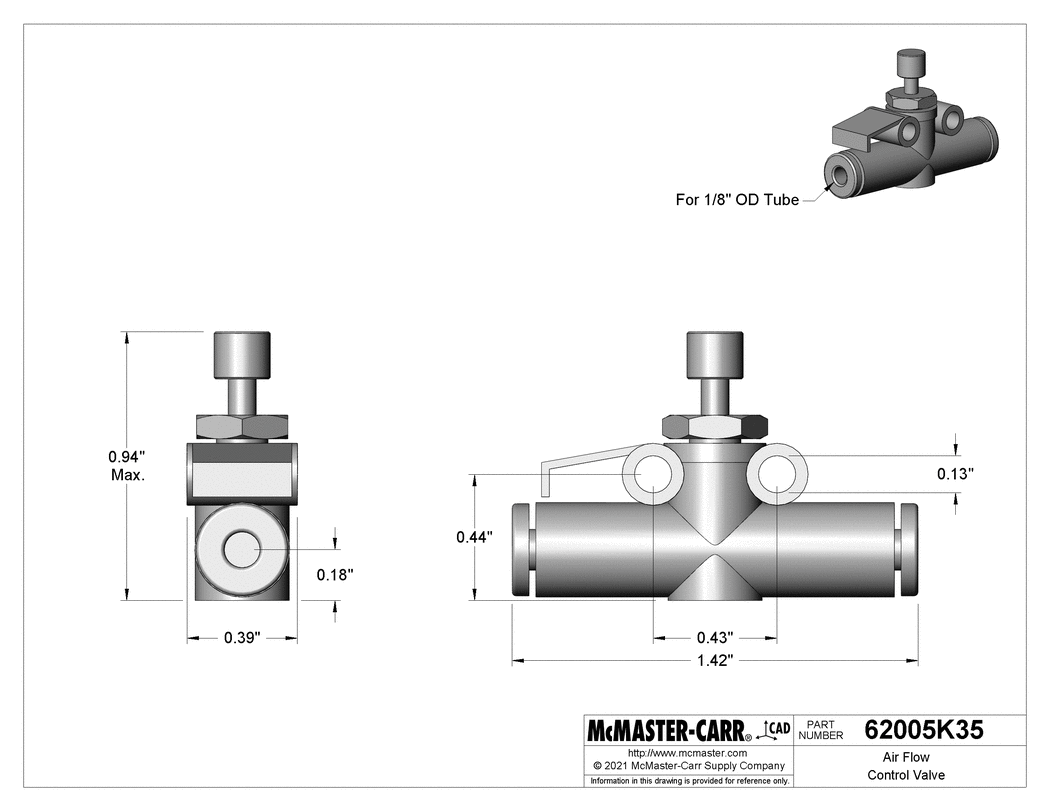

    Technical Drawing of Air Flow Control Valve, 1/8" Push-to-Connect Female Inlet Gender.
    Image of Specification. Front orientation. Contains Annotated. Air Flow Control Valve, 1/8" Push-to-Connect Female Inlet Gender.

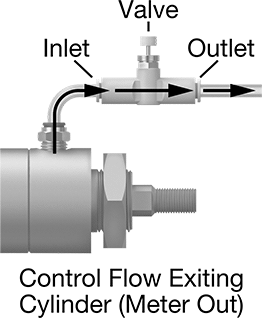

    Image of Specification. ISO Designation (Meter Out). Front orientation. Contains Annotated. Air Flow Control Valve, 1/8" Push-to-Connect Female Inlet Gender.
    ISO Designation (Meter Out)
    Image of Specification. ISO Designation (Meter In). Front orientation. Air Flow Control Valve, 1/8" Push-to-Connect Female Inlet Gender.
    ISO Designation (Meter In)
    2-D PDF
    000000 each
    62005K35
    In stock
    62005K35
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Inlet

    Connection Type

    Push to Connect

    For Tube OD

    1/8"

    Gender

    Female

    Outlet

    Connection

    Push to Connect

    For Tube OD

    1/8"

    Gender

    Female

    Body Material

    Polybutylene

    Flow Coefficient (Cv)

    0.1

    Flow Rate @ 73 psi

    Minimum

    0 scfm

    Maximum

    4 scfm

    Maximum Pressure

    145 psi

    Temperature Range

    25° F to 140° F

    Flow Adjustment Mechanism

    Dial

    Flow Control Location (ISO Designation)

    Exiting Cylinder (Meter Out), Entering Cylinder (Meter In)

    Actuation

    Pressure

    Fitting Material

    Polybutylene

    Flow Control Type

    One Direction

    For Use With

    Compressed Air

    Number of Ports

    Flow

    2

    Inlet

    1

    Outlet

    1

    Overall

    Length

    1 7/16"

    Width

    3/8"

    Height

    15/16"

    Shape

    Straight

    Valve Function

    Flow Adjustment

    Valve Type

    Needle

    Country of Origin

    Japan

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant with Exemptions

    RoHS Exemptions

    6(c)

    Schedule B Number

    848180.9015

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Designed to be mounted inline, these valves can be installed in an easy-to-reach location along your line. Flow control valves control the speed of air-powered equipment by adjusting the volume of airflow. They control flow in one direction as air moves from the inlet to the outlet. Air flows freely in the opposite direction. Typically, valves are installed to control flow as it exits the cylinder (meter out), but they may also be installed to control flow as it enters the cylinder (meter in). For the best control, mount them as close to the cylinder as possible to minimize the length of tubing or piping between the cylinder and the valve.

    Flow coefficient (Cv) is a measurement that indicates how much airflow can pass through a valve. When selecting between valves with the same port size, choose the valve with the higher flow coefficient to ensure it provides enough airflow to operate your system.

    Push-to-Connect Inlet Connection—Valves with push-to-connect ports are for use with plastic or soft metal tubing. Insert tubing into the port.

    Push-to-Connect Outlet Connection—Valves with push-to-connect ports are for use with plastic or soft metal tubing. Insert tubing into the port.

    The information in this 3-D model is provided for reference only.
