    Strut Channel Handle

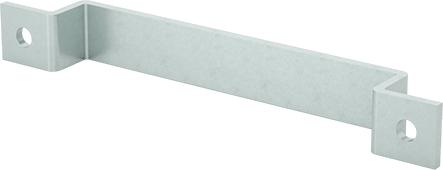

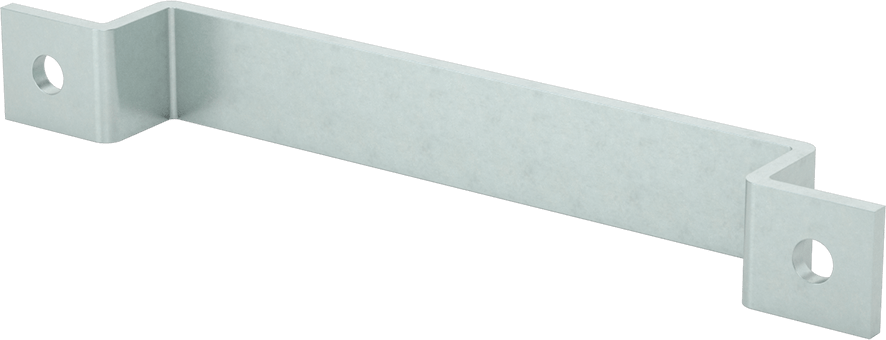

    Image of Product. Front orientation. Strut Channel Handle.

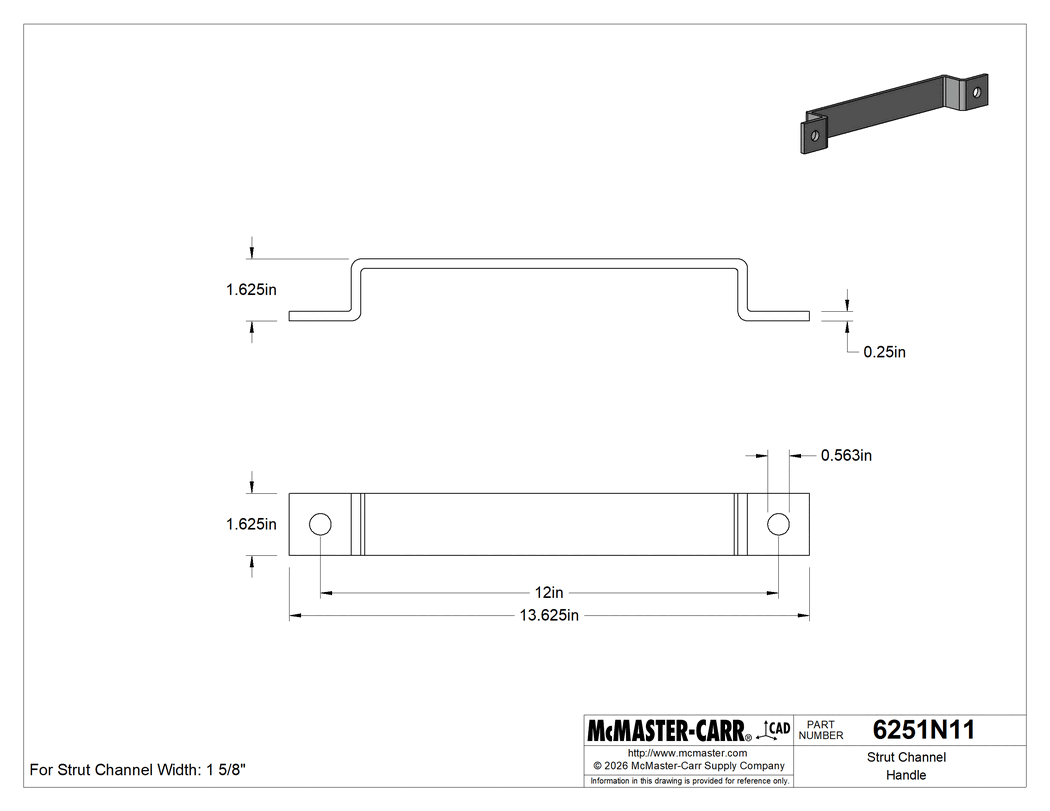

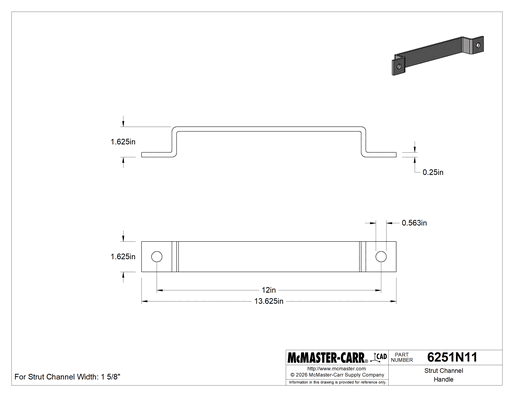

    Technical Drawing of Strut Channel Handle.
    Image of Product. Back orientation. Strut Channel Handle.
    Image of Product. Side1 orientation. Contains SizingReference. Strut Channel Handle.
    2-D PDF
    000000 each
    6251N11
    In stock
    6251N11
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Framing Type

    Strut Channel

    Strut Channel Framing Component

    Handle

    For Channel Width

    1 5/8"

    Material

    Zinc-Plated Steel

    Length

    13 5/8"

    Height

    1 5/8"

    Mounting Hole

    Diameter

    9/16"

    Number of

    2

    Mounting Fasteners Included

    No

    For Strut Channel Type

    Standard, Stacked, Low Profile, High Profile

    System of Measurement

    Inch

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    730890.9090

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Often used as rungs to create custom ladders, position these handles exactly where you need them and bolt into place.

    Zinc-Plated Steel—Strong and durable with a zinc plating that protects from occasional exposure to moisture.

    The information in this 3-D model is provided for reference only.
